Teac A-6010GSL - Service Data

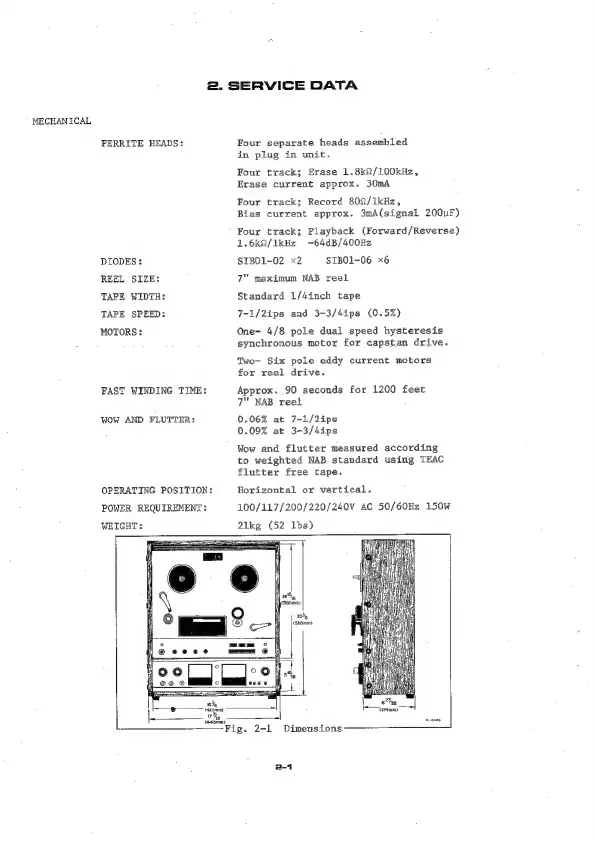

2. SERVICE DATA
MECHANICAL
FERRITE HEADS:
DIODES:
REEL SIZE:
TAPE WIDTH:
TAPE SPEED:
MOTORS :
FAST WINDING TIME:
wow AND FLUTTER:
OPERATING POSITION:
POWER REQUIREMENT:
WEIGHT =
Four separate heads assembled
in plug in unit.
Four track; Erase 1.8k2/100kHz,
Erase current approx. 30mA
Four track; Record 802/1kHz,
Bias current approx. 3mA(signal 200uF)
Four track; Playback (Forward/Reverse)
1.6k2/1kHz ~64dB/400Hz
SIBO1-02 x2 SIBO1-06 x6
7" maximum NAB reel
Standard 1/4inch tape
7-1/2ips and 3-3/4ips (0.5%)
One- 4/8 pole dual speed hysteresis
synchronous motor for capstan drive.
Two- Six pole eddy current motors
for reel drive.
Approx. 90 seconds for 1200 feet
7" NAB reel
0.06% at 7-1/2ips
0.09% at 3-3/4ips
Wow and flutter measured according
to weighted NAB standard using TEAC
flutter free tape.
Horizontal or vertical.
100/117/200/220/240V AC 50/60Hz 150W
2Qlkg (52 1bs)
