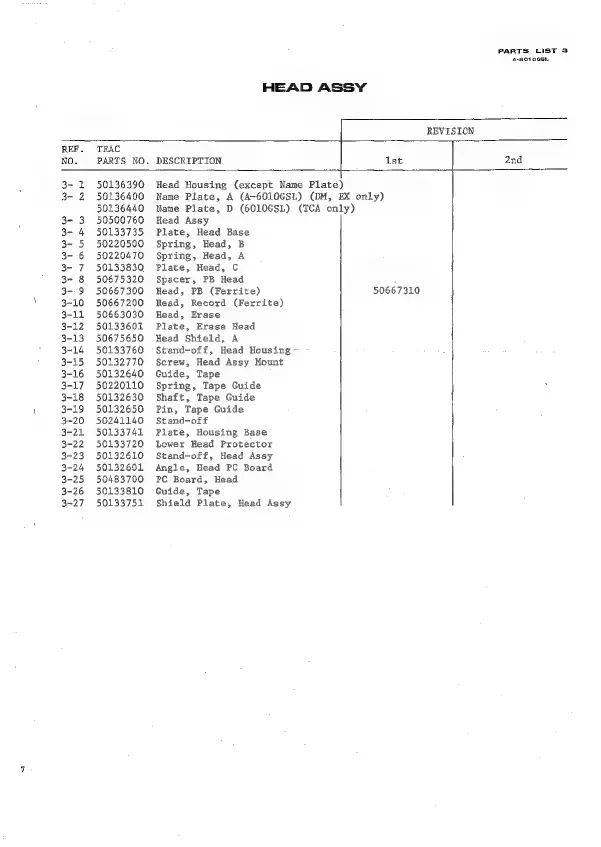

Teac A-6010GSL - Page 40

HEAD ASSY
PARTS LIST 3
A-6o10c6L.
REVISION
REF.
NO.
TEAC
PARTS NO. DESCRIPTION
lst
2nd
3-21
Be
wv
ce
3-
3-
34
35
WCHURUSwW
3-10
3-11
3-12
3-13
3-14
3-15
3-16
3-17
3-18
3-19
3+20
3-21
3-22
3-23
3-24
3-25
3-26
3427
50136390
50136400
50136440
50500760
50133735
50220500
50220470
50133830
50675320
50667300
50667200
50663030
50133601
50675650
50133760
50132770
50132640
50220110
50132630
50132650
50241140
50133741
50133720
50132610
50132601
50483700
50133810
50133751
Head Housing (except Name Plate)
Name Plate, A (A-6010GSL) (DM, EX only)
Name Plate, D (6010GSL) (TCA only)
Head Assy
Plate, Head Base
Spring, Head, B
Spring, Head, A
Plate, Head, C
Spacer, PB Head
Head, PB (Ferrite)
Head, Record (Ferrite)
Head, Erase
Plate, Erase Head
Head Shield, A
Stand-off, Head Housing
Screw, Head Assy Mount
Guide, Tape
Spring, Tape Guide
Shaft, Tape Guide
Pin, Tape Guide
Stand-off
Plate, Housing Base
Lower Head Protector
Stand-off, Head Assy
Angle, Head PC Board
PC Board, Head
Guide, Tape
Shield Plate, Head Assy
50667310
