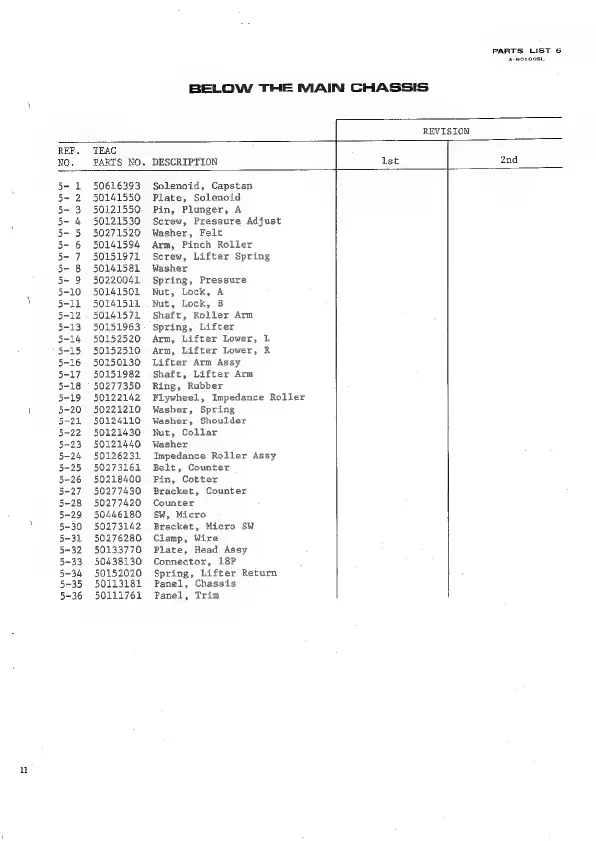

PARTS LIST S
a-6010csL
BELOW THE MAIN CHASSIS
REVISION
TEAC
PARTS NO. DESCRIPTION
ist
2nd
50616393
50141550
50121550
50121530
50271520
50141594
50151971
50141581
50220041
50141501
50141511
50141574
50151963
50152520
50152510
50150130
50151982
50277350
50122142
50221210
50124110
50121430
50121440
50126231
50273161
50218400
50277430
50277420
50446180
50273142
50276280
50133770
50438130
50152020
50113181
50111761
Solenoid, Capstan
Plate, Solenoid
Pin, Plunger, A
Screw, Pressure Adjust
Washer, Felt
Arm, Pinch Roller
Screw, Lifter Spring
Washer
Spring, Pressure
Nut, Lock, A
Nut, Lock, B
Shaft, Roller Arm
Spring, Lifter
Arm, Lifter Lower, L
Arm, Lifter Lower, R
Lifter Arm Assy
Shaft, Lifter Arm
Ring, Rubber
Flywheel, Impedance Roller
Washer, Spring
Washer, Shoulder
Nut, Collar
Washer
Impedance Roller Assy
Belt, Counter
Pin, Cotter
Bracket, Counter
Counter
SW, Micro
Bracket, Micro SW
Clamp, Wire
Plate, Head Assy
Connector, 18P
Spring, Lifter Return
Panel, Chassis
Panel, Trim
