13

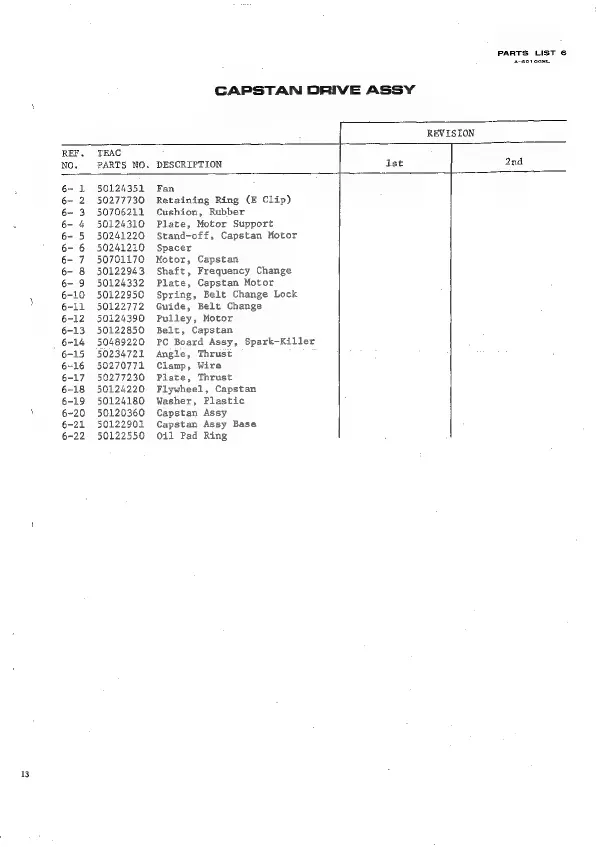

CAPSTAN DRIVE ASSY
PARTS LIST 6
A-Go10GsL
REVISION
TEAC
PARTS NO.
DESCRIPTION
ist
2nd
50124351
50277730
50706211
50124310
50241220
50241210
50701170
50122943
50124332
50122950
50122772
50124390
50122850
50489220
50234721
50270771
50277230
50124220
50124180
50120360
50122901
50122550
Fan
Retaining Ring (E Clip)
Cushion, Rubber
Plate, Motor Support
Stand-off, Capstan Motor
Spacer
Motor, Capstan
Shaft, Frequency Change
Plate, Capstan Motor
Spring, Belt Change Lock
Guide, Belt Change
Pulley, Motor
Belt, Capstan
PC Board Assy, Spark-Killer
Angle, Thrust
Clamp, Wire
Plate, Thrust
Flywheel, Capstan
Washer, Plastic
Capstan Assy
Capstan Assy Base
Oil Pad Ring
