Teac A-6010GSL - Page 52

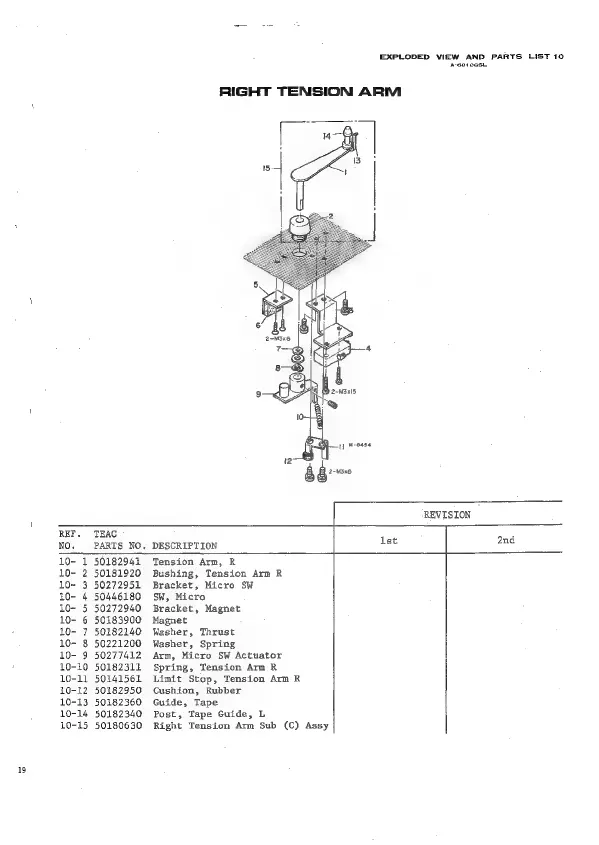

EXPLODED VIEW AND PARTS LIST 10
A-e010GSL
RIGHT TENSION ARM
to
12
8 ge
REVISION
REF. TEAC
NO. PARTS NO, DESCRIPTION Ist _
10- 1 50182941 Tension Arm, R
10- 2 50181920 Bushing, Tension Arm R
10- 3 50272951 Bracket, Micro SW
10- 4 50446180 SW, Micro
LO- 5 50272940 Bracket, Magnet
10- 6 50183900 Magnet
10- 7 50182140 Washer, Thrust
8
10- 8 50221200 Washer, Spring
10- 9 50277412 Arm, Micro SW Actuator
10-10 50182311 Spring, Tension Arm R
10-11 50141561 Limit Stop, Tension Arm R
10-12 50182950 Cushion, Rubber
10-13 50182360 Guide, Tape
10-14 50182340 Post, Tape Guide, L
10-15 50180630 Right Tension Arm Sub (C) Assy
