Teac A-6010GSL - Page 54

21

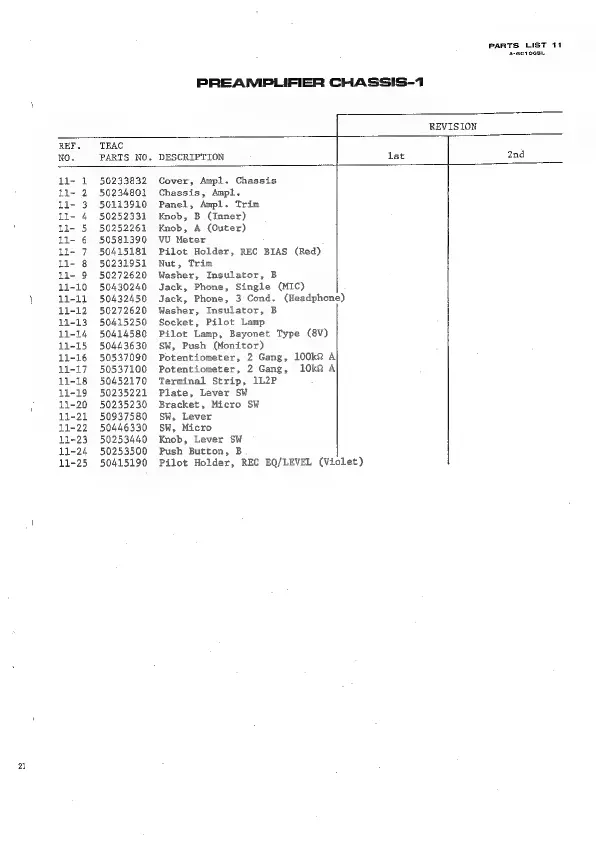

PREAMPLIFIER CHASSIS-1
PARTS LIST 1t
a-6010651.
REVISION
REF.
NO.
TEAC
PARTS NO.
DESCRIPTION Ist
2nd
11-
Il-
11-
11-
11-
1l-
ll-
li-
ll-
11-10
11-11
11-12
11-13
11-14
11-15
11-16
11-17
11-18
11-19
11-20
11-21
11-22
11-23
11-24
11-25
WRINAURWNHE
50233832
50234801
50113910
50252331
50252261
50581390
50415181
50231951
50272620
50430240
50432450
50272620
50415250
50414580
50443630
50537090
50537100
50452170
50235221
50235230
50937580
50446330
50253440
50253500
50415190
Cover, Ampl. Chassis
Chassis, Ampl.
Panel, Ampl. Trim
Knob, B (Inner)
Knob, A (Outer)
VU Meter
Pilot Holder, REC BIAS (Red)
Nut, Trim
Washer, Insulator, B
Jack, Phone, Single (MIC)
Jack, Phone, 3 Cond. (Headphone)
Washer, Insulator, B
Socket, Pilot Lamp
Pilot Lamp, Bayonet Type (8V)
SW, Push (Monitor)
Potentiometer, 2 Gang, 100k2 A
Potentiometer, 2 Gang, 10k2 A
Terminal Strip, 1L2P
Plate, Lever SW
Bracket, Micro SW
SW, Lever
SW, Micro
Knob, Lever SW
Push Button, B
Pilot Holder, REC EQ/LEVEL (Violet)
