Teac A-6010GSL - Bias Oscillator

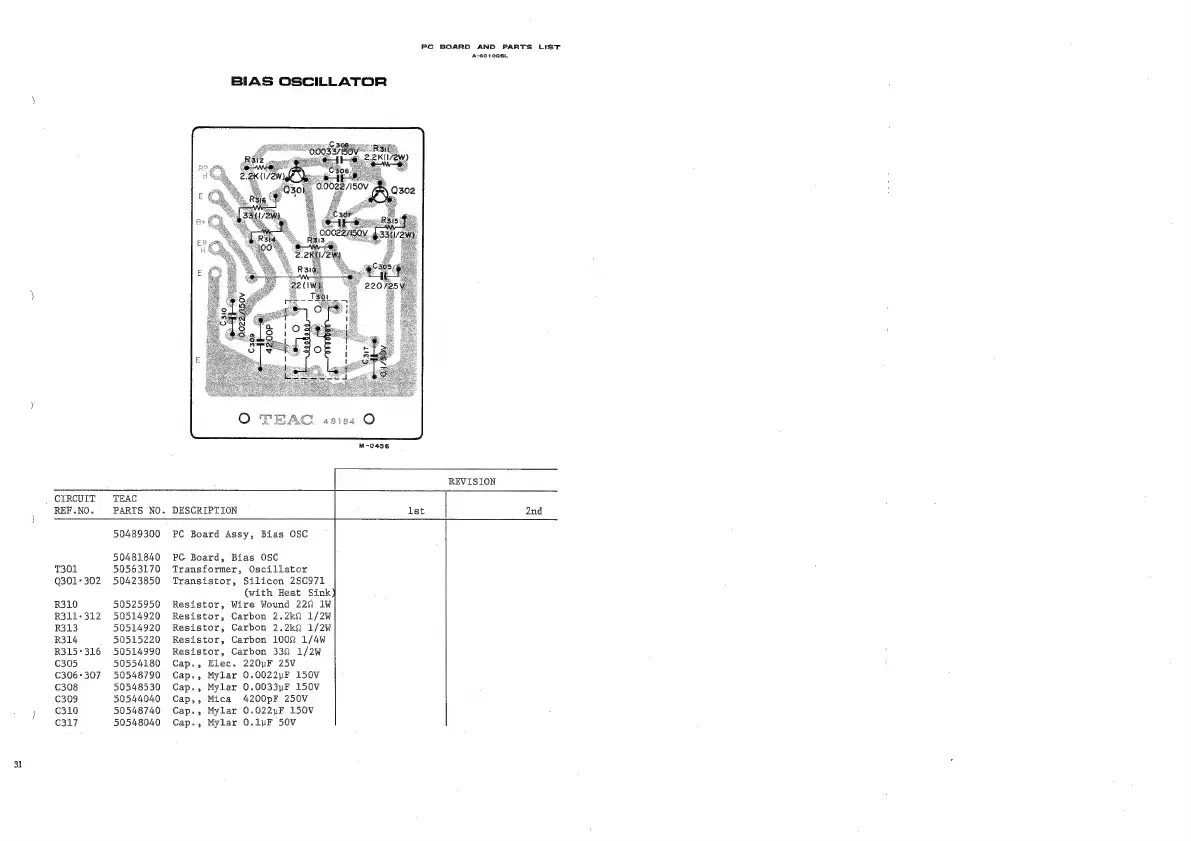

PCG BOARD AND PARTS LIST
A-eo1oast
BIAS OSCILLATOR
O FEAC «sia O
M-0456
REVISION
CIRCUIT TEAC
REF .NO. PARTS NO. DESCRIPTION ist 2nd
50489300 PC Board Assy, Bias OSC
50481840 PC Board, Bias OSC
T301 50563170 Transformer, Oscillator
Q301°302 50423850 Transistor, Silicon 2SC971
(with Heat Sink
R310 50525950 Resistor, Wire Wound 222 1W
R311-312 50514920 Resistor, Carbon 2.2kQ 1/2W
R313 50514920 Resistor, Carbon 2.2kQ 1/2W
R314 50515220 Resistor, Carbon 1002 1/4W
R315°316 50514990 Resistor, Carbon 332 1/2W
C305 50554180 Cap., Elec. 220uF 25V
C306-307 50548790 Cap., Mylar 0.0022uF 150V
C308 50548530 Cap., Mylar 0.0033uF 150V
C309 50544040 Cap,, Mica 4200pF 250V
c310 50548740 Cap., Mylar 0.022yF 150V
317 50548040 Cap., Mylar 0.1uF 50V
