REMOVAL OF REEL MOTOR ASSEMBLY
1. Disconnect the 4 motor wires from
terminals and release wire harness
straps.
2. Loosen 2 set screws (hex head) in
Brake drum (A) and 2 in the Reel
Turntable assembly (F). Lift off
these parts.
3. Remove 4 screws securing the Brake
Assembly (D) to the motor. Carefully
lift off the Brake Retainer (B) with
its 2 wires still connected to the
Brake Solenoid (C).
4. Remove 4 screws securing Reel Motor (E)
to chassis through the front panel.
NOTE
Reel motor assemblies are mirror
images of each other; these as¬
semblies are not interchangeable.

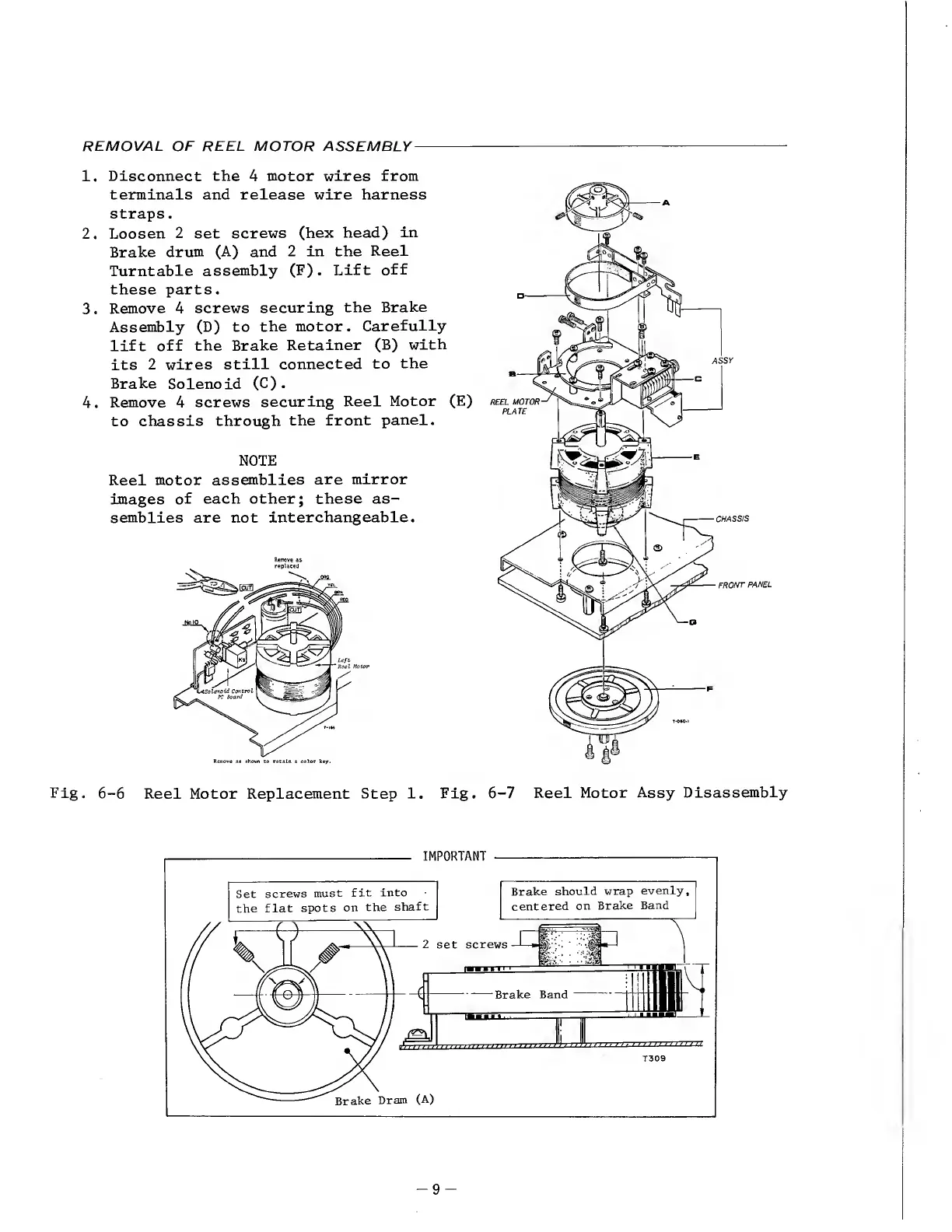

Fig. 6-6 Reel Motor Replacement Step 1. Fig. 6-7 Reel Motor Assy Disassembly
