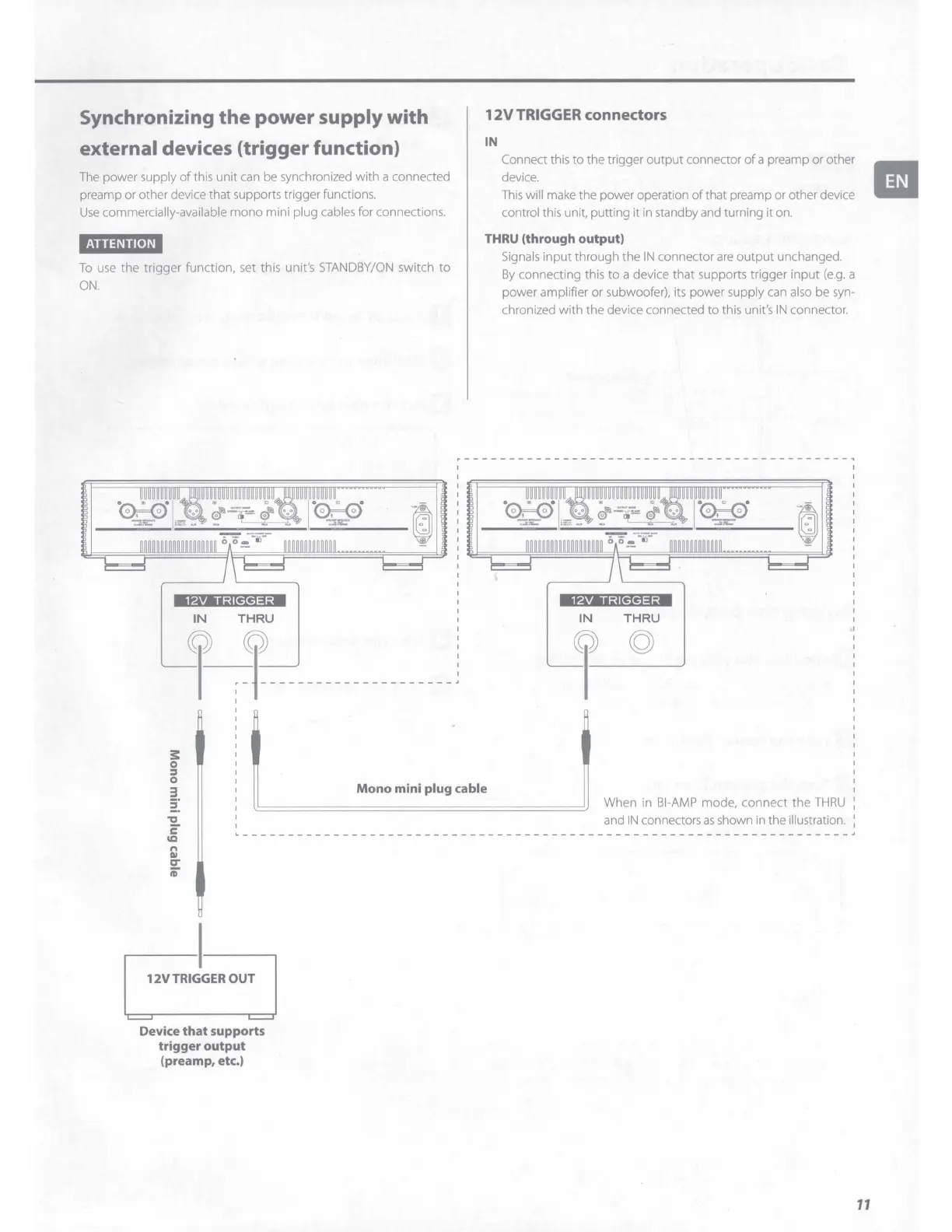

Synchronizing
the
power supply with
external devices (trigger function)
The power supply
of
this unit
can
be synchronized with a connected
preamp or other device that supports trigger functions.
Use
commercially-available
mono
mini plug cables for connections.
i·
iiM
111
•frl
To
use the trigger function, set this unit's
STANDBY/ON
switch
to
ON.
■
1"4
♦
...l;Uflct::l;M
3::
0
:,
0
IN
(Q)
12V
TRIGGER connectors
IN
Connect this to the trigger
output
connector
of
a preamp or other
device.
This
will make the power operation
of
that preamp or other device
control this unit, putting it
in
standby and turning it on.
THRU (through output)
Signals i
nput
through the
IN
connector
are
output
unchanged.
By
connecting this to a device that supports trigger input
(e.g.
a
power amplifier or subwoofer), its power supply
can
also be syn-
chronized
with
the device connected
to
this unit's
IN
connector.
■
1"4Ml;UcJC1::l;M
IN
THRU
(Q)
(Q)
3
§:
Mono
mini plug cable
"Cl
c
10
g
C"
ii'
12V
TRIGGER
OUT
Device
that
supports
trigger
output
(preamp, etc.)
When in Bl-AMP mode, connect the
THRU
and
IN
connectors
as
shown
in
the illustration.
II
11
To Next Page
