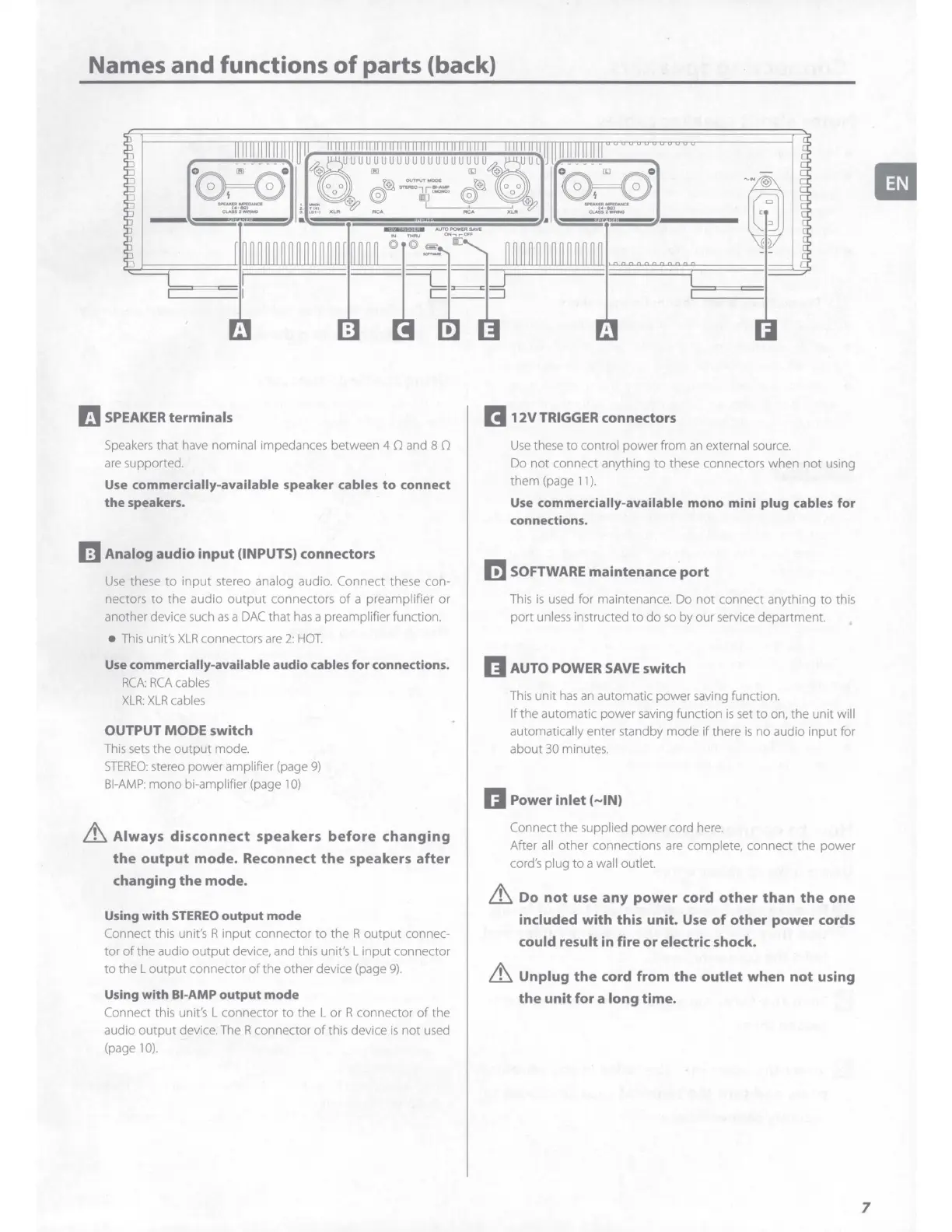

Names and functions
of
parts (back)
l!I
SPEAKER
terminals
Speakers
that have nominal impedances between 4 0 and 8 0
are
supported.
Use commercially-available speaker cables
to
connect
the speakers.
ffl
Analog audio input {INPUTS) connectors
Use
these to
input
stereo analog audio. Connect these con-
nectors
to
the audio
output
connectors
of
a preamplifier or
another device such
as
a
DAC
that
has
a preamplifier function.
•
This
unit's
XLR
connectors
are
2:
HOT.
Use
commercially-available audio cables for connections.
RCA:
RCA
cables
XLR:
XLR
cables
OUTPUT MODE switch
This
sets
the
output
mode.
STEREO:
stereo power amplifier (page
9)
Bl-AMP:
mono
bi-amplifier (page
10)
& Always disconnect speakers
before
changing
the
output
mode. Reconnect
the
speakers
after
changing
the
mode.
Using with
STEREO
output mode
Connect this unit's R input connector
to
the R
output
connec-
tor
of
the audio
output
device, and this unit's L input connector
to
the L
output
connector
of
the other device (page
9)
.
Using with Bl-AMP output mode
Connect this unit's L connector to the L or R connector
of
the
audio
output
devi
ce
.
The
R connector
of
this device
is
not
used
(page
10).
n 12VTRIGGER connectors
Use
these to control power from
an
external source.
Do
not
connect anything to these connectors when
not
using
them (page 1 1 ).
Use commercially-available mono mini plug cables for
connections.
ffl
SOFTWARE
maintenance
port
Th
is
is
used for maintenance. Do
not
connect anything
to
this
port
unless instructed to
do
so
by our service department.
n
AUTO
POWER
SAVE
switch
This
unit
has
an
automatic power saving function.
If the automatic power saving function
is
set
to
on, the unit will
automatically enter standby mode if there
is
no audio input for
about
30
minutes.
II
Power inlet (~IN)
Connect the supplied power cord her
e.
After all other connections
are
complete, connect the power
cord's plug
to
a
wa
ll
out
l
et.
& Do
not
use any power cord
other
than
the
one
included with this unit.
Use
of
other power
cords
could result in fire or electric shock.
& Unplug
the
cord from
the
outlet when not using
the unit for a long time.
7
