System Connections
Connecting to an External AV Signal Source(HDMI)

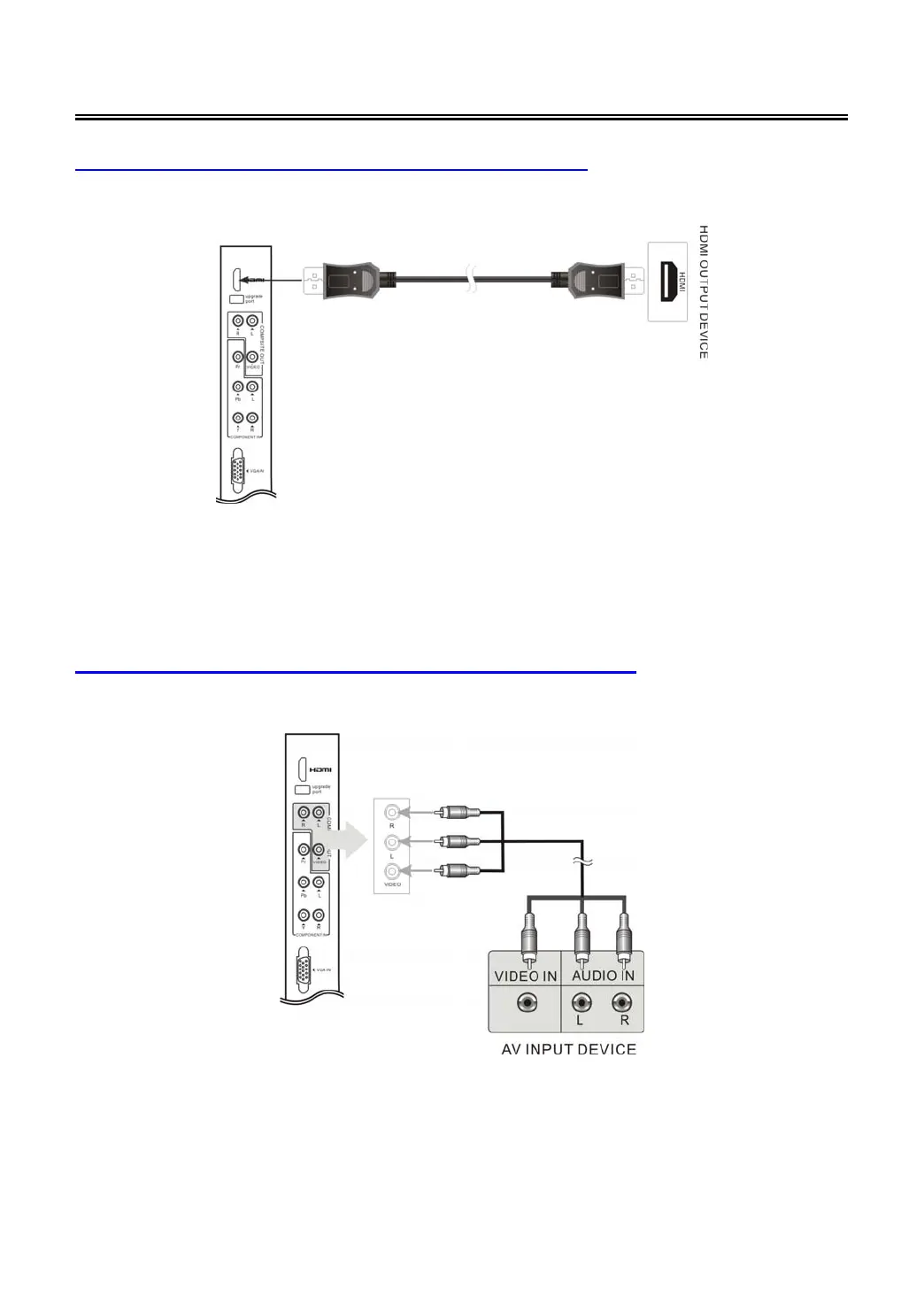

Follow the figure below to connect an HDMI signal source to the HDMI jack on the rear panel of the
unit.
After connection, turn on the power of the unit and the external AV signal source. Press INPUT
then direction buttons to select HDMI mode, and then
press the ENTER button to confirm.
¾ HDMI provides both audio and video signals and typically
provides superior image
quality to component, S-Video or composite.
Connecting to an External AV Signal Source(AV Output)
Use the AV cables to connect the external AV input device to the AV output jacks on the rear panel
of the unit.
After connection, turn on the power of the unit and the external AV signal source. Press INPUT
then direction buttons to select the
corresponding mode, and then press the ENTER button to
confirm.
