Speaker Connections
Caution:
<
To avoid damaging the speakers with a sudden high-level signal, be sure to switch the power
off before connecting the speakers.
<
Do not connect the supplied speakers to other amplifier or receiver. Also, do not connect
other speakers to the PL-D2100. It may damage the unit.
<
The speaker terminals and cables are distinguished by colors.
Be sure to match the color of the cables with the color of the terminals.
<
The metal portions of the two separate wires should not touch or an electrical short can
occur. Shorted wires can create a fire hazard or induce a failure in your equipment.

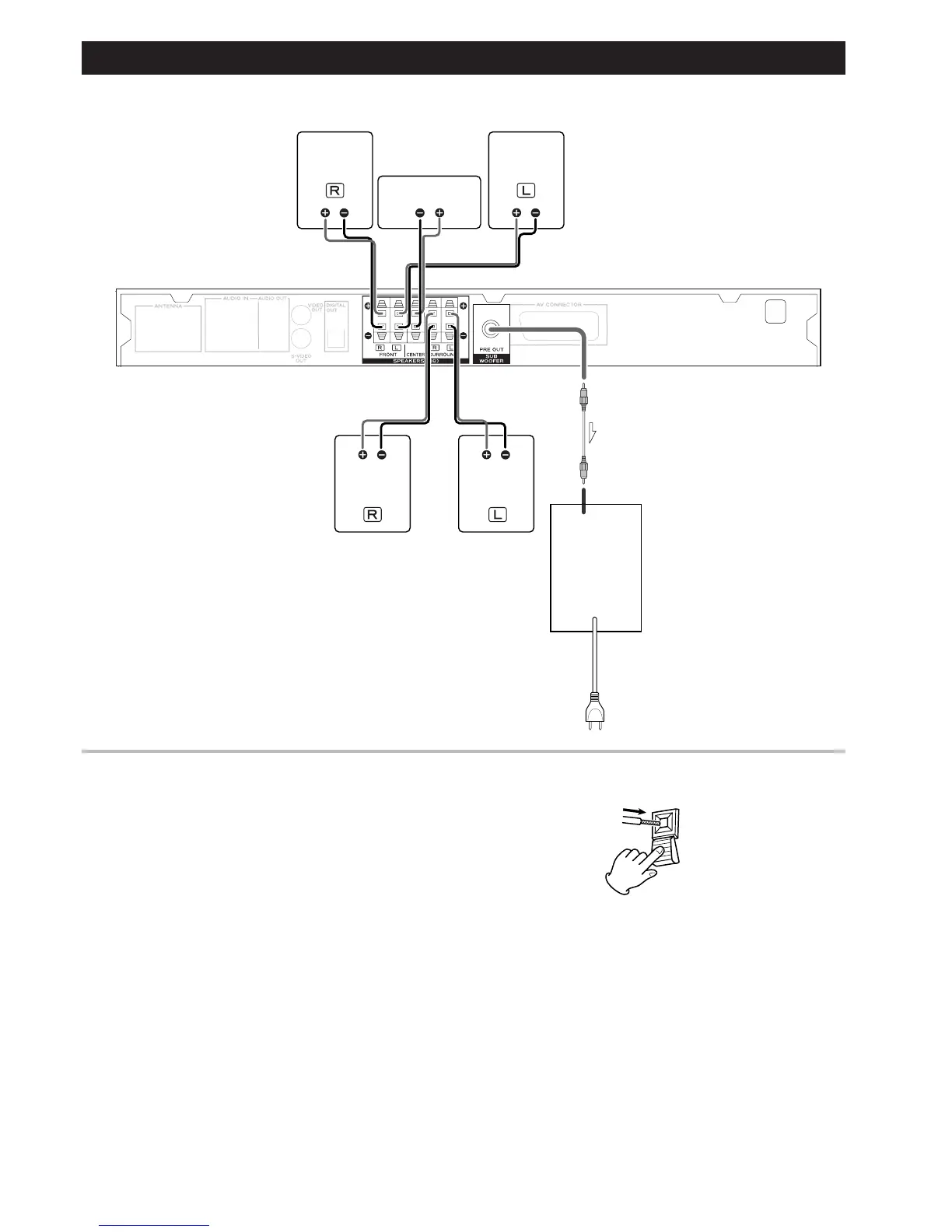

How to connect:
Press the lever, insert the stripped and twisted end of the cord,
then release the lever. Make sure it is fastened securely by
pulling the cord lightly.
To Next Page
