Laptimer
If you want to count your lap times on a race track, you can do it by your Fusion module. To increase a
setting, push or hold the joystick.
● Laps: Amount of laps you want to race (1 - 30)
● Time: Maximum time till a lap will be counted as finished (10 - 50s)
● RSSI: RSSI level of the lower Antenna when the “start gate” is reached (50-95% in 5% steps)
● Tune: Fine-tune the threshold of the RSSI trigger (5-50)
● Start: Starts a 10s count down after which the timer beginners to run
● Score: Shows the result of your last race. Push the joystick to the right to toggle to the next 10
rounds

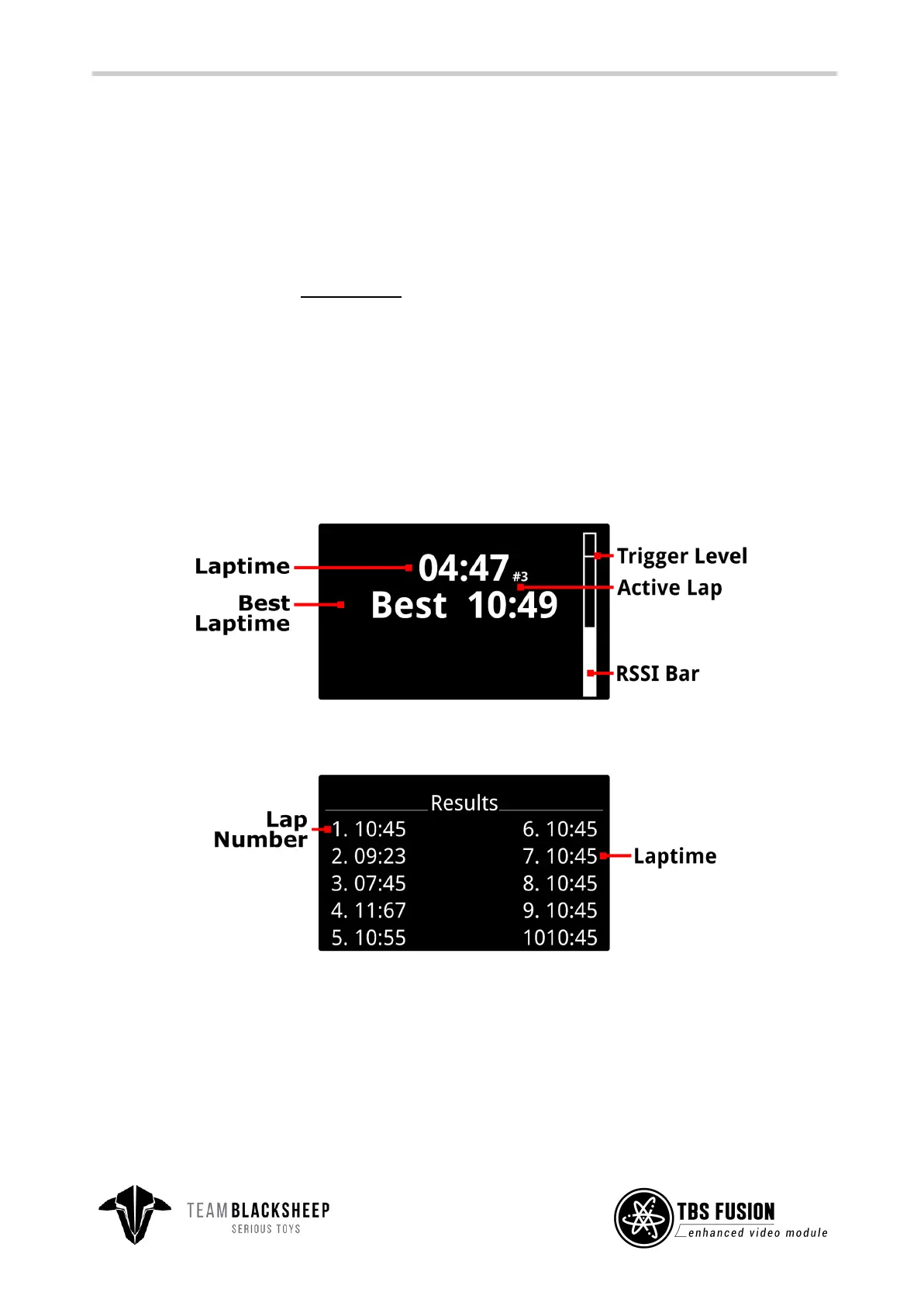

OLED
During the race:
After the race:
16
