How to install the mod
There are different methods to provide battery voltage to your Fusion module. This can be done by the
included power mod pcb and the ribbon cable as well as by just a single wire on the soldering spots on the
pcb. Here you can see the installation process as video.
On some goggles this can create heat on the main PCB of your goggles. In this case, just connect a wire
straight to the barrel connector of your goggles and the solder-spot on the Fusion..
Upgrade receiver modules

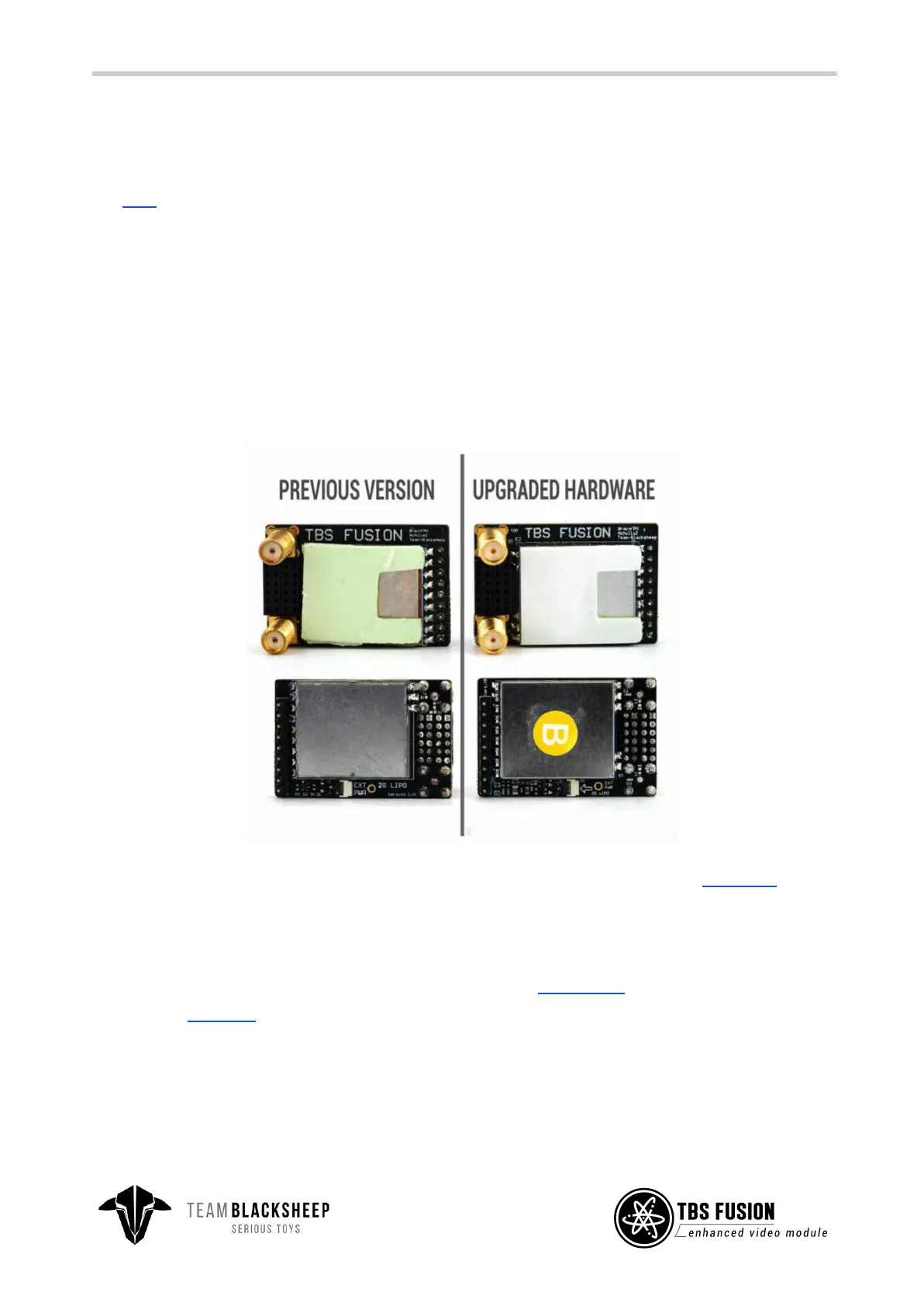

If you bought your Fusion module before april 2020 you got the first receiver modules which got replaced
by a newer revision with a higher sensitivity. If you are not sure which one you got, you can check out the
back of the module:
To upgrade you just replace the receiver module.
After the upgrade you need to run the calibration.
Antenna selection
Due to the advanced image processing the Fusion does not need two identical antennas to work properly.
The most common setup is an omni-directional antenna like the Triumph Pro on the top connector and a
patch like the TBS Patch on the bottom connector.
Make sure to use SMA antennas!
