1.4. Quick Start Overview

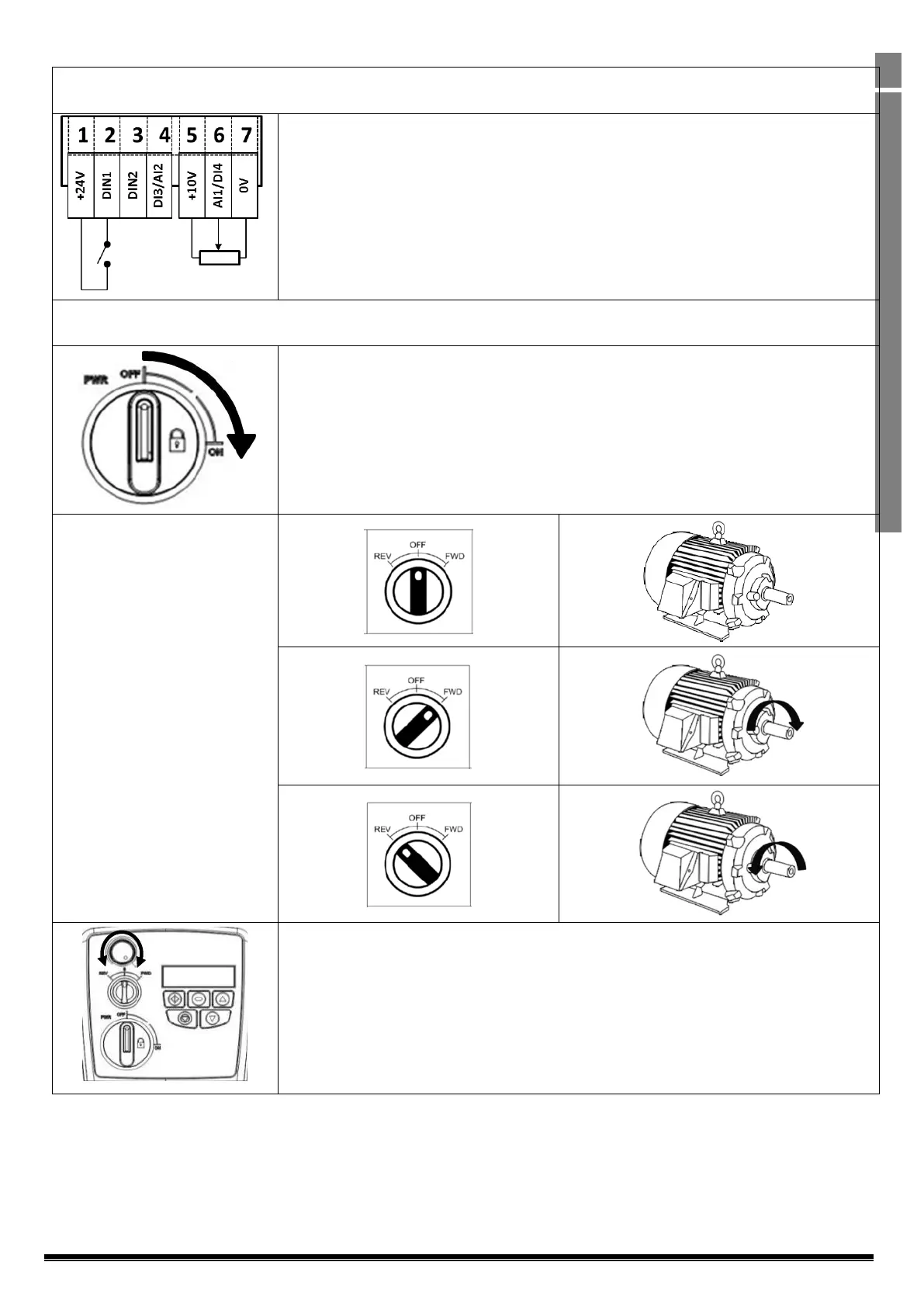

Quick Start – IP20 & IP66 Non Switched
• Connect a Start / Stop switch between control terminals 1 & 2
o Close the Switch to Start
o Open to Stop
• Connect a potentiometer (5k – 10kΩ) between terminals 5, 6 and 7 as shown
o Adjust the potentiometer to vary the speed from P-02 (0Hz default) to P-01 (50 / 60 Hz
default)
Quick Start – IP66 Switched
Switch the mains power on to the unit using the built in isolator switch on the front panel.
The OFF/REV/FWD will enable the
output and control the direction of
rotation of the motor.
The potentiometer will control the motor shaft rotational speed.
