4-13

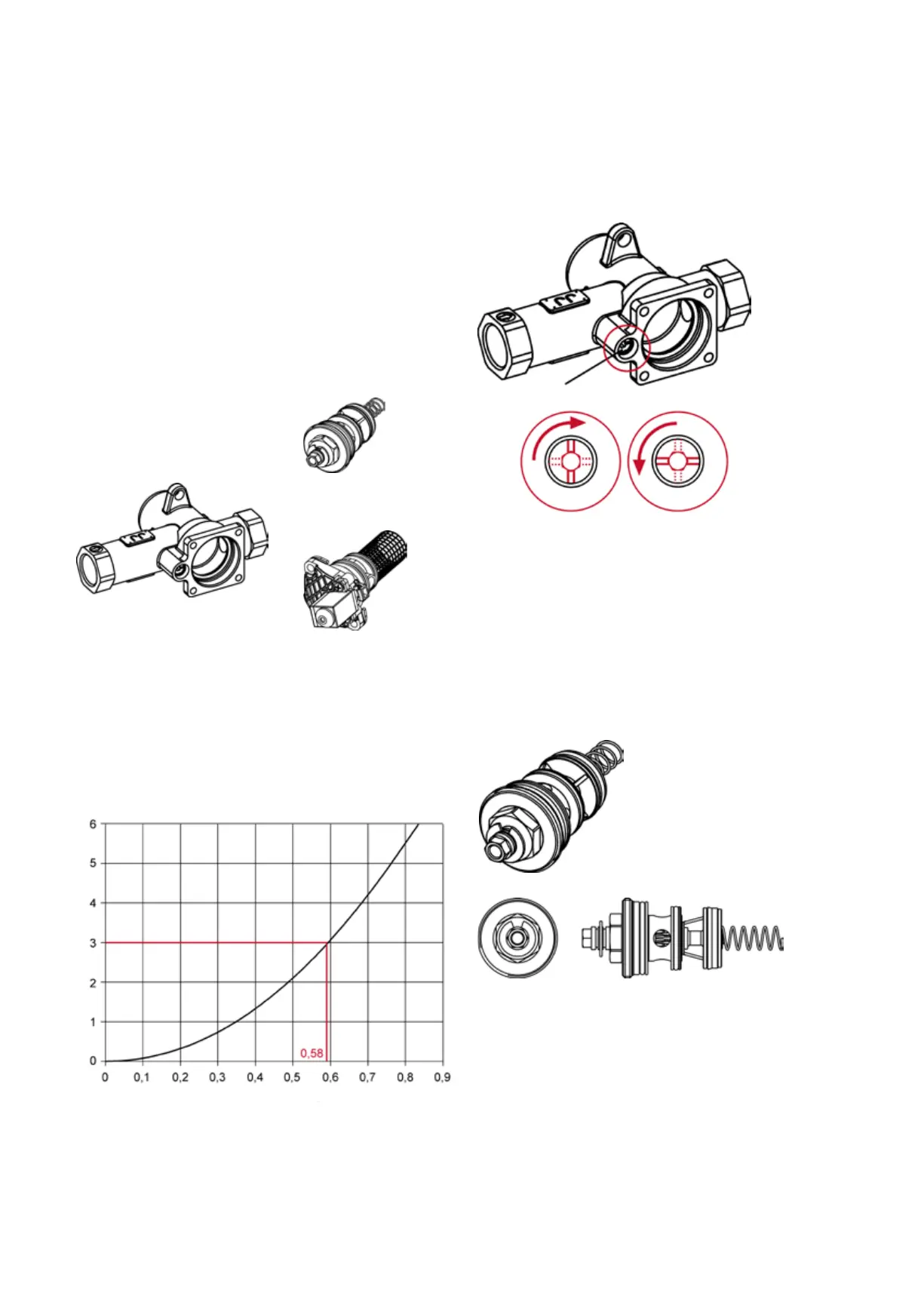

U 1 TECE urinal flush valve
U 1 TECE urinal flush valve
The TECE U urinal flush valve is based on a further
development of tried and tested flush valve technology.
Well designed details and improved materials ensure dura-
bility and high reliability.
The TECE urinal flush valve is suitable for mechanical and
electronic actuation. The same housing is used in both
cases. The flush volume can be set from to a maximum
of about litres.
+
mechanical cartridge
or
electronic cartridge
Housing for urinal flush valve and cartridges
Manual and electronic cartridges have the same flush
valve housing and the same high flush performance of >
. l/s at bar.
Using the following flow diagram, you can calculate the
flush volume for the urinal flushing valve depending on the
pipe pressure and flushing time.
Urinal electronics flow diagram
Example:
Pipe pressure bar: Flushing flow = . l/s
Flushing time e.g. . s: Flushing volume approx: litres
The shut-o valve is located in the valve housing and is
adjusted by means of an Allen key (size mm). Turn °
anti-clockwise to close, ° clockwise to open the shut-o
valve.
Shut-o valve
Mechanical flush valve
The mechanical flush valve (to DIN EN ) is hydrau-
lically controlled and is sturdy and reliable. An automatic
jet cleaning function ensures long and maintenance-free
operation. Regardless of the pipe pressure, the adjustable
flushing volume always remains constant.
Mechanical cartridge
Volume adjustment
The flushing volume of the mechanical cartridge can be set
to , or litres using a retaining ring. When the retaining
ring is removed, the flusher can be set to – litres.
Shut-o valve
“Open” “Closed”
Flow [? l/s?]
Pressure [?bar?]
