4-21
U 2 TECEfilo urinal flush valve
min. 20 s

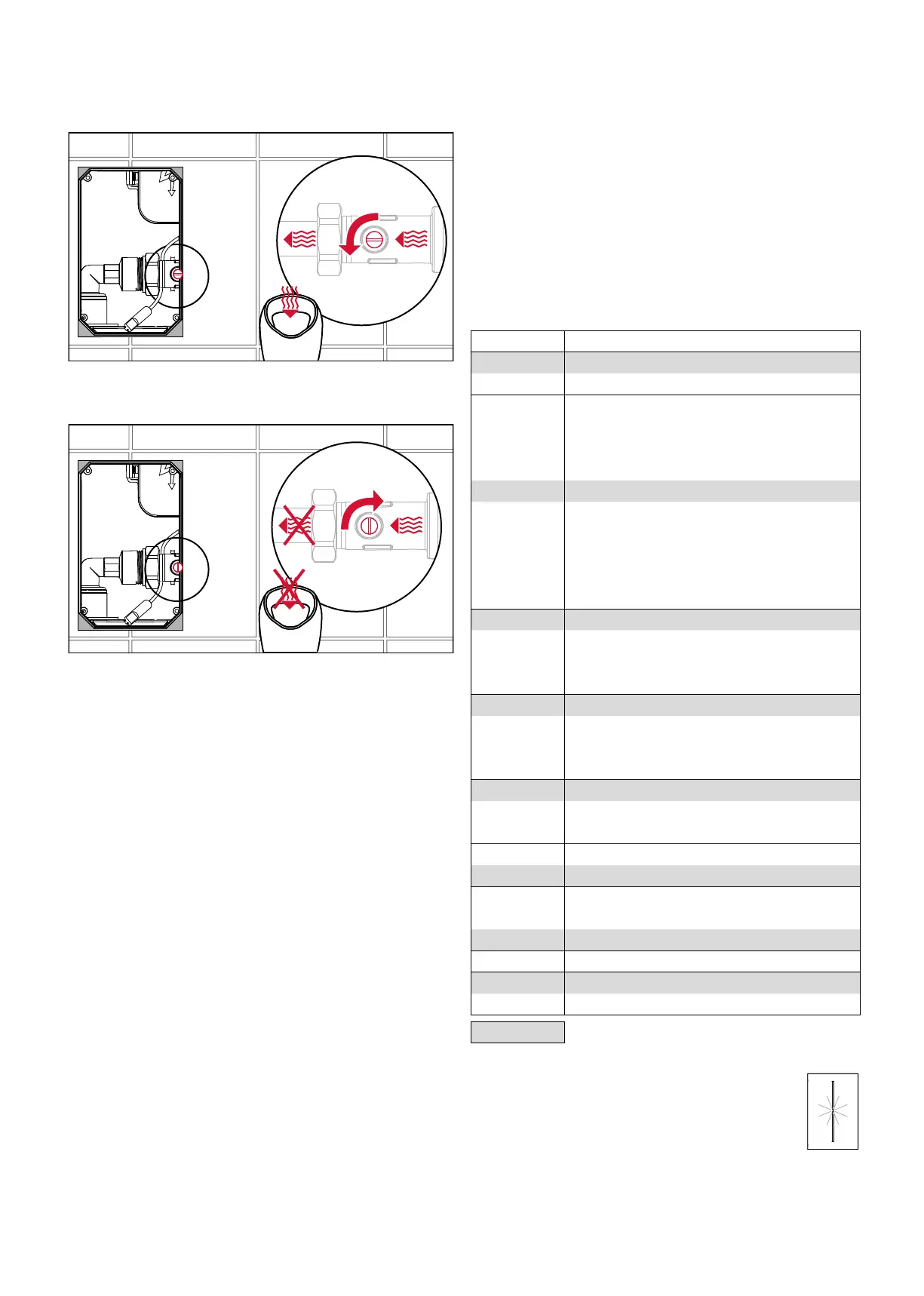

To flush out the connection pipe, open the inlet flow con-
trol and suciently flush out the pipe.
Before mounting the flusher, make sure that the inlet flow
control is closed so that no water can leak out during
assembly. Close the shut-o using a flat-head screwdriver.
In the free-flow setting, the goove of the shut-o is paral-
lel to the housing, and in the closed setting, it is at right
angles to the housing.
Programming the U2 urinal electronics
To program the TECEfilo urinal electronics, the program-
ming key provided in the scope of delivery is required. The
TECE electronics can be programmed during the first 30
minutes after connection to the power supply. In the event
of a power failure, the last settings saved are retained.
Each configurable setting is assigned a position on the
remote control.
Position Function
1 Pause function “o”
2 Pause function “on”
3 Flushing time 1 s
4 Flushing time 2 s
5 Flushing time 3 s
6 Flushing time 4 s
7 Flushing time 5 s
8 Flushing time 6 s
9 Flushing time 7 s
10 Flushing time 8 s
11 Flushing time 9 s
12 Flushing time 10 s
13 Pre-rinsing “o”
14 Pre-rinsing 0.5 s
15 Pre-rinsing 1 s
16 Pre-rinsing 2 s
17 Hygiene/interval flush “o”
18 Hygiene/interval flush 24 hrs
19 Hygiene/interval flush 72 hrs
20 Hygiene/interval flush 168 hrs
21 Refill "o"
22 Refill “on” (refill for 2 s after flushing for 2 s)
23 Sensor sensitivity “sensitive”
24 Sensor sensitivity “standard”
25 Hygiene flush volume small (5 s)
26 Hygiene flush volume medium (15 s)
27 Hygiene flush volume big (30 s)
28 Reset to factory settings
29 Urinal covers “o”
30 Urinal covers “on”
= Factory setting
During the programming phase, a red diode flash-
es in the centre of the sensor field as soon as a
person enters the area. This diode acknowledges
that the programming mode is activated. It also in-
dicates the exact position of the programming key.
