U 2 TECEfilo urinal flush valve

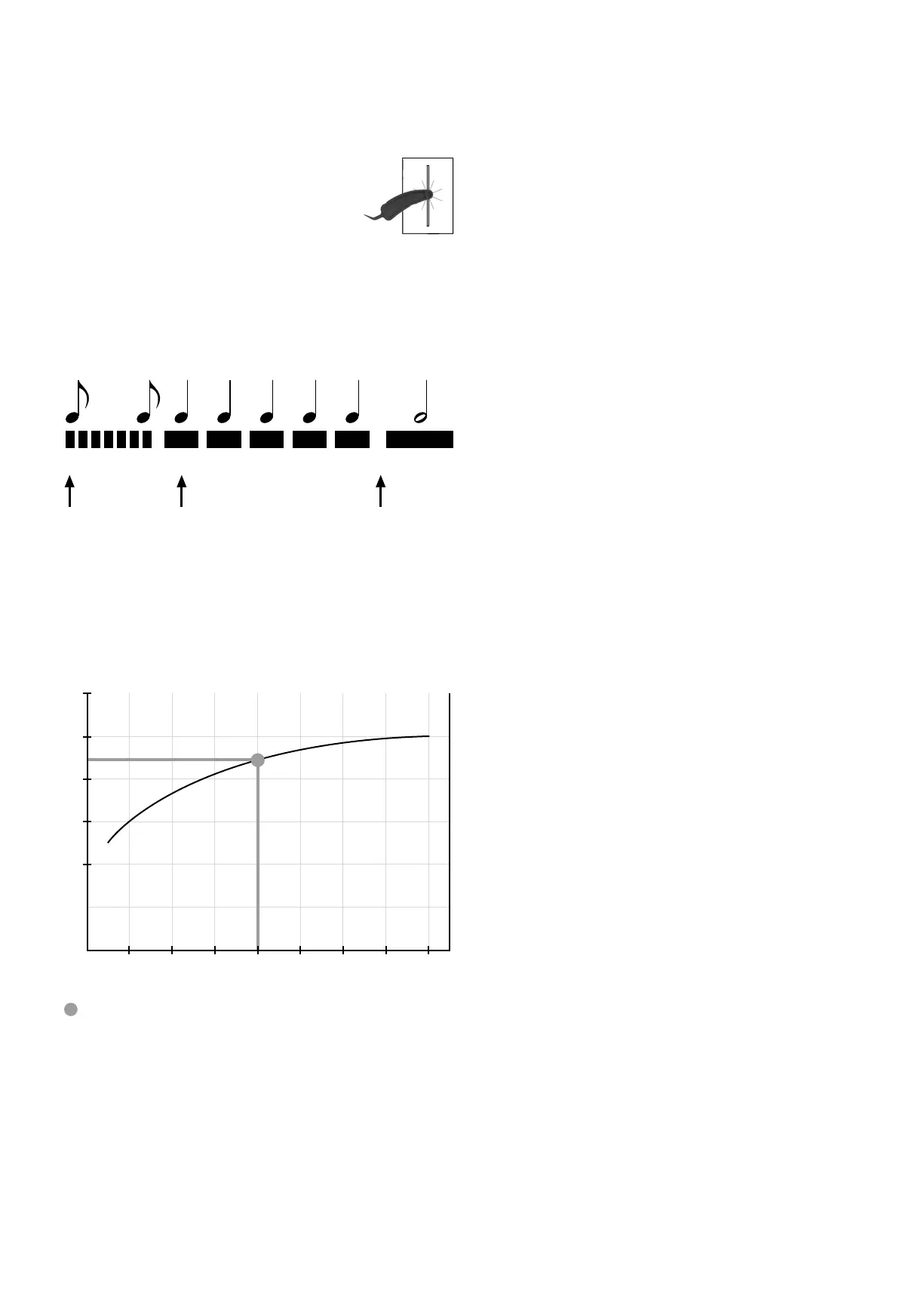

How to program the TECE electronics:
Hold the programming key in front of the red diode (see
illustration). The programming mode starts with a quick
series of short beeps.
After the start-up phase you will hear a sequence of the
same distinct beep. Count the beeps until you reach your
desired function.
Now remove the programming key. A long beep indicates
that the programming key has been removed.
Example: Setting the flush time to 3 seconds
. . . .
Hold the program-
ming key in front
of the sensor
Remove the program-
ming key
Start 1 2 3 4 5 OK
Count the individual beeps until
the desired position is reached
Flow characteristic curve:
With the help of the flow characteristic curve, the volume
flow of the TECEfilo flusher can be read and set as a func-
tion of the flow pressure and the flushing time:
0,2
0,3
1 2 3 4 5 6 7 8
0,4
0,5
Flow pressure (bar)
Flow rate (l/s)
Example:
Pipe pressure 4 bar → Flow rate 0.44 l/s → with 5 s flush-
ing time ≜ 2.2 l
Adjustable functions:
Pause function/stadium function
When the pause function is activated, the flushing time is
automatically reduced to one second following repeated
flushes in short succession (= less than two minutes). 45
minutes after the last economy flush, a standard flush vol-
ume is activated.
Cleaning function
Activating the cleaning function stops the urinal from
flushing for ten minutes. After this time, a cleaning flush
is automatically triggered and it returns to the standard
operating mode.
Activating the cleaning function:
Hold the programming key briefly in front of the sensor
window until an acknowledgement beep sounds.
The cleaning function can only be activated in standard
mode, not during the programming phase.
Hygiene/interval flush
Automatic flush actuation, choose between 24, 72 or 168
hours after the last flush. The hygiene flush volume can be
set to small (5 s), medium (15 s) or large (30 s).
