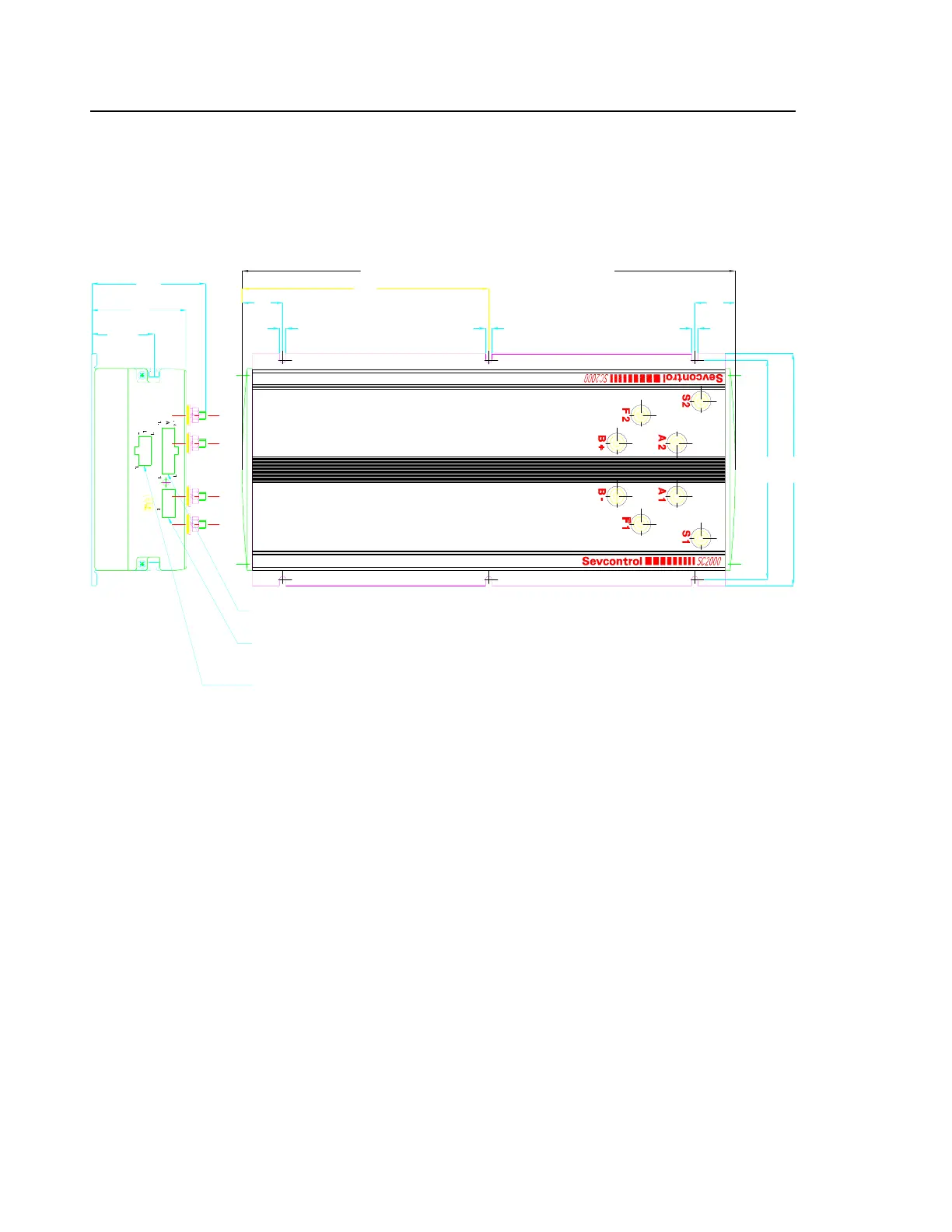

Mechanical Dimensions - Traction Dual Motor Proportional and Pump (via contactor)
40 40
7 7
2
1
6
2
3
0
SC2546 424MM ("X"=212MM)
SC2545 360MM ("X"=180MM)
SC2585 488MM ("X"=244MM)
CALIBRATOR CONNECTOR
PANEL CONNECTO
R
USER CONNECTOR
93
60.2
113
"X"
7
SC2586 552MM ("X"=276MM)
