TechBook in.touch 2 - System Overview; Module Identification; Module Dimensions

4
Overview
in.touch 2 overview
in.touch 2 dimensions
3.24 in.
(82 mm)
2.94 in.
(75 mm)
.96 in.
(24 mm)
2.76 in.
(70 mm)
2.76 in.
(70 mm)
3.39 in.
(86 mm)
3.1 in.
(76 mm)
.91 in.
(23 mm)

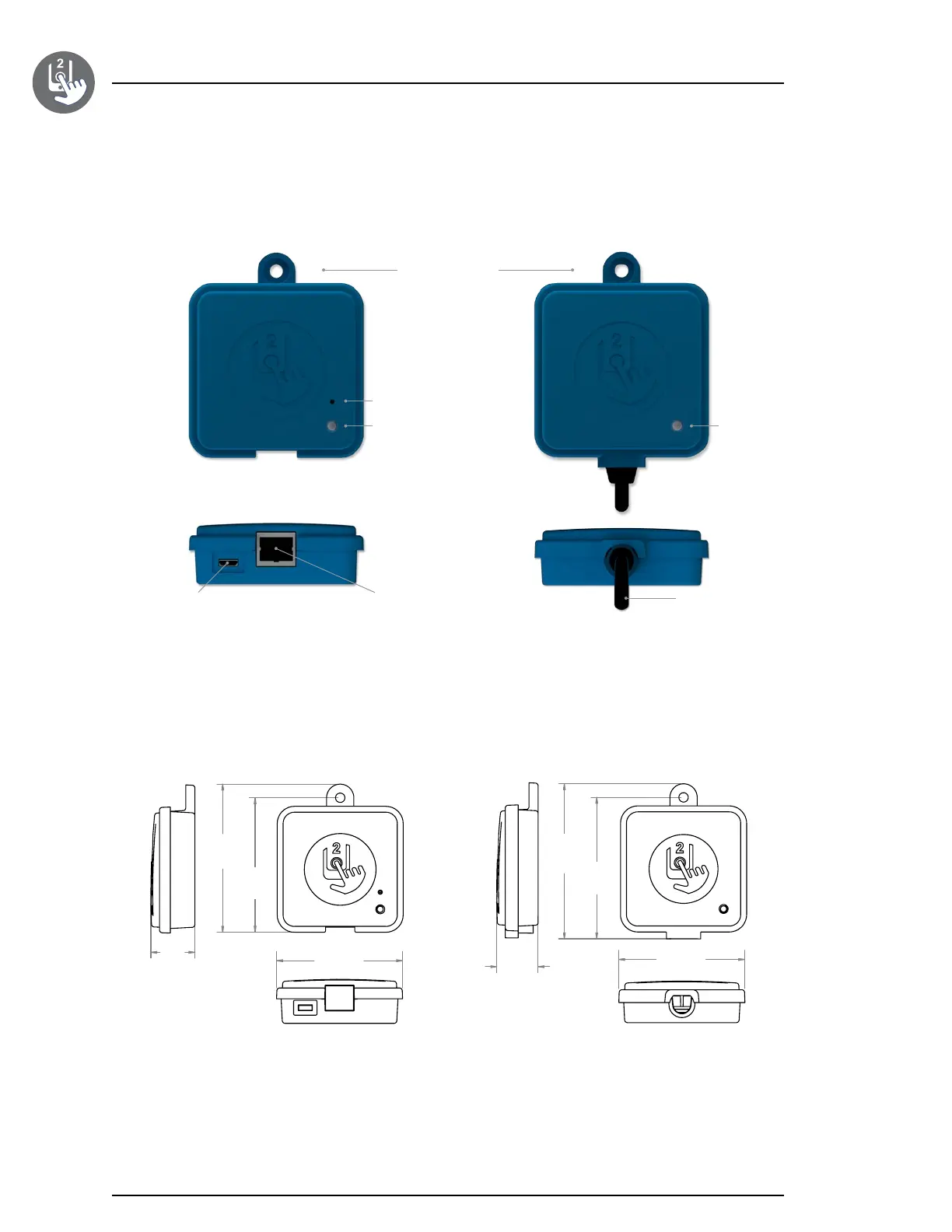

CO Module (spa)EN Module (home)
Status LED
Pairing activation
Fastening bracket
RJ45 Ethernet connection CO pack connectionMicro USB power
EN Module (home) CO Module (spa)
Status LED
