1000BASE-T1 SPY mini User Manual
13
4 USE CASES
Four different Use Cases can be configured by DIP Switch 3 and 4 for the 1000Base-
T1_SPY_mini. After changing these switches, a hardware reset is required.
4.1 Dual Media Converter Mode
The simplest Use Case is the double Media Converter, selected by setting the DIP
switches 3 and 4 to “00” (both switches down). The 1000Base-T1 Spy mini will act
similar to completely independent Media Converters from 1000Base-T1 to Gigabit
Ethernet in full-duplex mode.
The two data streams of the two Media Converters are completely independent of
each other. Both data streams are full duplex and the RJ45 Ports are input/output.
The PC can send data.
There are no buffers in this Use Case.
The RJ45 Ports work in Gigabit Ethernet (1000 Mbit/s) Mode in this Use Case.

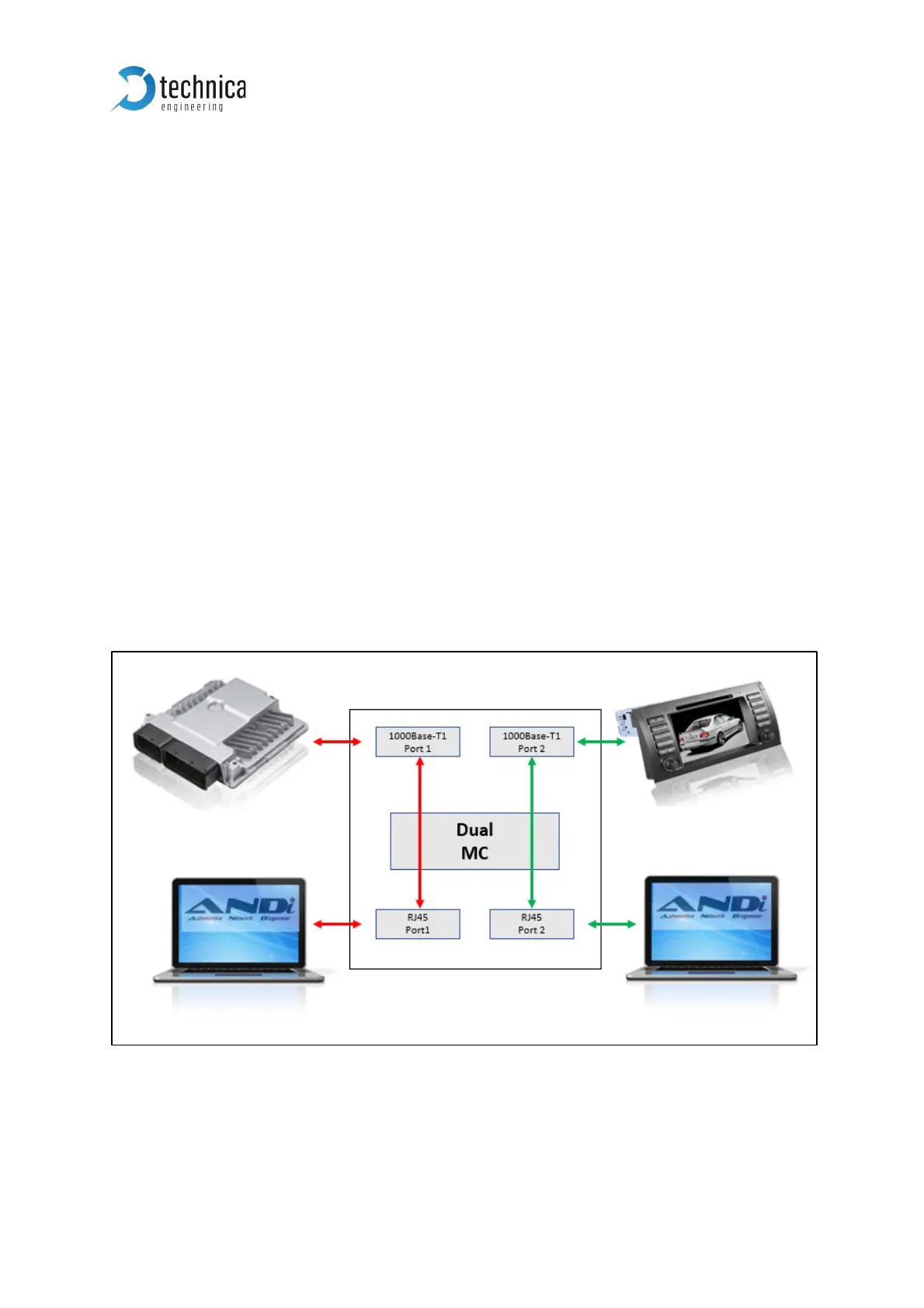

Figure 4-1: Dual Media Converter Mode
