Technica 100BASE-T1 SPY Mini User Manual

1000BASE-T1 SPY mini User Manual
3
1 GENERAL INFORMATION
1.1 Functionality and Features of the 1000BASE-T1 SPY mini
The Technica Engineering 1000Base-T1 SPY mini samples 1000Base-T1 Frames
directly on the bus without influence of the original network. The data Frames are
enhanced with additional in-formation as an exact timestamp and the bus port which
the data was originally sent on. All data can be recorded on a PC or datalogger for
detailed offline analysis.
Timestamps are in 0.04 μs resolution and synchronous to all connected lines.
Optionally other Use Cases (Frame Generator, Trigger Generator, …) can be upgraded.
Figure

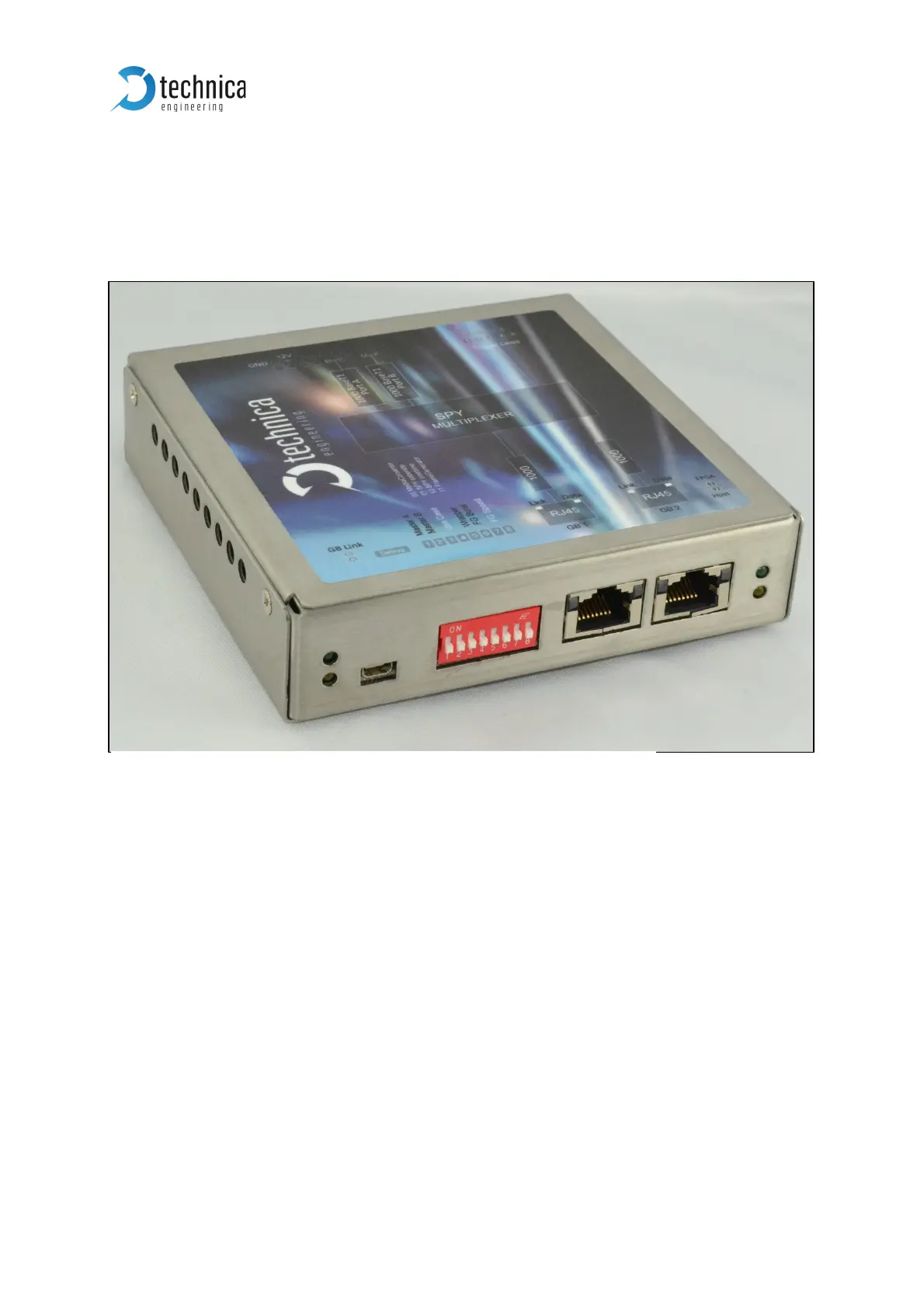

1-1: 1000BASE-T1 SPY mini
