1000BASE-T1 SPY mini User Manual
8

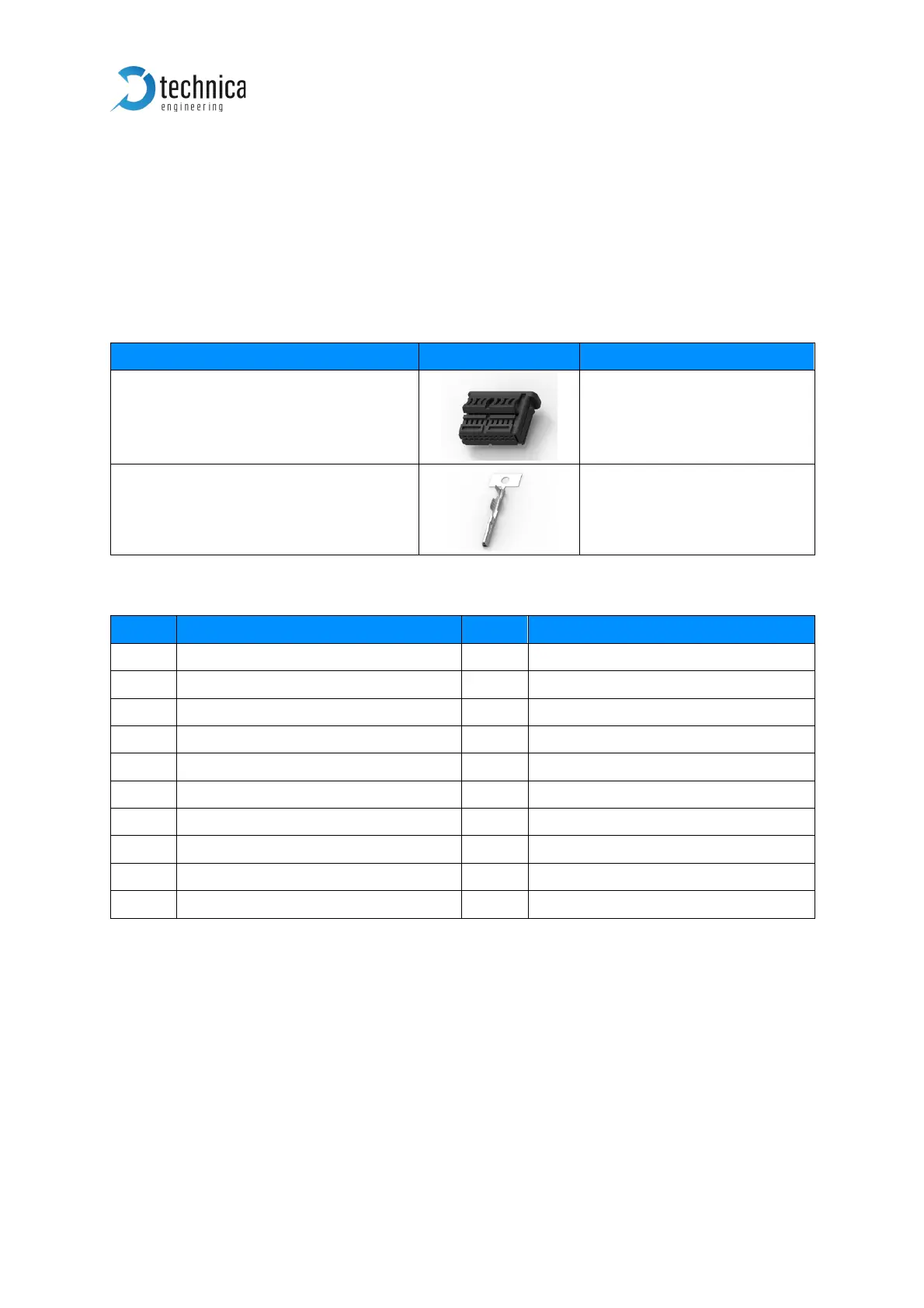

2.1.1 Power and 1000BASE-T1 Connector
Power supply for the device is supplied by Pin 18 (12 Volt) and Pin 20 (Ground).
Warning: If you apply a voltage higher than 18 Volt, the device will be damaged!
The Tyco Electronics (TE) Nano Micro Quad Lock System (NanoMQS) is used.
Name
Part Number
20POS NANOMQS
REC HSG CODE A
2141404-1
NANOMQS
RECEPTACLE TERMINAL
2-1703930-1
Table 2-1: Parts of black MQS connector
Pin
Function
Pin
Function
1
n.c.
2
n.c.
3
1000Base-T1 Port_B, Positive
4
n.c.
5
1000Base-T1 Port_B, Positive
6
n.c.
7
n.c.
8
n.c.
9
1000Base-T1 Port_A, Positive
10
n.c.
11
1000Base-T1 Port_A, Negative
12
n.c.
13
n.c.
14
n.c.
15
n.c.
16
n.c.
17
n.c.
18
VCC 12Volt
19
n.c.
20
GND
Table 2-2: Pinning information Tyco nano MQS connector
Note: No 100BASE-T1 Support by the 1000BASE-T1 Ports. The device is only for
1000BASE-T1 suitable.
