1000BASE-T1 SPY mini User Manual
7
2 HARDWARE INTERFACES
2.1 Connectors
On the label on top of the device you can see an overview about all HW-Interfaces of
the 1000BASE-T1 SPY mini

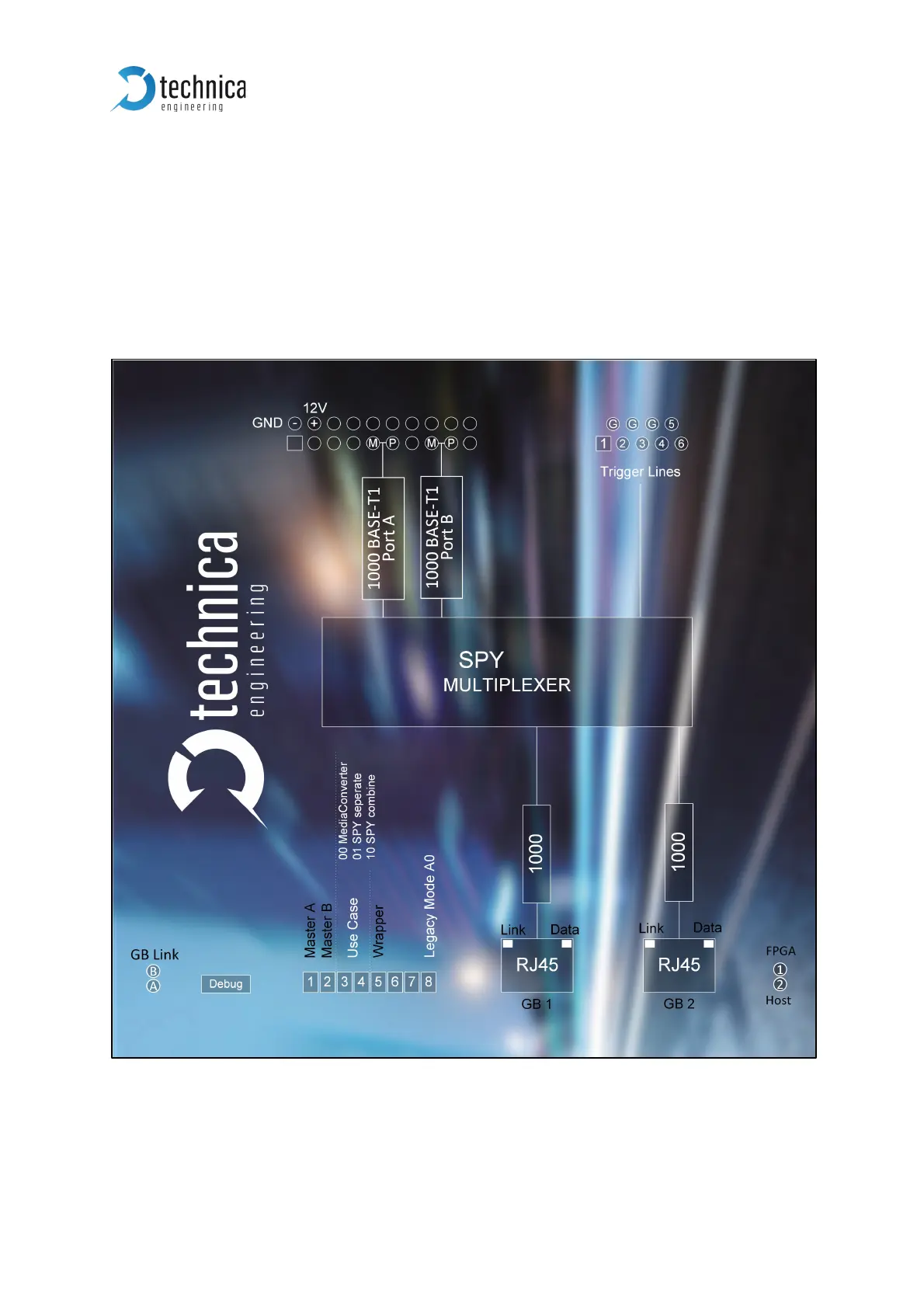

Figure 2-1: Label of 1000BASE-T1 SPY mini with pinning information
