4.2 Spy Mode Independent
The user can select this mode by setting the DIP switches 3 and 4 to “01” (DIP Switch
3 down and DIP Switch 4 up).
In this mode the copied data from the two 1000Base-T1 Ports are logged
independently through the 2 Ethernets ports. There is no communication from Ethernet
to 1000Base-T1. The RJ45 Ports are output only. The communication between the two
1000Base-T1 ports is possible.
This mode is very powerful in combination with the TimeStamp Feature (see
CHAPTER 4.4).

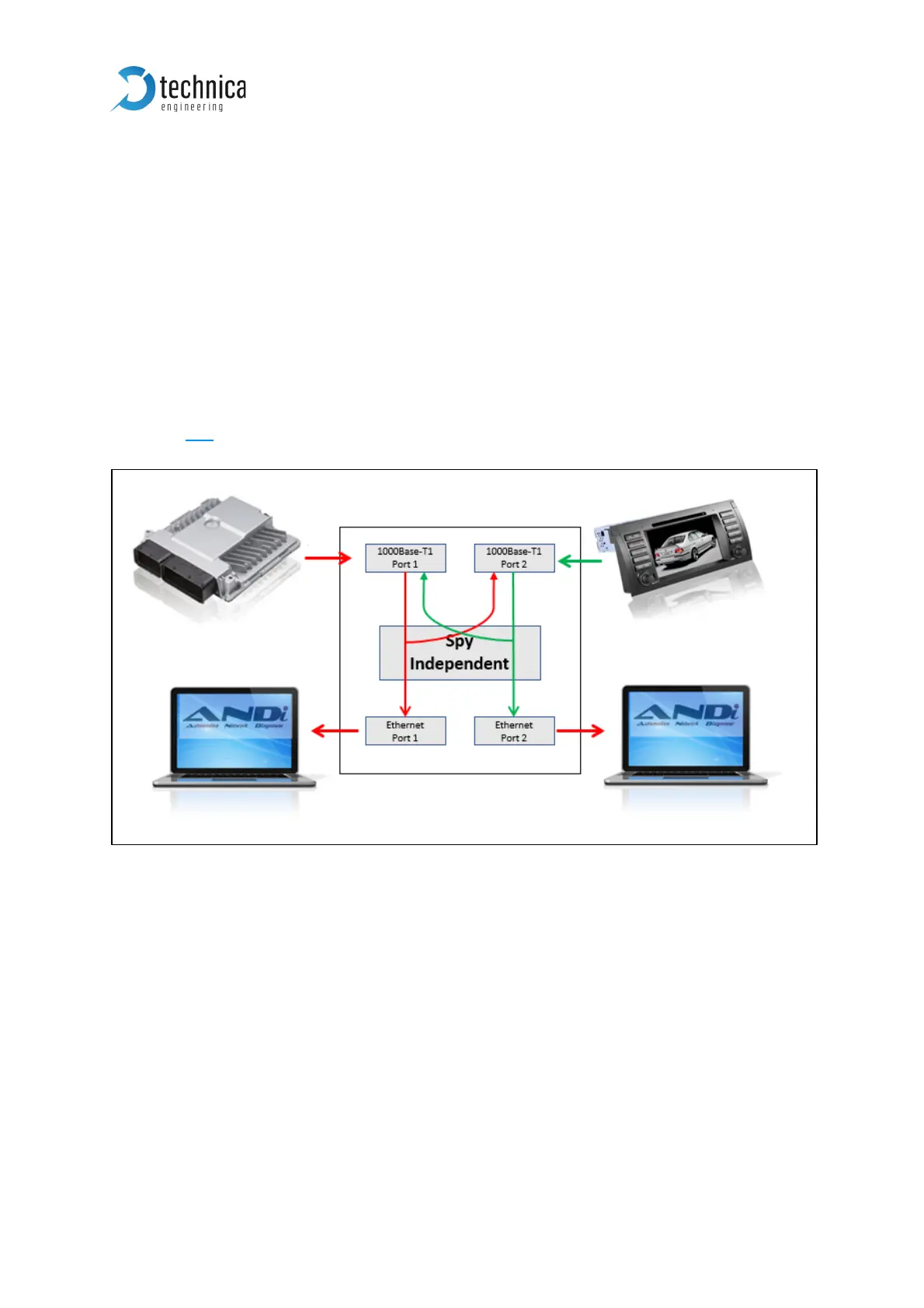

Figure 4-2: SPY mode independent
4.3 Spy Mode Combined
The user can select this mode by setting the DIP switches 3 and 4 to “10” (DIP Switch
3 up and DIP Switch 4 down).
In this mode the copied data from the two 1000Base-T1 Mbit/s are logged into one
1000Mb/s stream and are sent on one Gigabit link. To do a collision resolution the
packets are buffered on each 1000Base-T1 Port.
