The following table shows the values of Port field:
Port
Value
1000BASE-T1 A
0x01
1000BASE-T1 B
0x02
Table 4-2: Values of Field “Port” in wrapped frame

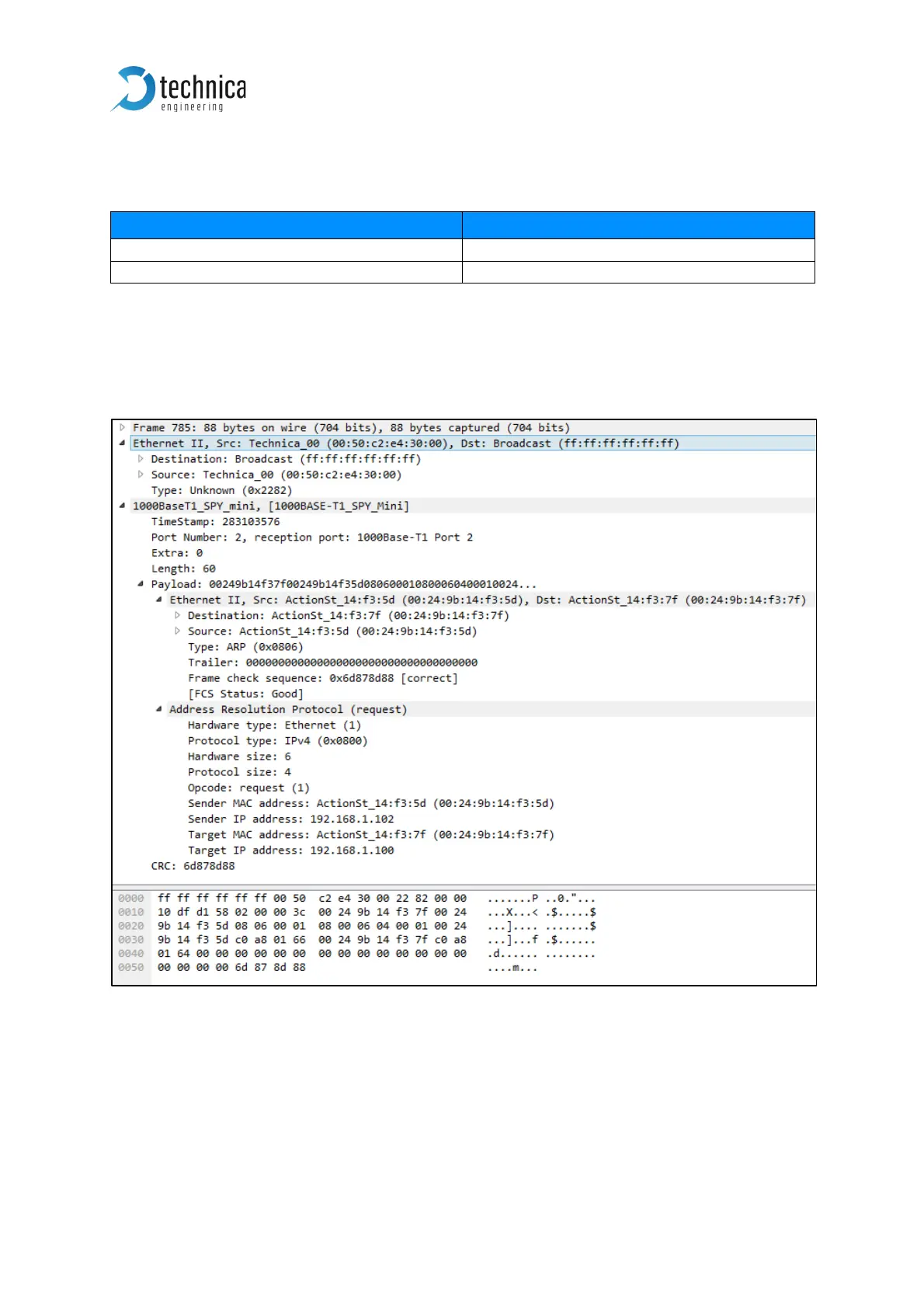

The following picture shows an example of a 1000Base-T1 payload frame
encapsulated in a 1000Base-T1 RAW frame, with header:
Figure 4-5: Screenshot of 1000BASE-T1_SPY_mini frame
