3 PHYSICAL INSTALLATION
This chapter describes the physical installation of the TG650s, hereafter called “gateway”.
3.1
3.1
Package description
Package description
The following items should be present in the Do-It-Yourself (DiY) package:
1 Technicolor TG650s 2p gateway box containing:
◦ 1 TG650s 2p modem
◦ 1 PSU
◦ 1 RJ14 cable (the difference to RJ11 is that RJ14 supports 4 wires)
◦ 1 RJ45 Cat5e Ethernet straight cable
There is no localization supplied, as the TG650s is an SHDSL modem, and does not support
line-sharing with Voice, hence no splitter/filter nor additional cabling is supplied.
Examples of the RJ45 and RJ14 connectors:
3.2
3.2
Physical Installation Environment
Physical Installation Environment
The environment in which the gateway is being installed must have normal ventilation and
support the following conditions:
Temperature: 0°to 40°C (32 to 105 F)
Humidity: 20% to 80%
ATT_TG650s_Quick_Install_Guide Page 10

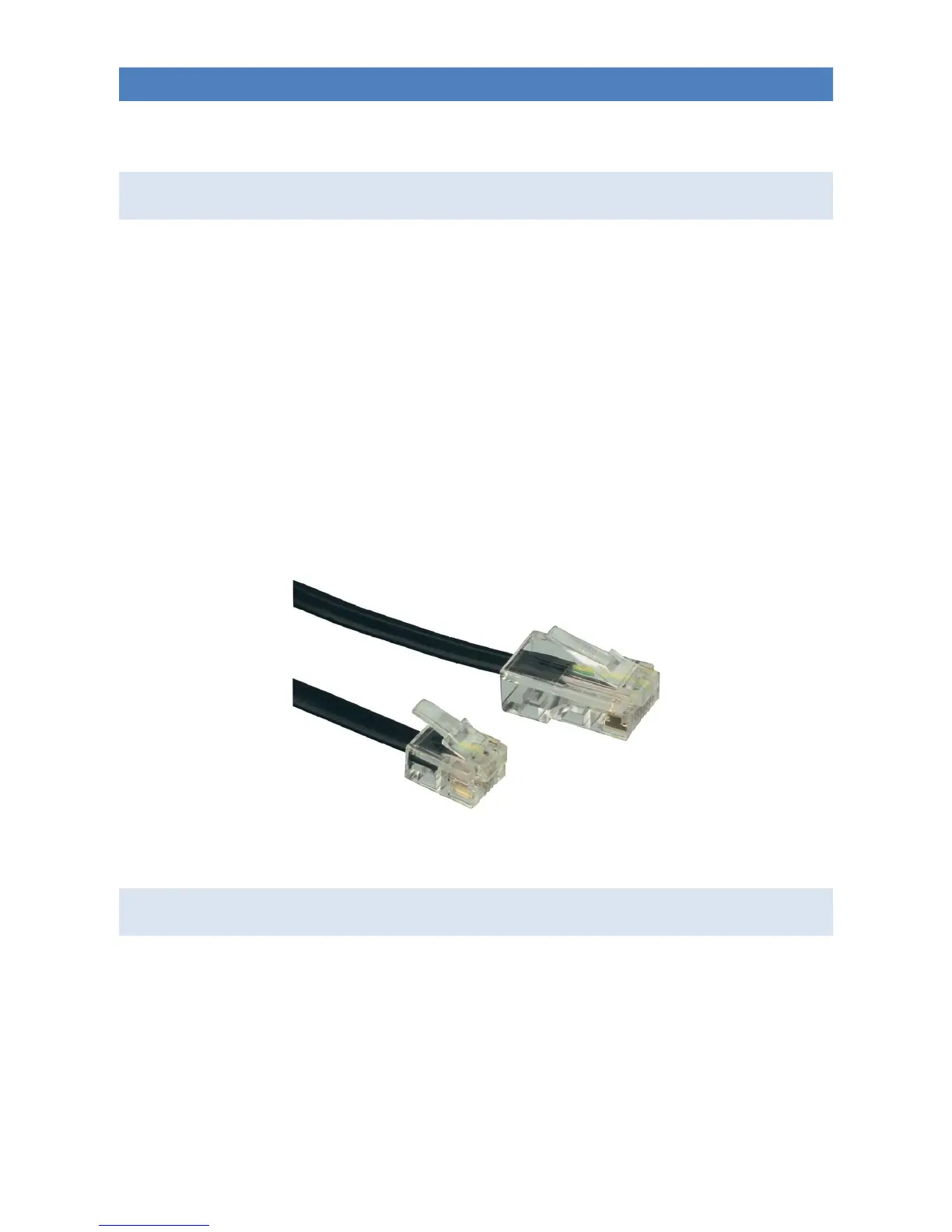

Illustration 3.1: RJ14 (left) and RJ-45 (right) connector. The
RJ-14 has 4 wires, the RJ-45 has 8 wires.
