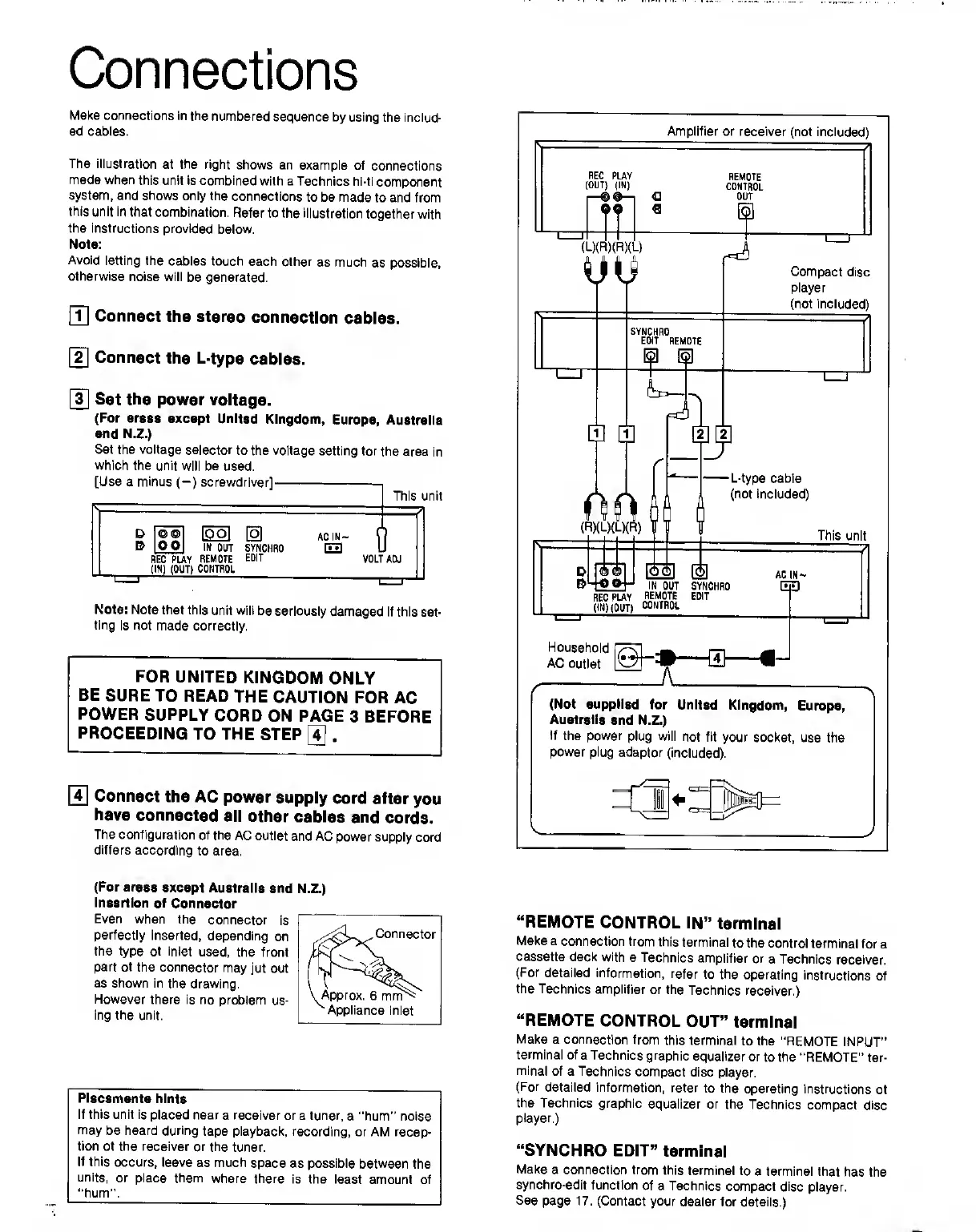

Connections
Make
connections
in
the
numbered
sequence
by
using
the
includ¬
ed
cables.
The
illustration
at
the
right
shows
an
example
of
connections
made
when
this
unit
is
combined
with
a
Technics
hi-fi
component
system,
and
shows
only
the
connections
to
be
made
to
and
from
this
unit
in
that
combination.
Refer
to
the
illustration
together
with
the
instructions
provided
below.
Note:
Avoid
letting
the
cables
touch
each
other
as
much
as
possible,
otherwise
noise
will
be
generated.
|T|
Connect
the
stereo
connection
cables.
[2]
Connect
the
L-type
cables.
|~
3
]
Set
the
power
voltage.
(For
areas
except
United
Kingdom,
Europe,
Australia
and
N.Z.)
Set
the
voltage
selector
to
the
voltage
setting
for
the
area
in
which
the
unit
will
be
used.
[Use
a
minus
(-)
screwdriver]--,
This
unit
Note:
Note
that
this
unit
will
be
seriously
damaged
if
this
set
ting
is
not
made
correctly.
FOR
UNITED
KINGDOM
ONLY
BE
SURE
TO
READ
THE
CAUTION
FOR
AC
POWER
SUPPLY
CORD
ON
PAGE
3
BEFORE
PROCEEDING
TO
THE
STEP
4j
.
E
Connect
the
AC
power
supply
cord
after
you
have
connected
all
other
cables
and
cords.
The
configuration
of
the
AC
outlet
and
AC
power
supply
cord
differs
according
to
area.
Amplifier
or
receiver
(not
included)
(L)(R)(R)(L)
Compact
disc
player
(not
included)
SYNCHRO
EDIT
REMOTE
-L-type
cable
(not
included)
Household
AC
outlet
(Not
supplied
for
United
Kingdom,
Europe,
Australia
and
N.Z.)
If
the
power
plug
will
not
fit
your
socket,
use
the
Dower
Dlua
adaDtor
(included!
(For
areas
except
Australia
and
Insertion
of
Connector
Even
when
the
connector
is
perfectly
inserted,
depending
on
the
type
of
inlet
used,
the
front
part
of
the
connector
may
jut
out
as
shown
in
the
drawing.
However
there
is
no
problem
us¬
ing
the
unit.
Placements
hints
If
this
unit
is
placed
near
a
receiver
or
a
tuner,
a
‘‘hum”
noise
may
be
heard
during
tape
playback,
recording,
or
AM
recep¬
tion
of
the
receiver
or
the
tuner.
If
this
occurs,
leave
as
much
space
as
possible
between
the
units,
or
place
them
where
there
is
the
least
amount
of
“hum”.
“REMOTE
CONTROL
IN”
terminal
Make
a
connection
from
this
terminal
to
the
control
terminal
for
a
cassette
deck
with
a
Technics
amplifier
or
a
Technics
receiver.
(For
detailed
information,
refer
to
the
operating
instructions
of
the
Technics
amplifier
or
the
Technics
receiver.)
“REMOTE
CONTROL
OUT”
terminal
Make
a
connection
from
this
terminal
to
the
“REMOTE
INPUT”
terminal
of
a
Technics
graphic
equalizer
or
to
the
"REMOTE"
ter¬
minal
of
a
Technics
compact
disc
player.
(For
detailed
information,
refer
to
the
operating
instructions
of
the
Technics
graphic
equalizer
or
the
Technics
compact
disc
player.)
“SYNCHRO
EDIT”
terminal
Make
a
connection
from
this
terminal
to
a
terminal
that
has
the
synchro-edit
function
of
a
Technics
compact
disc
player.
See
page
17.
(Contact
your
dealer
for
details.)
