Technics SL-1200M7L User Manual

Getting started
17

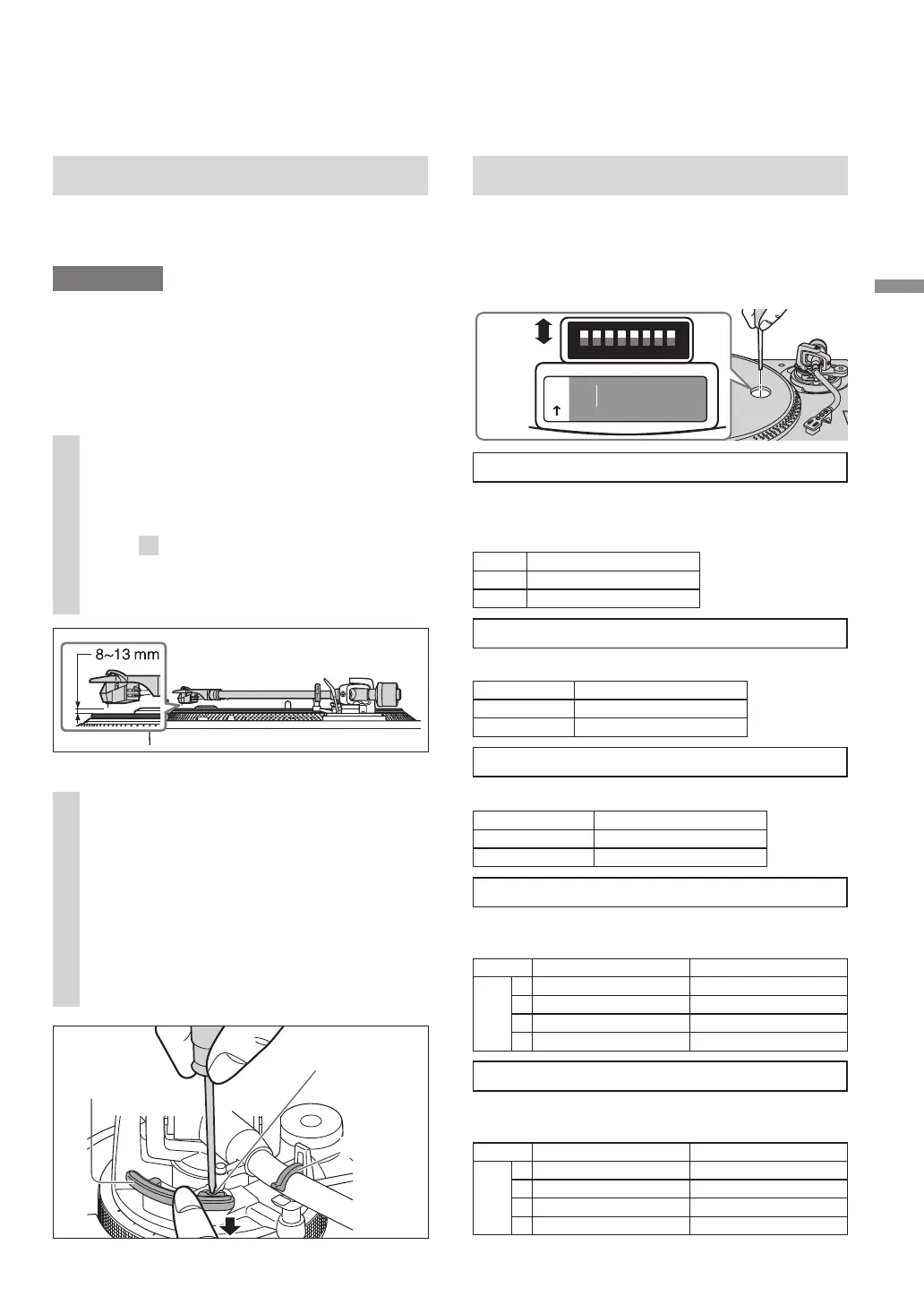

Armlift height
Make an adjustment according to your
cartridge if necessary.
Preparation

Put a record on the turntable.

Remove the stylus cover, taking care not
to damage the stylus, then release the arm
clamp.

Lift the cue lever and move the tone arm over
the record.
1
Check the armlift height (distance
between the stylus tip and record
surface).
If adjustment is needed, go to
step
2
.

The armlift height is factory-adjusted to
8 to 13 mm.
Operation settings
Allows for LED colour setting, reverse playback
setting, 78 rpm setting, torque setting and brake
setting.
①
Turn the unit off and pull out the power plug.
②
Adjust as desired by setting the switches with
a fine Phillips head screwdriver and the like.
ON
OFF
ON
ON LED REV 78 TQ1 TQ2 BK1 BK2
12345678
Allows you to select red or blue for the colour of the
strobe light, speed select buttons, pitch range select
button and RESET LED lamp.
Switch no.: 1 (LED)
Red
OFF (Factory setting)
Blue ON
LED colour setting
Allows you to disable or enable reverse playback. (

19)
Switch no.: 3 (REV)
REV disabled
OFF (Factory setting)
REV enabled ON
Reverse playback setting
Switch no.: 4 (78)
78 rpm disabled
OFF (Factory setting)
78 rpm enabled ON
Allows you to disable or enable 78 rpm. (

19)
78 rpm setting
Allows you to select from four levels of strength to
adjust the torque.
Switch no.: 5 (TQ1) Switch no.: 6 (TQ2)
High
①
ON ON
⇔
②
OFF ON
③
OFF (Factory setting) OFF (Factory setting)
Low
④
ON OFF
Torque setting
Switch no.: 7 (BK1) Switch no.: 8 (BK2)
High
①
OFF ON
⇔
②
OFF (Factory setting) OFF (Factory setting)
③
ON OFF
Low
④
ON ON
Allows you to select from four levels of brake strength
to stop the turntable after [START-STOP] is pressed.
Brake setting
Switch no.
2
Return the tone arm to the arm
rest, clamp it with the arm clamp
and while pressing the armlift
down with your finger, turn the
screw to adjust the height.

Turning the screw clockwise lowers the
armlift.

Turning the screw anti-clockwise raises
the armlift.
1
2
Armlift screw
Armlift
Arm clamp
SL-1200M7LEB.indd17SL-1200M7LEB.indd17 2022/01/2514:23:342022/01/2514:23:34

Technics SL-1200M7L Specifications

General

Drive Method	Direct Drive
Type	Manual Turntable
Wow and Flutter	0.025% WRMS
Tonearm Type	Universal Static Balance
Tonearm Effective Length	230 mm
Tonearm Overhang	15 mm
Power Consumption	8 W
Motor	Brushless DC motor
Turntable Speeds	33 1/3, 45 rpm
Platter	Aluminum die-cast, 332 mm diameter
Cartridge Weight Range	5.6 - 12.0 g 14.3 - 20.7 g (including headshell)
Terminals	Ground Terminal x 1
Dimensions	453 x 353 x 169 mm
Weight	9.6 kg
Starting Time	0.7 sec (33-1/3 rpm)
Signal-to-Noise Ratio	78 dB (DIN-B)
Tracking Force Range	0-4 g
Power Supply	AC 120 V, 60 Hz
