Technics SL-1200M7L User Manual

08
Numbers such as (

00) indicate reference pages.

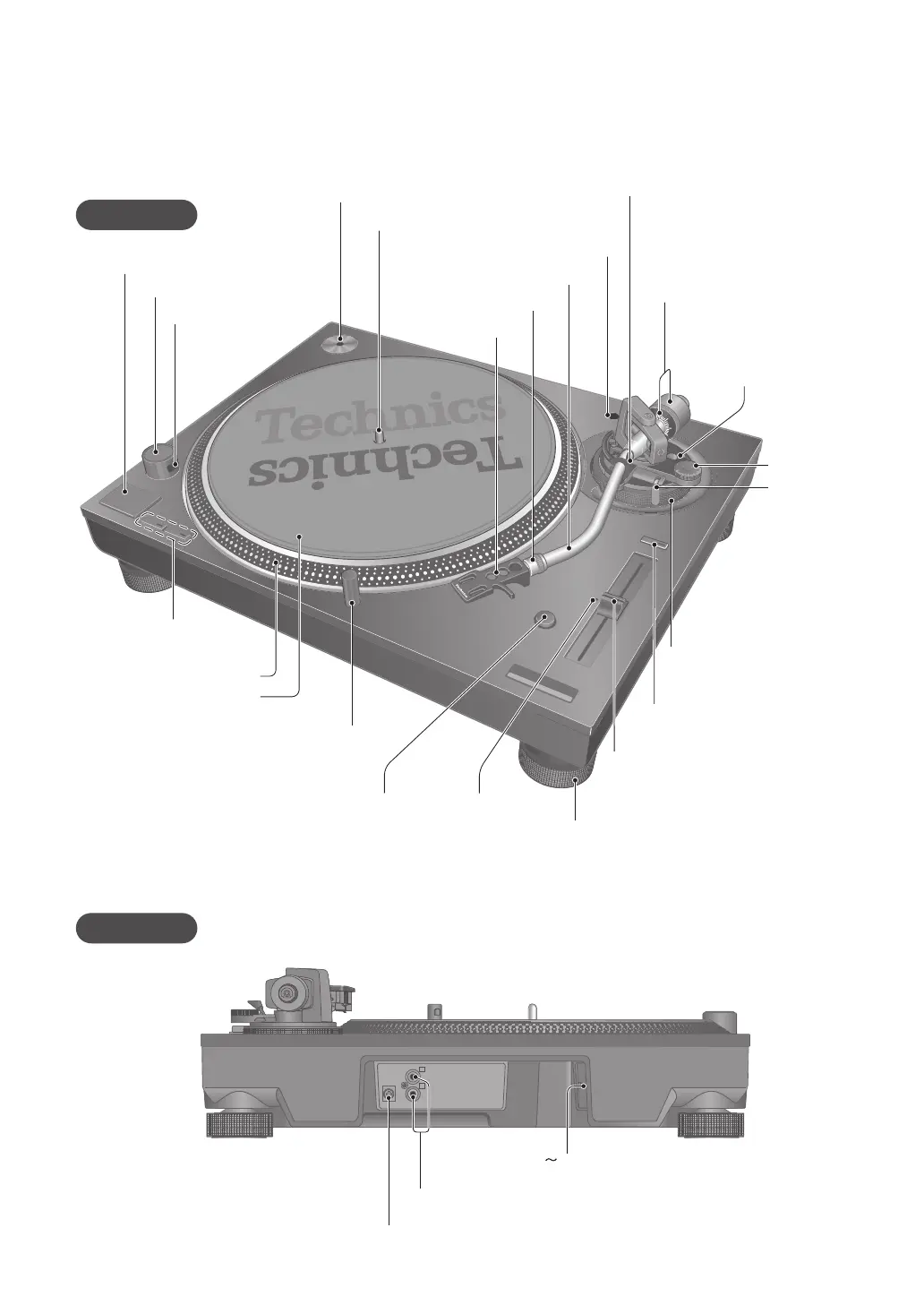

Parts Name
Balance weight (

11)
Stylus pressure
control (

14)
Arm lock
(

16)
Arm-height
control ring
(

16)
Anti-skating
control
(

15)
Pitch range select
button (

20)

Arm clamp (

14)
Arm rest (

14)
Cue lever (

14)
Speed select buttons
(

18)


The LED lamps can be set to
blue or red with the LED colour
setting. (Factory setting Red)
(

17)
Turntable (

10)
Slipmat (

10)
Stylus light (

19)
EP record adaptor (

18)
Centre spindle (

10)
Insulator (

13)
START-STOP button (

18)
ON/OFF (power) (

18)
Strobe light (

20)

RESET button
(

19)
RESET LED lamp
(

19)

PITCH ADJ control
(

20)
Head shell (

09)
Locking nut (

09)
Tone arm (

09,11)
Head shell stand (

09)
Back
Front
PHONO output terminal (

12)
AC (
) input terminal (

12)
PHONO earth terminal (

12)
PHONO
EARTH
PHONO OUT
L
R
SL-1200M7LEB.indd08SL-1200M7LEB.indd08 2022/01/2514:23:282022/01/2514:23:28

Technics SL-1200M7L Specifications

General

Drive Method	Direct Drive
Type	Manual Turntable
Wow and Flutter	0.025% WRMS
Tonearm Type	Universal Static Balance
Tonearm Effective Length	230 mm
Tonearm Overhang	15 mm
Power Consumption	8 W
Motor	Brushless DC motor
Turntable Speeds	33 1/3, 45 rpm
Platter	Aluminum die-cast, 332 mm diameter
Cartridge Weight Range	5.6 - 12.0 g 14.3 - 20.7 g (including headshell)
Terminals	Ground Terminal x 1
Dimensions	453 x 353 x 169 mm
Weight	9.6 kg
Starting Time	0.7 sec (33-1/3 rpm)
Signal-to-Noise Ratio	78 dB (DIN-B)
Tracking Force Range	0-4 g
Power Supply	AC 120 V, 60 Hz
