TechniSat TECHNIVOLT 100 User Manual

53
DE
EN

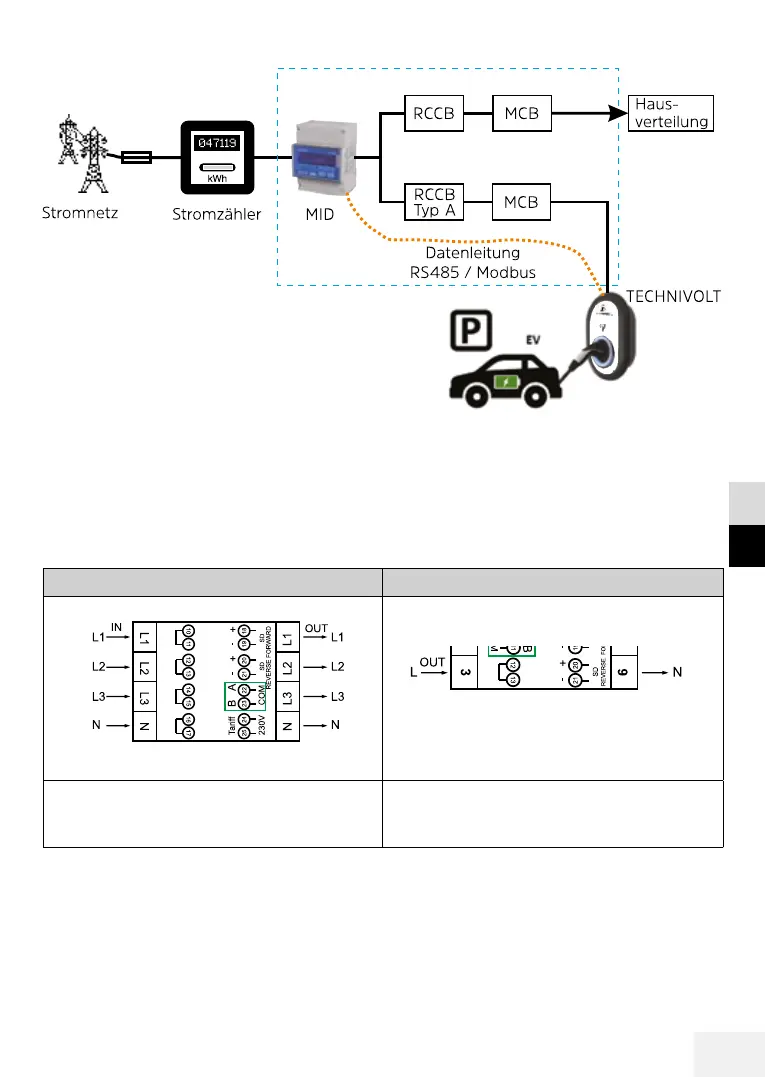

Illustration 17: Schematic of the intelligent control system
The energy meter (MID) should be installed immediately aer the domestic electricity meter
(see Illustration ).
The cabling of the energy meter (MID) can be produced in accordance with the following
information.
Three phase Single phase
Illustration 18: MID 3-phase Illustration 19: MID 1-phase
Pins 22-23: A-B (COM) Modbus connection via
RS485 for a three-phase connection.
Pin 10-11: A-B (COM) Modbus connection via
RS485 for a single-phase connection.
