Connecting the data line to the charging station is carried out as follows Illustration .

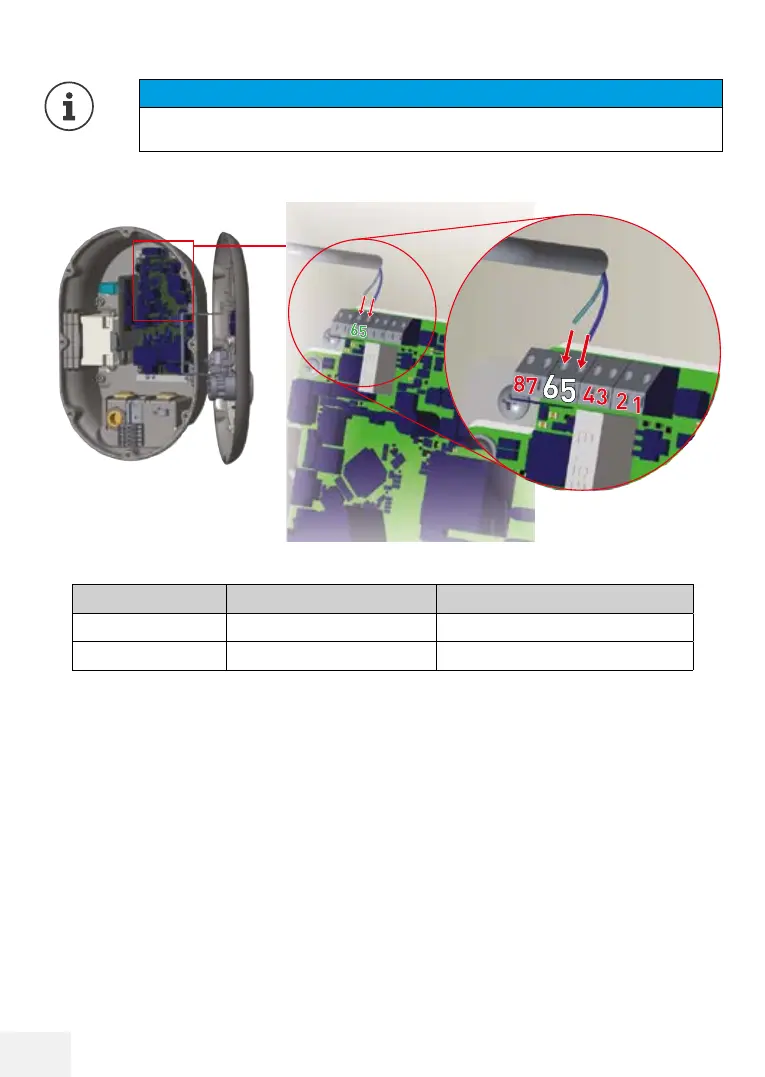

Illustration 20: Connection data line MID
Cable connection Cable colour Description
6 (CN20-2) White blue A (COM)
5 (CN20-1) Blue B (COM)
Table 8: Connection data line MID
NOTE
Introduction of the data line into the charging station is described in Chapter
„9.2 Data cable connection“, Page 47.
