Operation

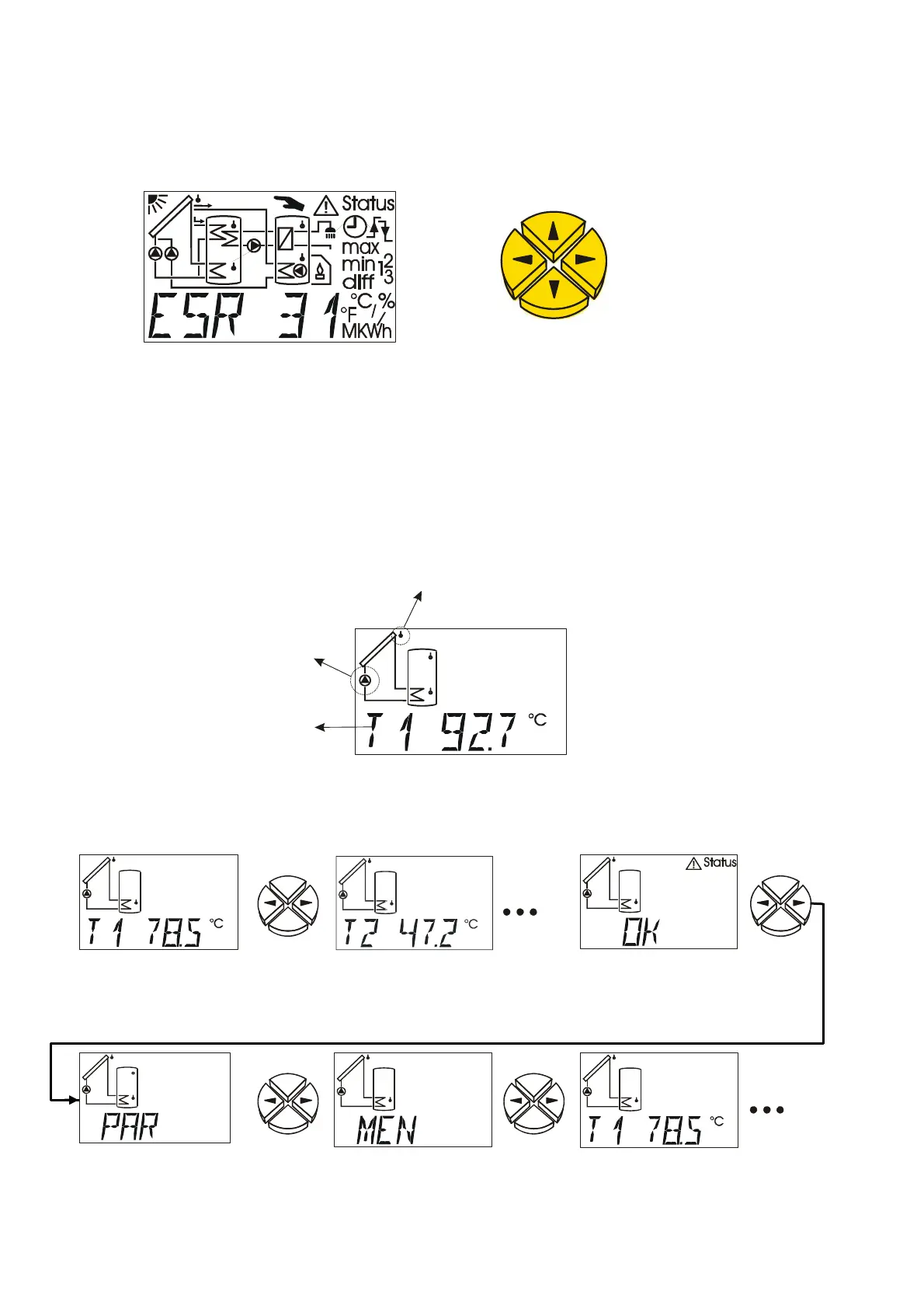

The large display contains all of the icons for all of the important information and a field for
plain text. Navigation with the co-ordination keys is adapted to the display structure.



 



 = Navigation keys to select the display and change parameters.
 = Enter a menu, release a value to change using the navigation keys.
 = Return to the last menu level selected, exit the setting of parameters for a value.
In the main level, the left/right arrows  are the navigation keys to select the desired
display, such as collector or storage tank temperature. A different sensor symbol flashes for
each pressure and the corresponding temperature is displayed.
The main level
Temperature
Sensor 1
Temperature
Sensor 2
Status display
"OK" only displays
if active
function control
Parameter
menu PAR
Menu MEN Temperature
Sensor 1
Sensor symbol flashes: the
temperature for this sensor is
displayed
Pump symbol flashes:
the output is active
(pump is running)
Current temperature
of sensor 1
