-13-
POWER STANDBY/ON Button
Press STANDBY/ON button to turn the power on.
Press it again to turn the system off (power standby
mode).
The indicator lights up in power standby mode and goes
out when this unit is turned on.
MUTE Button
Used when you need to reduce the volume for a while.
If you press this button, the volume will reduce to
minimum.
SPEAKER Select Buttons
With the unit in the STEREO mode, SPEAKERS A and B
can be selected simultaneously. If the unit is in any of
the SURROUND MODEs (DTS, DOLBY DIGITAL, DOLBY
PRO LOGIC, 3 STEREO, other SURROUND MODES),
speaker selection is automatically limited to SPEAKERS
A only.
BASS/TREBLE Tone Controls
These two tone controls-BASS and TREBLE- can be
used to obtain a “flat” frequency response or a tone
which suits your individual listening preference. The
Bass control adjusts low frequencies and the TREBLE
control adjusts the high frequencies.
BALANCE Control
This control is used to adjust the balance between the
left and right channels. Normally set to the center
position.
BASS BOOST Switch
Bass frequencies (lows) can be increased by pressing
the bass boost switch. However, do not use the bass
boost feature at high volume levels or permanent
damage may occur to your speakers.

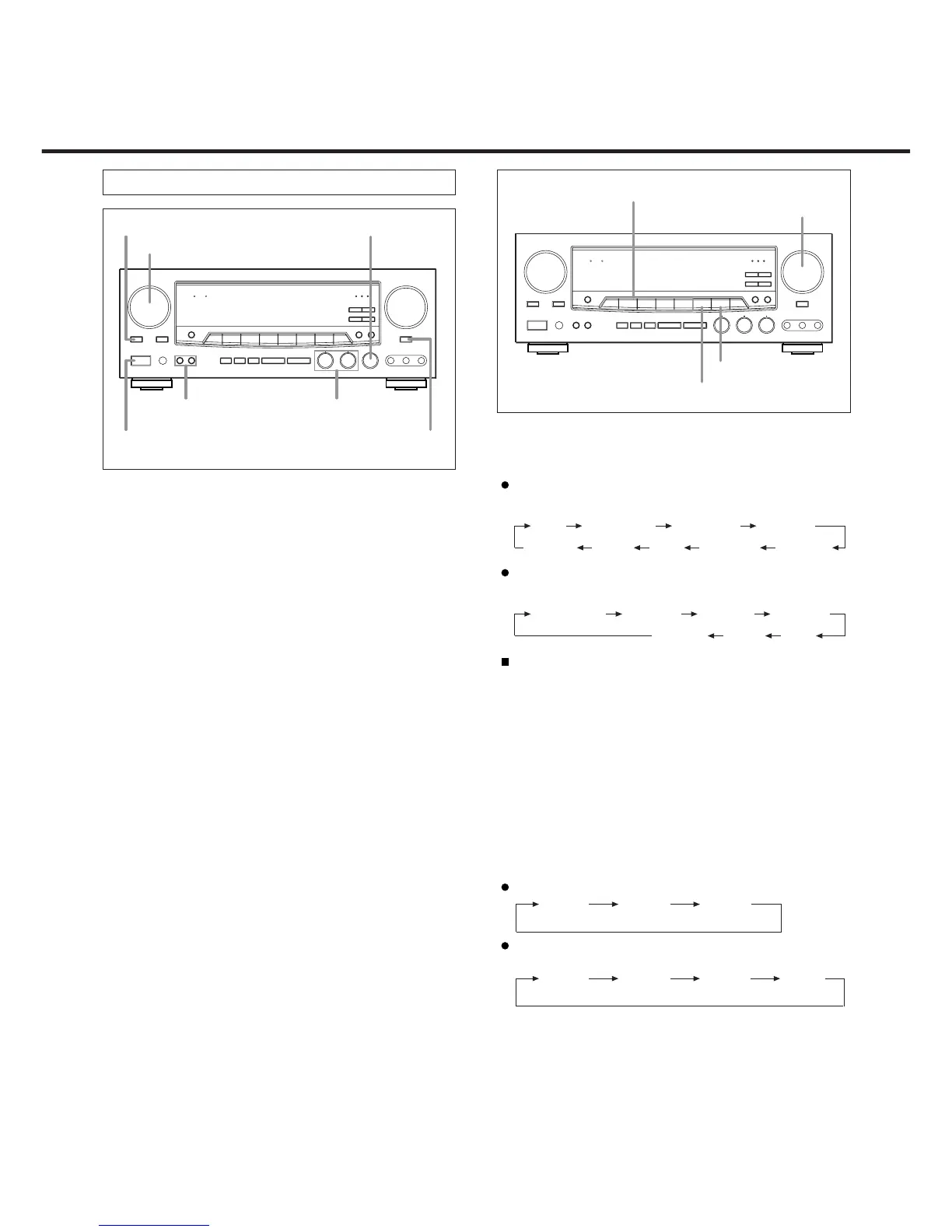

Audio Adjustments
MUTE BALANCE
FUNCTION (Source) Selector
POWER
(STANDBY/ON)
SPEAKERS
BASS BOOST
BASS/TREBLE
(Tone controls)
SURROUND MODE Button
The Surround mode changes whenever you press this
button.
For digital equipment : CD, TV/ VIDEO 2, AUX/ VIDEO 3,
DVD/VIDEO 4. (when selected digital 1, 2 or 3 input.)
DTS Dolby Digital PRO-LOGIC 3 STEREO
CHURCH DISCO HALL STADIUM THEATER
For analog equipment : TUNER (AM/FM), TAPE 1. TAPE
2 MONITOR, VCR 1.
PRO-LOGIC 3 STEREO THEATER STADIUM
CHURCH DISCO HALL
CAUTION
You can not select DTS/DOLBY DIGITAL mode in
Analog mode. To select DTS/DOLBY DIGITAL mode,
you should select digital 1, 2 or 3 mode with the
DIGITAL INPUT button.
SURROUND ON/OFF (STEREO) Button
Press to switch from surround mode to stereo mode.
When operating unit in Dolby Digital mode, this button
operates as down mix (2 channel) function and the
“STEREO” indicator will light up.
DIGITAL INPUT (SELECT) Button
Press this button to switch the digital signal. (When CD,
TV/ VIDEO 2, AUX/ VIDEO 3, DVD/ VIDEO 4 selected.)
When DTS/Dolby Digital Mode
Digital 1 Digital 2 Digital 3
(coaxial) (optical) (optical)
When PRO LOGIC, 3 STEREO, other Surround, Stereo
Mode
Digital 1 Digital 2 Digital 3 Analog
(coaxial) (optical) (optical)
MASTER VOLUME CONTROL
Adjust the overall sound volume from the front, center,
(sub woofer) and rear speakers with this control.
Pre-Out (center, sub woofer) can also be controlled.
SURROUND Mode
SURROUND ON/OFF
MASTER VOLUME
DIGITAL INPUT
