OSD (ON SCREEN DISPLAY)
OSD “ON” POSITION :
1) When you turn your receiver's power on or change its
functions, a display appears on your television screen
showing the current status of the system, including the
type of video and audio input being monitored, the
type of audio output and the status of the Tape 2
monitor. If the Tape 2 monitor is ON, the sound being
heard is the sound being recorded through the Tape 2
channel. If the Tape 2 monitor is OFF, the sound being
heard is coming directly from the source of the sound.
With this display on-screen, the type of input being
monitored can be changed by pressing the appropriate
key in the top section of the remote control. This menu
will remain on the screen for only 7 seconds without
input.
To change these settings, press the ENTER button to bring
up the MAIN MENU. This is the only operation that can
be performed on this menu, which will disappear after 7
seconds without input.
This menu will remain on the screen for 20 seconds
without input. If it disappears before you have made a
selection, press the OSD ON button then the ENTER
button to bring it back.

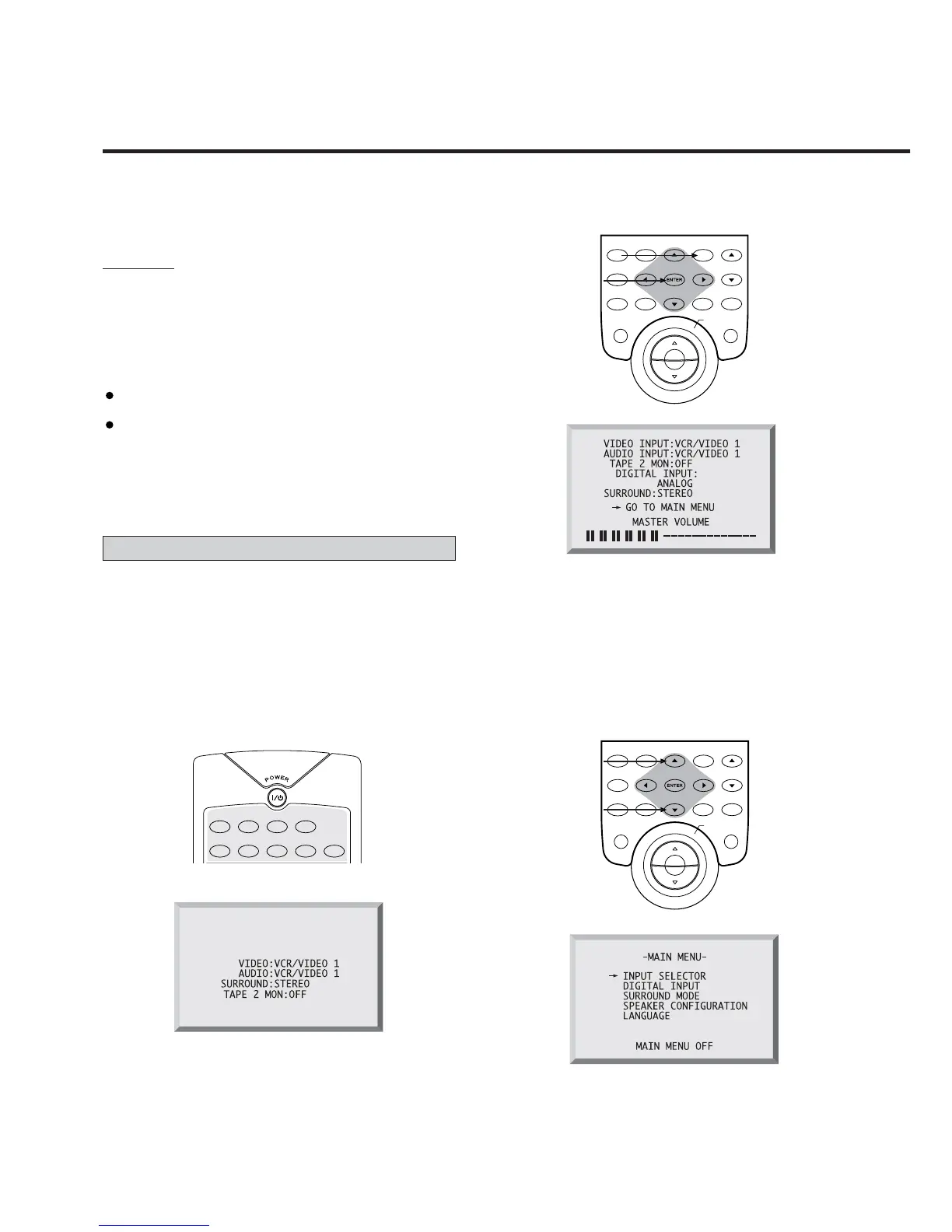

2) When the OSD ON/OFF button on the remote control is
pressed, a display appears which shows the current
status of the input being monitored:
3) When MAIN MENU appears, move the arrow cursor
using the up/down buttons located above and below
the ENTER button to select the function you wish to
change, then press ENTER.
When your Techwood AV Digital Surround Receiver is
connected to a television, you can operate the unit with
the remote control by making selections from on-screen
menus. If a menu remains on the screen for a period of
time without a selection being made, the display will
disappear. Most menus disappear after 20 seconds.
Important:
The on-screen display will not operate unless
the receiver is connected to the television with a video
cable from the monitor out jacks.
Before using the on-screen display, the ON SCREEN
SELECTOR SWITCH on the rear panel of the receiver must
be set to the type of video connection being used to supply
video signal from your receiver to your TV monitor.
VIDEO : Set the switch to this position when using the
yellow VIDEO MONITOR OUT jack.
S-VIDEO : Set the switch to this position when using
the 4 pin S-VIDEO MONITOR OUT jack.
The on-screen display will only appear when the video
signal matches the type of signal selected with the
selector switch.
