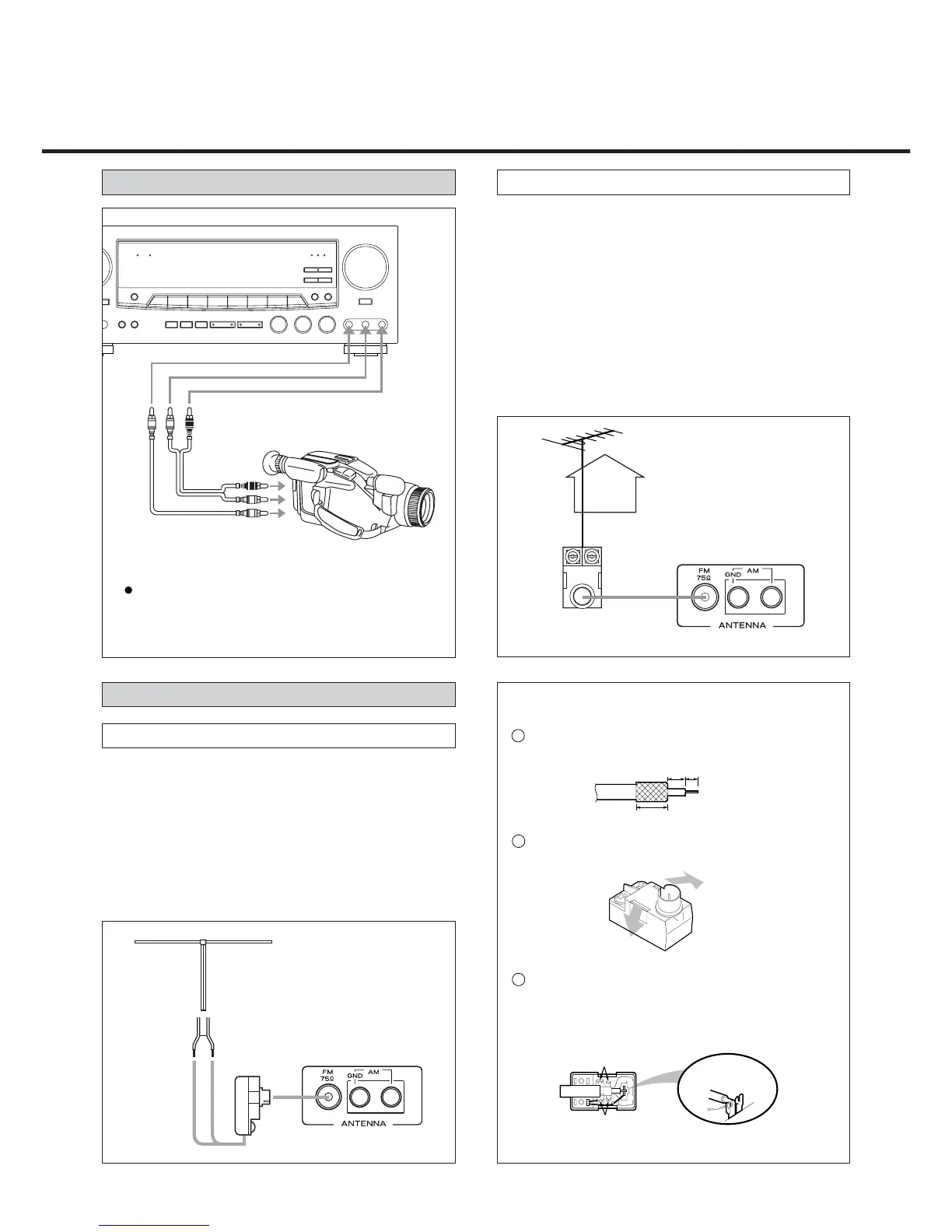

CONNECTIONS
FM Indoor Antenna
In an area with strong FM signals, the “T”-type FM antenna
provided is sufficient.
Extend this into a “T” shape and connect the two wires at
the base of the “T” to the provided matching transformer,
as shown.
After completing connection, plug the transformer into the
“FM 75 ” socket. Extend the top of the “T” and fix with
thumb tracks, or the like, to a wall or window frame for the
best possible reception.
AUDIO R
AUDIO OUT
VIDEO OUT
AUDIO L
VIDEO
FM Outdoor Antenna
In an area where FM signals are weak, it will be
necessary to use a 75-ohm unbalanced-type outdoor FM
antenna using the provided matching transformer, as
shown. Generally, a 3-element antenna will be sufficient; if
you live in an area where the FM signals are particularly
weak, it may be necessary to use one with 5 or more
elements.
Connect the coaxial cable of the antenna to the matching
transformer as shown.
After completing connection, plug the transformer into the
“FM 75 ” socket.
VIDEO CONNECTIONS
Connecting Antennas
AUX/
VIDEO 3 INPUT
Connect the video camera recorder AUDIO
OUTPUT to the AUDIO (L)/(R) jacks and VIDEO
OUT to the VIDEO jack of the AUX/ VIDEO 3
INPUT.
Video Camera Recorder, etc.
“T”-type FM Antenna (300 )
(provided)
Matching Transforme
(provided)
Outdoor FM Antenna (75 )
How to connect a coaxial cable to the matching
transformer
Strip the cable and dress it as shown.
Press both side tabs outward to remove the
cover.
Wrap the core conductor around the central
metal fixture as shown. Crimp the jagged metal
fixtures so they hold the braided portion using
pliers, etc. Put the cover back in place.
