CONNECTIONS

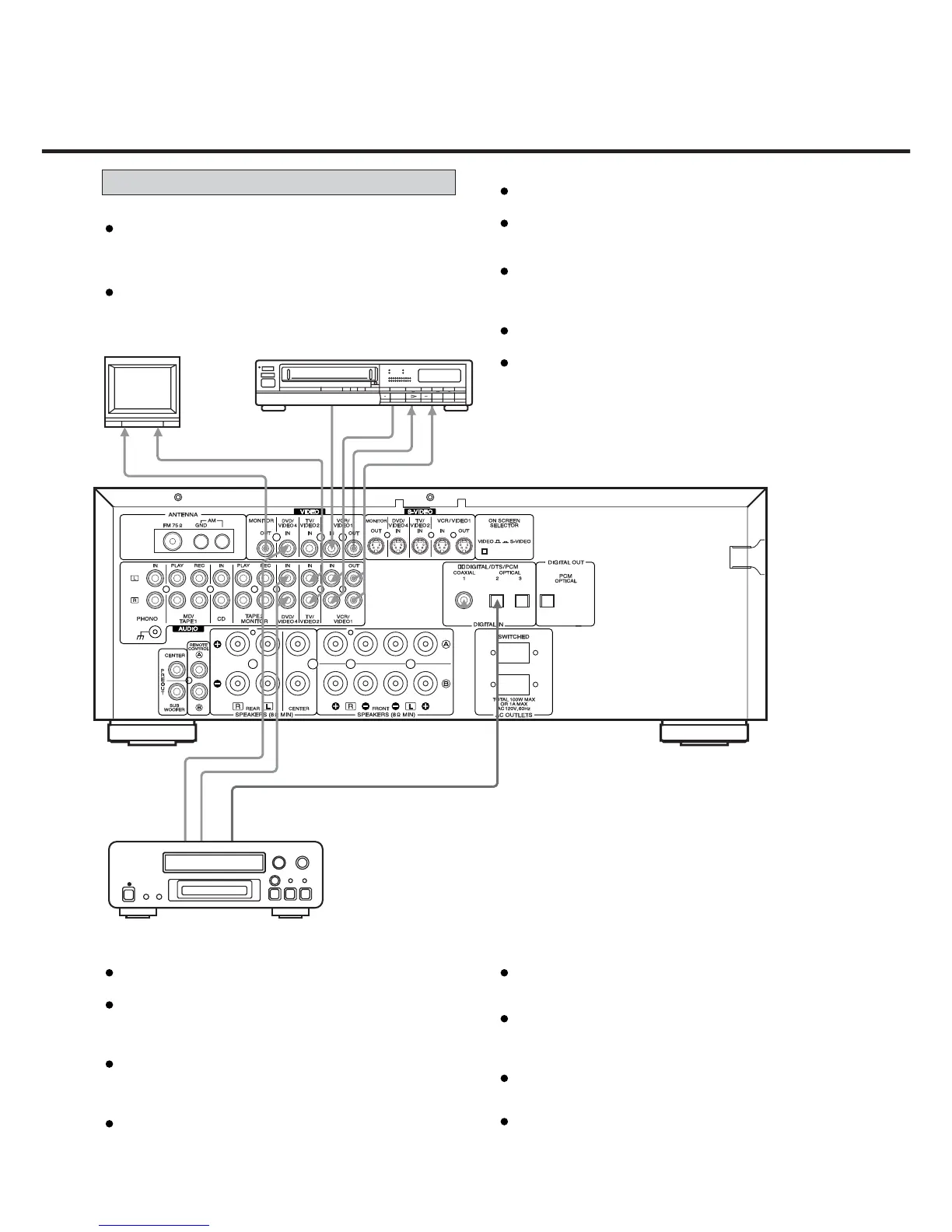

Connecting Video Equipment
AUDIO signal jacks
Connect the video deck (VCR) LINE output (AUDIO
OUT) jacks to the IN (VCR/VIDEO 1) jacks, and the
video deck (VCR) LINE input (AUDIO IN) jacks to the
OUT (VCR/VIDEO 1) jacks.
Connect the TV AUDIO OUTPUT jacks to the VIDEO 2
IN jacks.
VIDEO signal jacks
Connect the TV monitor VIDEO IN jack to the
MONITOR OUT jack.
Connect the video deck (VCR) VIDEO OUT (VIDEO)
jack to the IN (VCR/VIDEO 1) jack.
Connect the video deck (VCR) VIDEO IN jacks to the
OUT (VCR/VIDEO 1) jack.
Connect the DVD player or TV VIDEO OUTPUT jacks
to the VIDEO 2 or VIDEO 4 IN jacks.
DIGITAL OUT (PCM OPTICAL) jack
Connect the CD-R (or MD deck) DIGITAL IN iack to the
DIGITAL OUT jack. (Use the optional optical fiber
cable.)
AUDIO IN
VCR/VIDEO 1
Video Deck (VCR)
TV
VIDEO IN
AUDIO OUT
VIDEO IN
AUDIO OUT
VIDEO OUT
VIDEO 4
DVD Player
AUDIO OUT
DIGITAL OUT (OPTICAL)
VIDEO OUT
S-VIDEO signal jacks
Connect the TV monitor S-VIDEO IN jack to the MONITOR
OUT jack.
Connect the video deck (VCR) S-VIDEO OUT jack to the
S-VIDEO VCR IN jack. Connect the video deck (VCR)
S-VIDEO IN jack to the S-VIDEO VCR OUT jack.
Connect the TV or DVD player S-VIDEO OUTPUT jacks to
the S-VIDEO TV/VIDEO 2 IN jack or S-VIDEO DVD/VIDEO 4
IN jack.
Notes :
The FUNCTION (source) selector for the S-VIDEO inputs
and VIDEO inputs work in conjunction with each other.
This unit’s S-VIDEO (IN/OUT) jacks and VIDEO (IN/OUT)
pin jacks have independent circiut structures, so that
video signals input from the S-VIDEO jacks are only
output from the S-VIDEO jack outputs and video signals
input from the VIDEO pin jacks are only output from the
VIDEO pin jack outputs.
DOLBY DIGITAL/DTS/PCM DIGITAL IN (1, 2, 3) jacks
If the player is provided with a DIGITAL OUTPUT jack,
connect it to the DIGITAL IN jack. (Use the optional
coaxial cord or optical fiber cable.)
When an optical fiber cable is used for connection,
remove the caps protecting both ends of the optical cable
and the connectors.
Notes :
When both the analog AUDIO IN (VIDEO 2/4) and
DIGITAL IN (1, 2, 3) of the receiver are connected, signals
input to the DIGITAL IN jack (1, 2, 3) have priority.
For better sound quality, we recommend using digital
rather than analog connections when connecting the DVD
player or TV.
