2-2 I/O Terminal

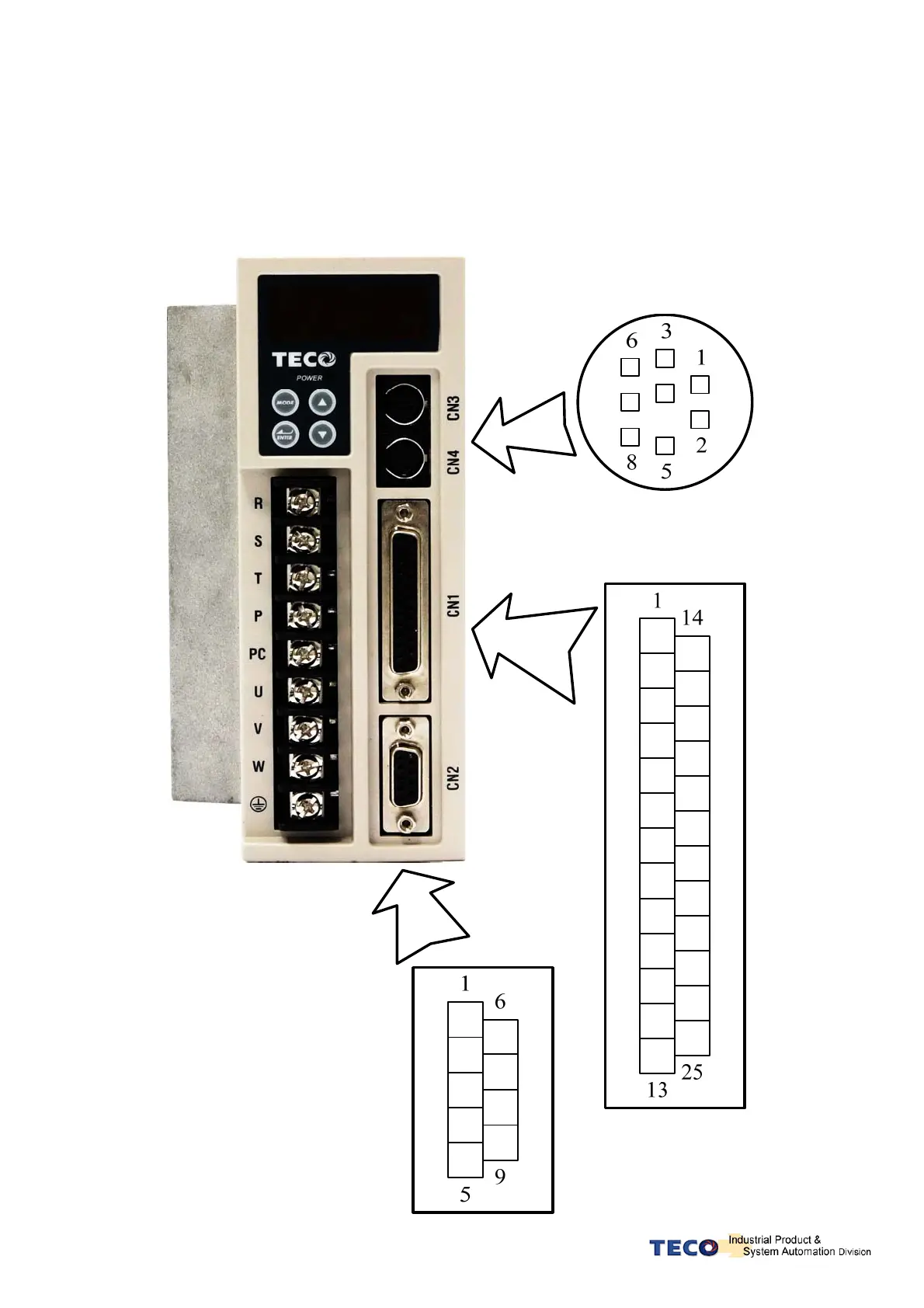

There are 4 groups of terminal, which contain CN3 and CN4 communication terminal, CN1 control I/O signal
terminal and CN2 encoder terminal. The diagram below displays all positions for the terminal.
CN2 (9 Pins female)
Encoder connector
CN1 (25 Pins female)
Control I/O Signal
CN3,CN4 (8 Pins female)
Communication Connecto
r
