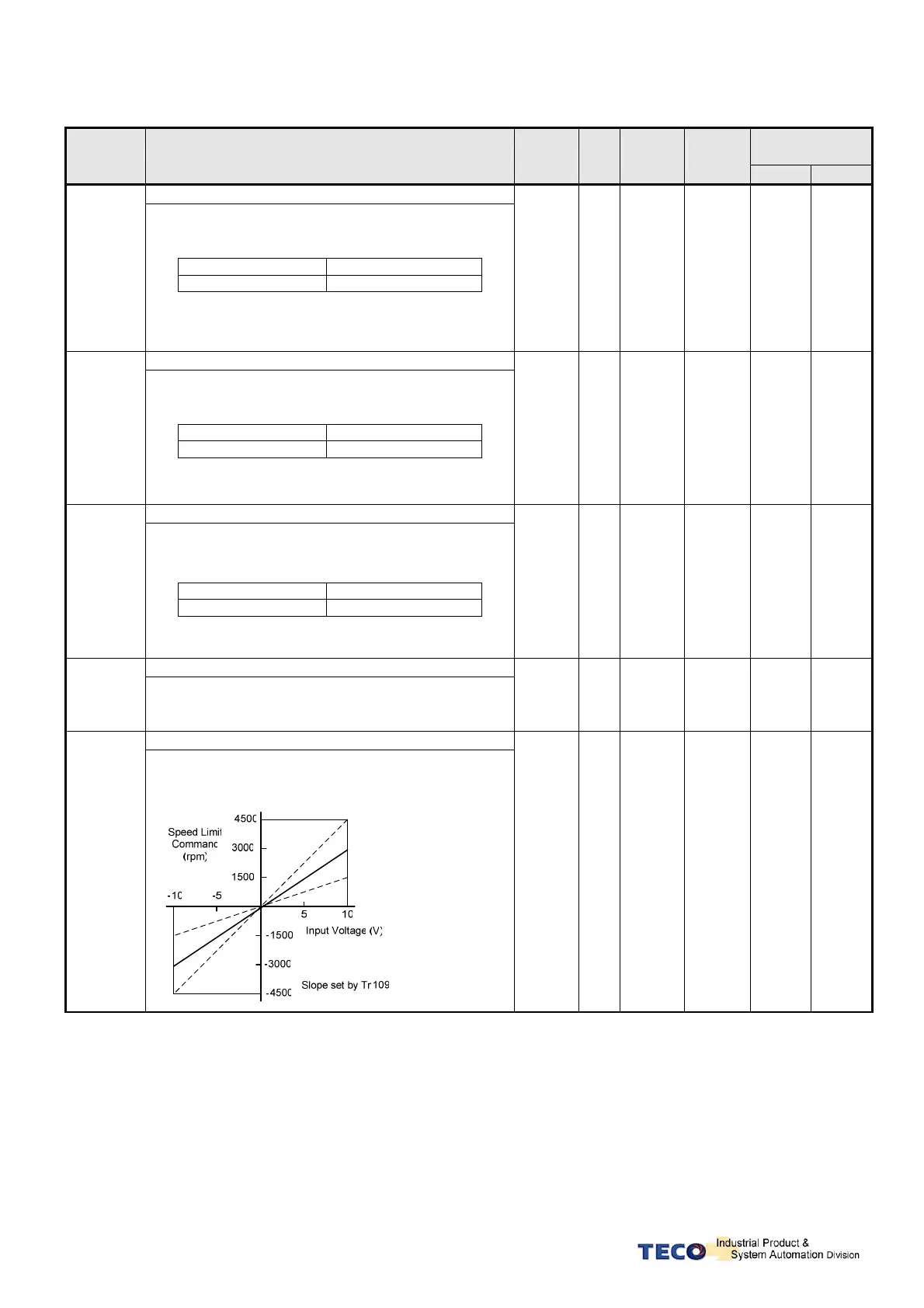

41
Communication
Address
Parameter
Name & Function Default
Unit
Setting
Range
Control
Mode
RS232
RS485
Preset Speed Limit 1. ( Torque control mode)
In Torque control, inpu
t contacts SPD1 and SPD2 can
be used to select Preset speed limit 1. As follows:
Input Contact SPD2
Input Contact SPD1
0 1
Tn105
Note: Input contacts status 1” (ON) and “0” (OFF).
Refer to 5-6-1 to set high or low input logic levels.
100 rpm
0
3000
T 526H
0105H
Preset Speed Limit 2. ( Torque control mode)
Tn106
In Torque control, input contacts SPD1 and SPD2 can
be used to select Preset speed limit 2. As follows:
Input Contact SPD2
Input Contact SPD1
1 0
Note: Input contacts status “1” (ON) and “0” (OFF)
Refer to 5-6-1 to set high or low input logic levels.
200 rpm
0
3000
T
527H
0106H
Preset Speed Limit 3. ( Torque control mode)
Tn107
In Torque control, input contacts SPD1 and SPD2 can
be used to select Preset speed limit 3. As follows:-
Input Contact SPD2
Input Contact SPD1
1 1
Note: Input contacts status “1” (ON) and “0” (OFF)
Refer to 5-6-1 to set high or low input logic levels.
300 rpm
0
3000
T 528H
0107H
Torque output monitor value
Tn108
When the torque level in CW or CCW direction
become greater th
en this value setting, the output
contact INT operate.
0 %
0
300
ALL
C30H
0108H
Analog Speed Limited Proportion Controller
Tn109
This function used for adjusted analog voltage
command compared
with the slope of speed limit
command.
3000 rpm
100
4500
T
C0DH
0109H
