Tecsis F5301 - Page 30

Betriebsanleitung/Operating manual
F5301/F53C1/F53S1
30 BD_BE_907 b www.tecsis.de
Type Model
Signal
Power supply
S# Product no.
UB+/S+ Pin assignment – power supply + / signal +
0V/S- Pin assignment – power supply - / signal -
S-Test SIL-Shift

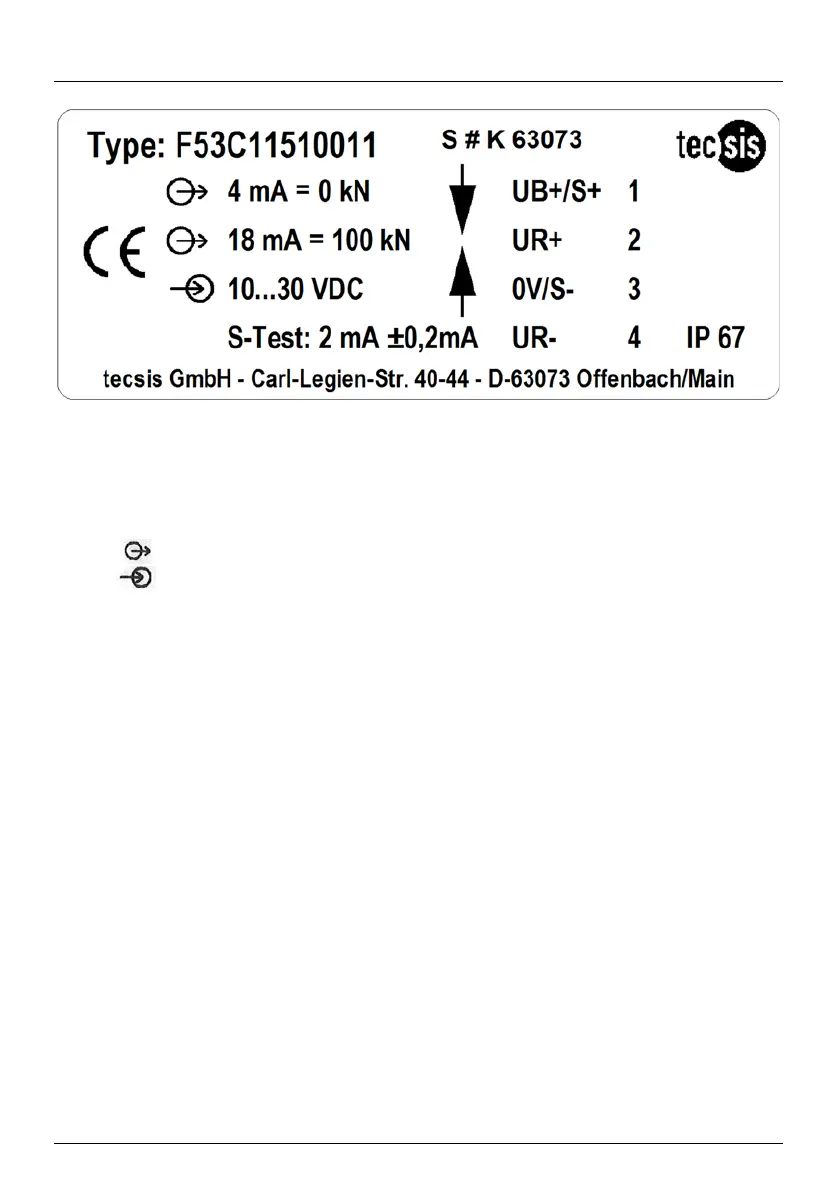

Fig. 3 Name plate version SIL-3 acc. EN 62061:2005 - 1x connecting plug – output
signal 4…20 mA
