Betriebsanleitung/Operating manual
F5301/F53C1/F53S1
36 BD_BE_907 b www.tecsis.de

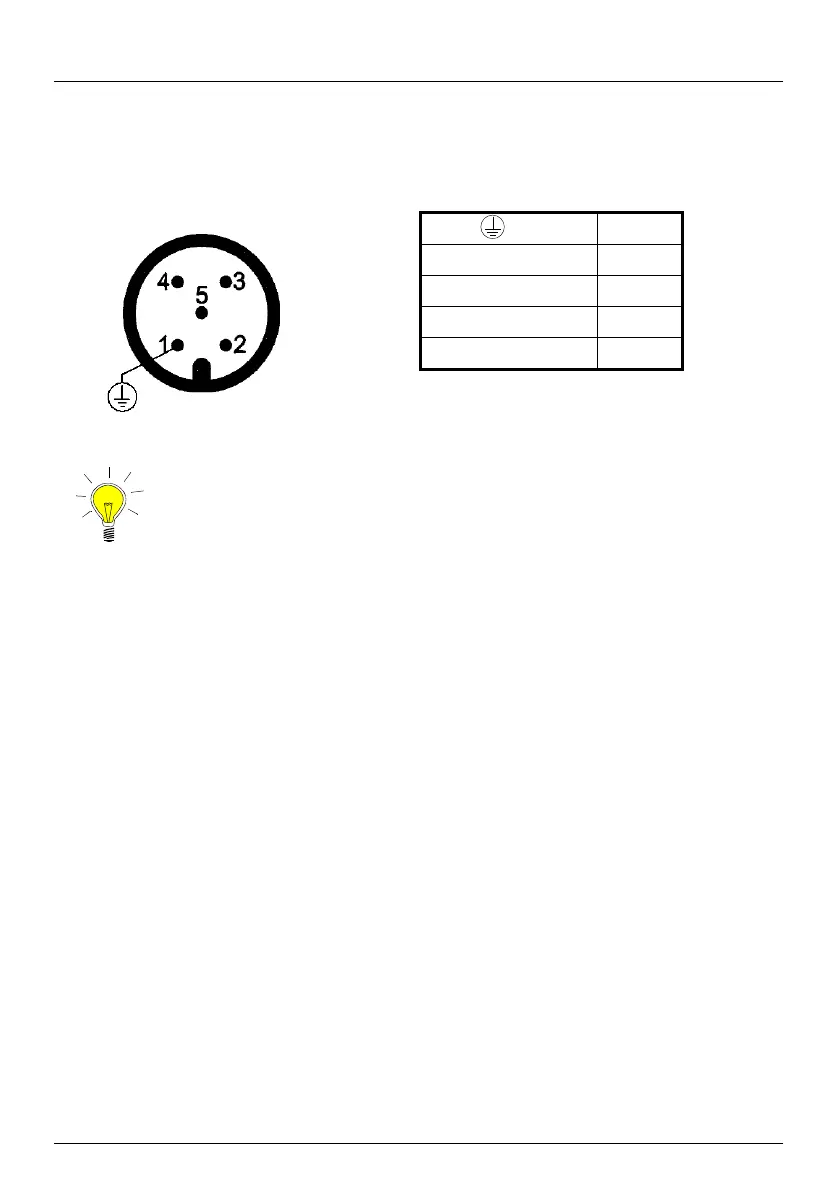

Round connector M12x1, 5 pin
The cable shield is connected to the GND of the load pin.
The shield of the accessory cables is connected to the knurled
nut and therefore the GND of the load pin. Only shielded and low-
capacity cables must be used for extending. The allowed maxi-
mum and minimum lengths of the cable are specified in the ISO
11898-2. The shield must also be properly connected.
1
UB+ (CAN V+) 2
UB- (CAN GND) 3
Bus-Signal CAN-High 4
Bus-Signal CAN-Low 5
