7-10
CONNECTING RODS
Specifications English Std. Metric
Connecting Rod Journal 1.6223 41.206
Diameter 1.6228 41.219
Connecting rod Diameter .6251 15.878
Piston Pin End .6256 15.890
Connecting Rod Thrust Face .988 25.095
.996 25.299
Connecting Rod Thrust Clearance .006 .1510
With Both Rods On Crankshaft .027 .6858
The TVT engine is designed with offset piston pins (not
centered). This aids to centralize the combustion force
on the piston. When installing the connecting rod to the
piston it is critical that the rod be installed correctly.

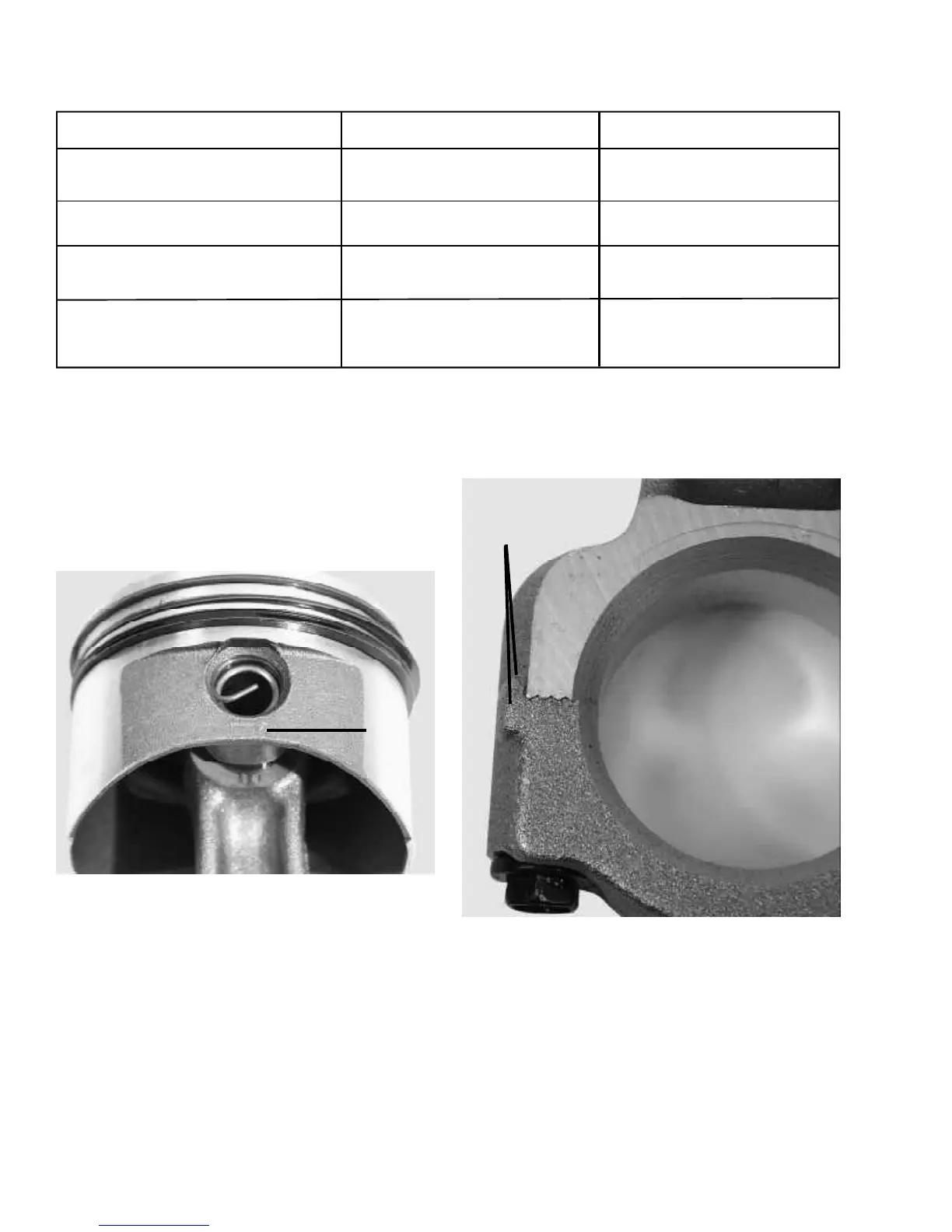

1. Locate the marking (ARROW) on the side of the
piston assembly. (Illust. 7-29)
7-29
áá
ARROW
2. Locate the match marks on the connecting rod
assembly. (Illust. 7-30)
7-30
MATCH
MARKS
