To Utility
Meter
Electric
Panel
Main
Switc h
Switch
Fuses
Electric
Panel
Top-Feed Service With Fusible
Main Switch and Separate Panel
Main Circuit
Breaker
To Utility
Meter
Bottom-Feed Service With Main
Circuit Breaker and Separate Panel
To Utility
Meter
Top-Feed Service With
Combination Circuit Breaker Panel
Electric
Panel
To Utility
Meter
Two Main Circuit Breakers and Two Panels
TED Model 1000 WILL NOT w ork for this
installation

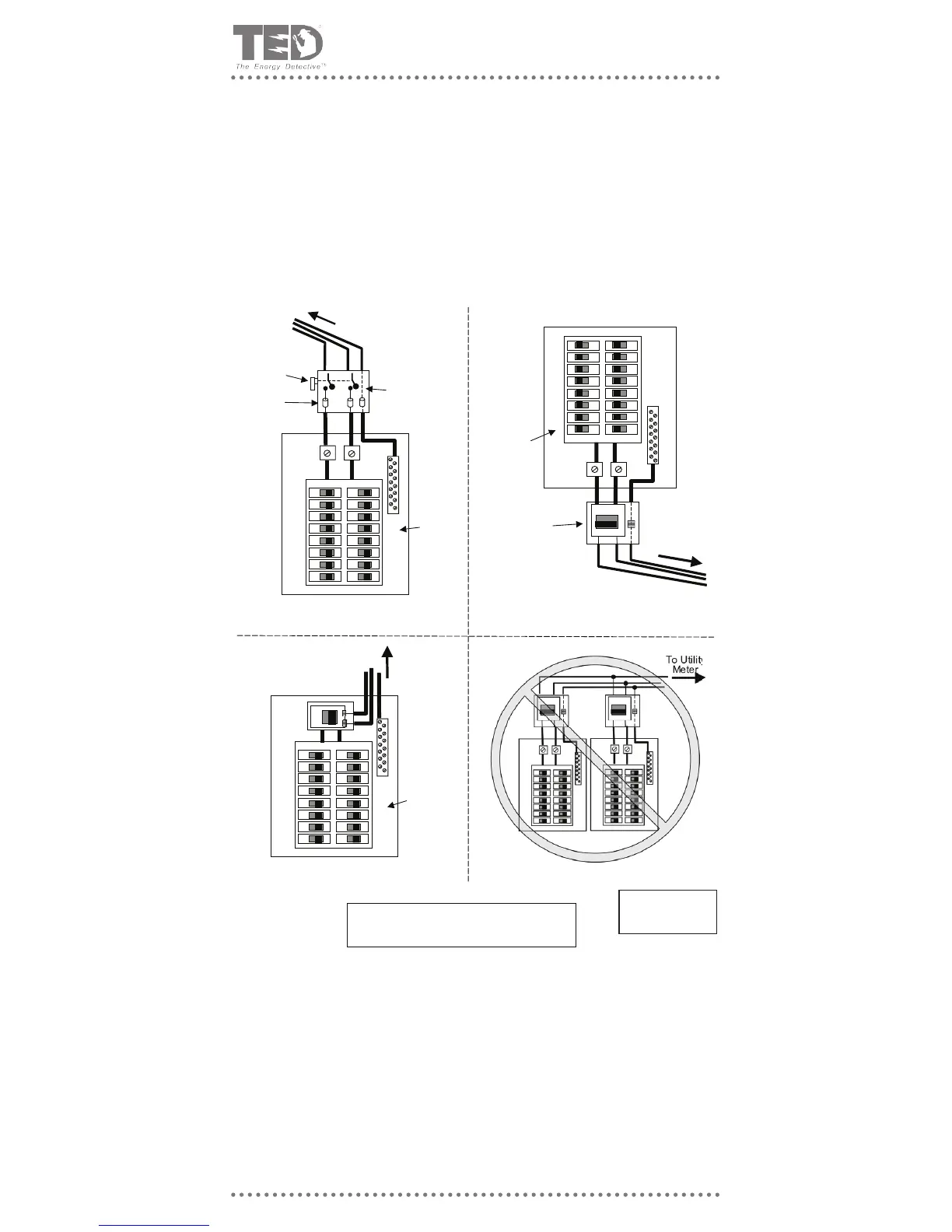

Fig A-2
Typical Service Configuration
Energy, Inc. • 3297 Pacific Street • Charleston, South Carolina 29407 • (843) 766-9800
Page 29
A P P E N D I X A
D E T A I L E D I N S T A L L A T I O N I N S T R U C T I O N S
(Continued)
TED Model 1002
may be used in this
conguration.
