844-AB Sprayer control 14
Software 4.03
Reference Flow Rate Per Section
AB MODE
The flow rate for each section of the sprayer
must be input into the 844-AB console so that
the necessary adjustments can be made
when boom sections are shut off. The console
is programmed to treat the left and right boom
sections as symmetrical; therefore the console
treats the flow rate for the lower left section
(L1) identically to the flow rate of the lower
right section (R1). The flow rate entered for
level 1 will serve as reference flow for L1
and/or R1.

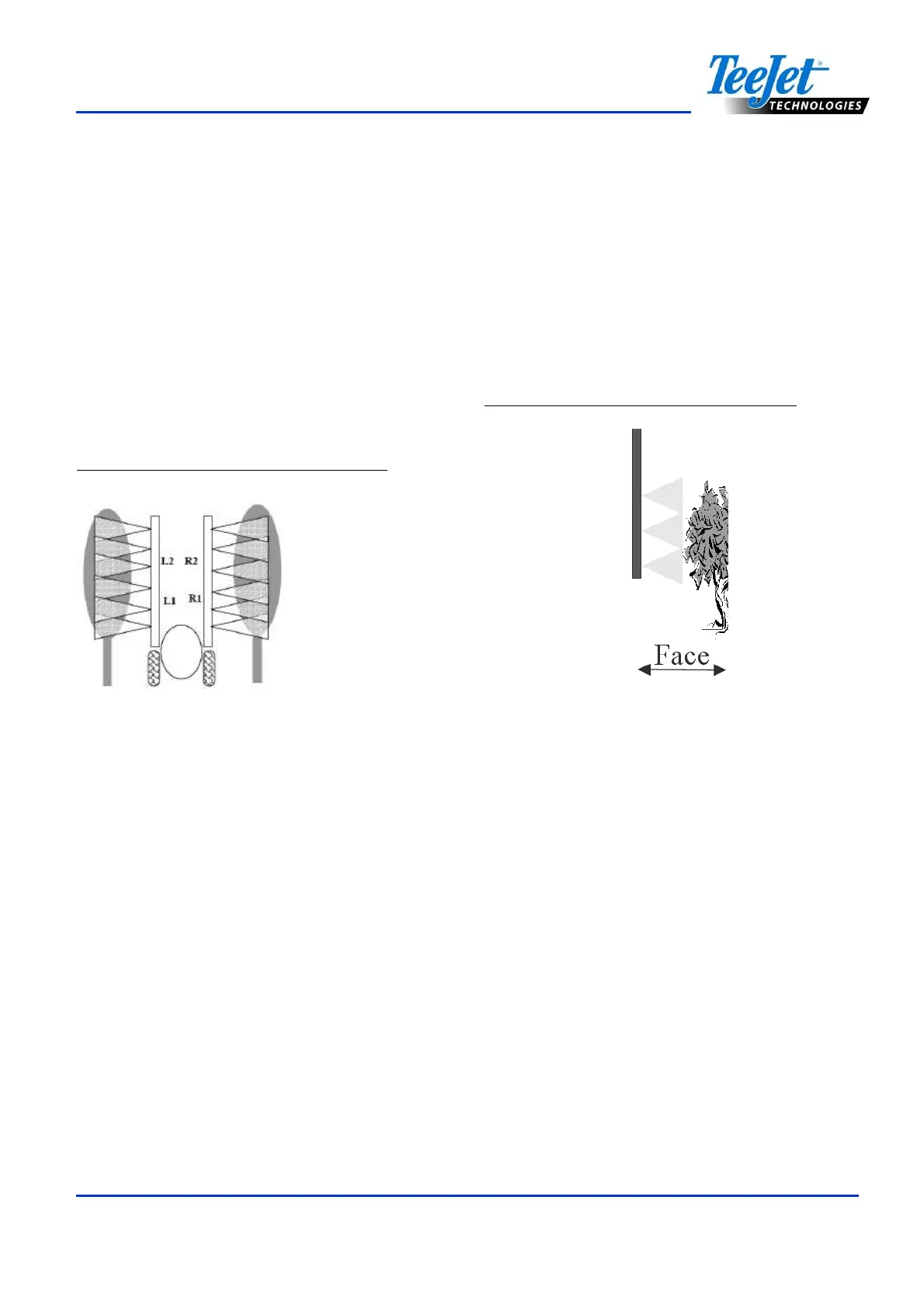

Figure 4-19: AB Flow Rate Illustration
HC MODE
The flow rate for a single nozzle must be input
into the 844-AB console so that the necessary
adjustments can be made when boom
sections are shut off. If several different
nozzles are mounted to spray on a face, they
should be considered as ONE nozzle and the
total flow should be programmed.
Figure 4-20: HC Flow Rate Illustration
