10

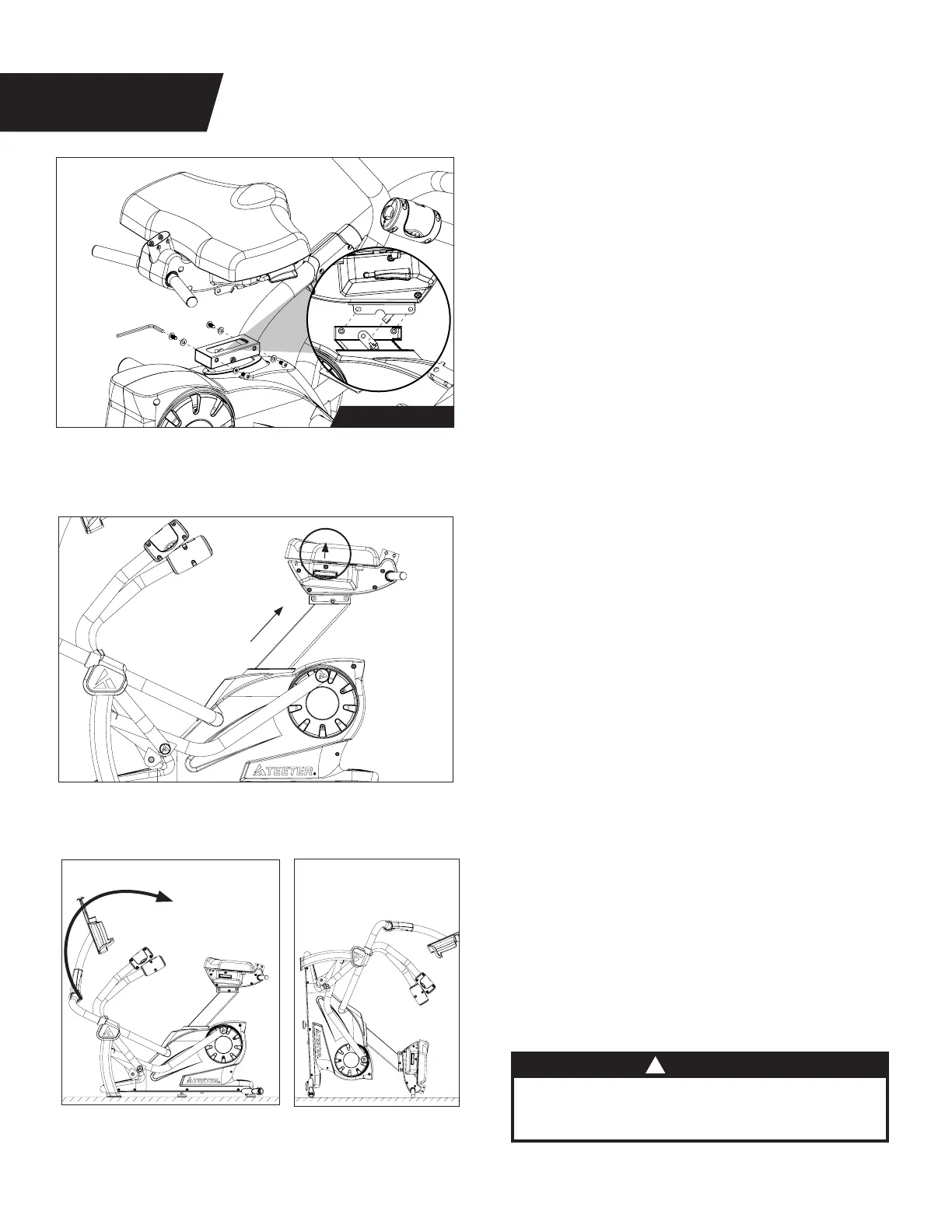

Assemble Lower Seat
Figure 14: Locate the Step 8 Hardware Kit.
Position the Lower Seat into the slot in the
Seat Post on the Base.
TIP: Hold the seat slightly forward, then guide
it down in a backward diagonal direction.
When properly aligned, the round rod
(Actuator) that protrudes out of the Lower
Seat will need to rest inside of the mechanism
in the Seat Post slot.
Install 4 × Bolts and 4 × Washers and hand
tighten.
Figure 15: For ease of assembly, raise the Seat
to the max height by lifting on the Seat Height
Adjustment Lever and pulling up on the Seat.
Proceed to fully tighten all Bolts and Washers
with the 6 mm Allen Wrench.
Figure 16-17: Position the FreeStep to rest
on its back by lifting on the Console Support
Bar until the Seat Handles are resting on the
ground.
NOTE: Transport wheels will engage when
lifting the Console Support Bar. Use Caution
to avoid unintentional movement.
STEP 8
STEP 13 - INSTALL THE LOWER SEAT WHILE
BEING SURE TO GUIDE THE SEAT HEIGHT
ACTUATOR INTO ITS SLOT WHILE SETTING
THE SEAT IN PLACE. INSTALL FOUR (4)
M8X15 BOLTS AND WASHERS BY HAND.
USE HK2070.
8
A
1234567
D
C
B
C
A
D
B
5 3 16 248 7
8
A
1234567
D
C
B
C
A
D
B
5 3 16 248 7
AI DRAWINGS
SHEET 14 OF 40
REV
PROJECT:
DRAWN
UNLESS OTHERWISE NOTED
SURFACE ROUGHNESS PER ANSI B46.1
DIMENSIONING PER ASME Y14.5-2009
WELD SYMBOLS PER AWS A2.4
FINISH:
UOS 63RMS ON
MACHINED
SURFACES OR
AS PROCURED
.X
.XX
.XXX
ANGLE
EXPECTATIONS PROPRIETARY
THE INFORMATION CONTAINED HEREIN
IS PROPRIETARY TO EXPECTATIONS AND
SHALL NOT BE REPRODUCED IN WHOLE
OR IN PART OR USED FOR ANY PURPOSE
EXCEPT WHEN SUCH USER POSSESSES
DIRECT WRITTEN AUTHORIZATION
FROM EXPECTATIONS LLC
SCALE: NONE
SIZE:
D
A
TOLERANCES
UNLESS NOTED
=
.1
=
.03
=
.005
=
1
NICK SOLLER
FILLET RADII: .005-.010
CORNER BREAK: .005-.010
ALL DIMENSIONS IN INCHES
EXPECTATIONS LLC
BONNEY LAKE, WA 98391
DRAWING
LT7
Step 8 Hardware
Figure 14
Figure 15
STEP 16 - FLIP THE MACHINE ONTO ITS BACK.
USED CARBOARD OR A BLACNKET CAN BE
USED TO PROTECT THE ACHINE AND
FLOORS.
8
A
1234567
D
C
B
C
A
D
B
5 3 16 248 7
8
A
1234567
D
C
B
C
A
D
B
5 3 16 248 7
AI DRAWINGS
SHEET 17 OF 40
REV
PROJECT:
DRAWN
UNLESS OTHERWISE NOTED
SURFACE ROUGHNESS PER ANSI B46.1
DIMENSIONING PER ASME Y14.5-2009
WELD SYMBOLS PER AWS A2.4
FINISH:
UOS 63RMS ON
MACHINED
SURFACES OR
AS PROCURED
.X
.XX
.XXX
ANGLE
EXPECTATIONS PROPRIETARY
THE INFORMATION CONTAINED HEREIN
IS PROPRIETARY TO EXPECTATIONS AND
SHALL NOT BE REPRODUCED IN WHOLE
OR IN PART OR USED FOR ANY PURPOSE
EXCEPT WHEN SUCH USER POSSESSES
DIRECT WRITTEN AUTHORIZATION
FROM EXPECTATIONS LLC
SCALE: NONE
SIZE:
D
A
TOLERANCES
UNLESS NOTED
=
.1
=
.03
=
.005
=
1
NICK SOLLER
FILLET RADII: .005-.010
CORNER BREAK: .005-.010
ALL DIMENSIONS IN INCHES
EXPECTATIONS LLC
BONNEY LAKE, WA 98391
DRAWING
LT7
STEP 16 - FLIP THE MACHINE ONTO ITS BACK.
USED CARBOARD OR A BLACNKET CAN BE
USED TO PROTECT THE ACHINE AND
FLOORS.
8
A
1234567
D
C
B
C
A
D
B
5 3 16 248 7
8
A
1234567
D
C
B
C
A
D
B
5 3 16 248 7
AI DRAWINGS
SHEET 17 OF 40
REV
PROJECT:
DRAWN
UNLESS OTHERWISE NOTED
SURFACE ROUGHNESS PER ANSI B46.1
DIMENSIONING PER ASME Y14.5-2009
WELD SYMBOLS PER AWS A2.4
FINISH:
UOS 63RMS ON
MACHINED
SURFACES OR
AS PROCURED
.X
.XX
.XXX
ANGLE
EXPECTATIONS PROPRIETARY
THE INFORMATION CONTAINED HEREIN
IS PROPRIETARY TO EXPECTATIONS AND
SHALL NOT BE REPRODUCED IN WHOLE
OR IN PART OR USED FOR ANY PURPOSE
EXCEPT WHEN SUCH USER POSSESSES
DIRECT WRITTEN AUTHORIZATION
FROM EXPECTATIONS LLC
SCALE: NONE
SIZE:
D
A
TOLERANCES
UNLESS NOTED
=
.1
=
.03
=
.005
=
1
NICK SOLLER
FILLET RADII: .005-.010
CORNER BREAK: .005-.010
ALL DIMENSIONS IN INCHES
EXPECTATIONS LLC
BONNEY LAKE, WA 98391
DRAWING
LT7
Figure 16 Figure 17
CAUTION
!
Use caution to avoid tipping and when
lifting heavy objects.
