Teka LP8 810 - Lp9 850; Lp9 840; Lp9 440

Service Manual
Service Manual: MSDW16012 - 21 -

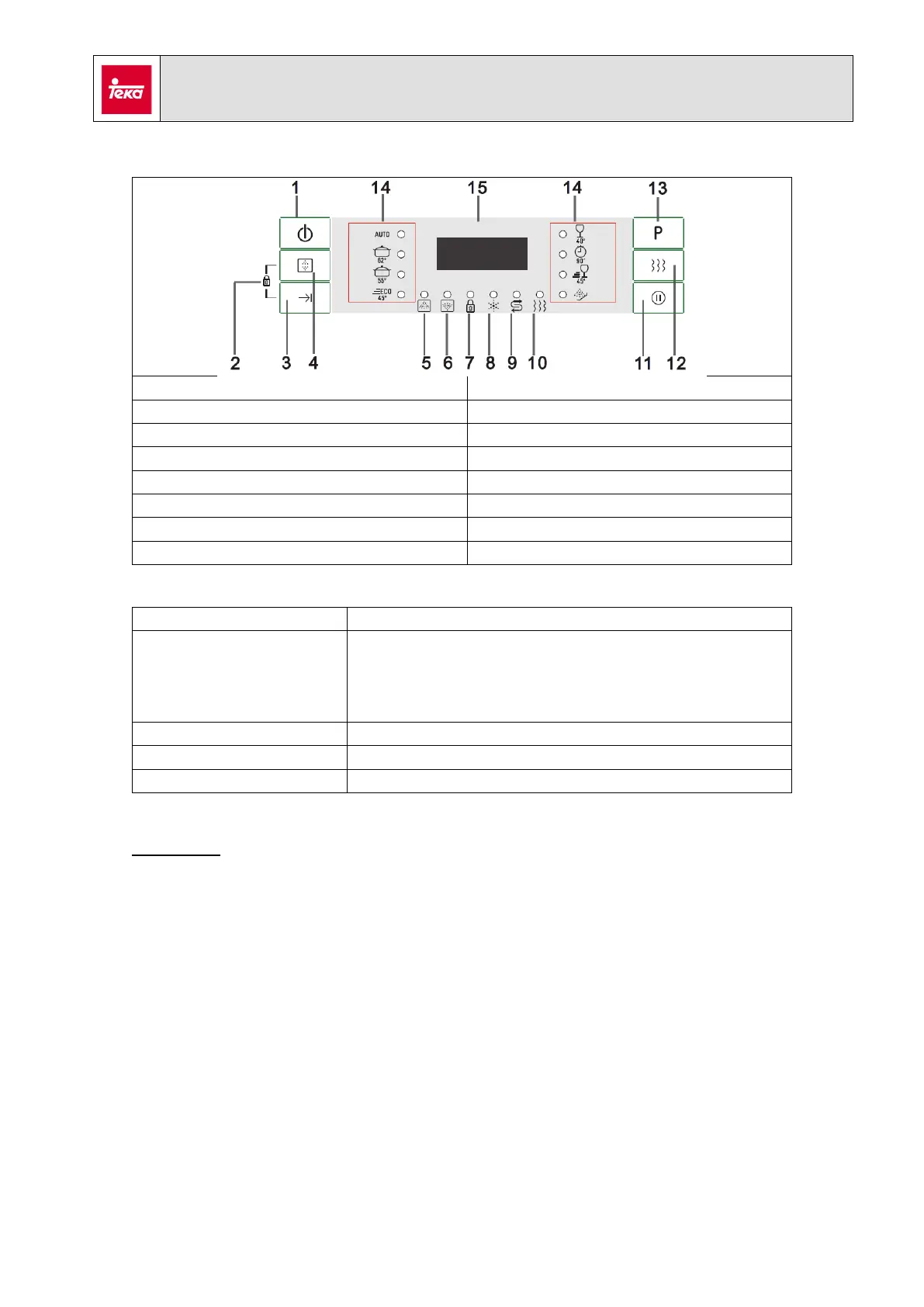

19. LP9 850 / LP9 840 / LP9 440
1. ON / OFF button
9. Salt indicator
2. Child lock. Push 3 & 4
10. Extra dry indicator.
3. Delay button
11. Start / Pause button
4. Alternate wash button
12. Extra dry button
5. Upper basket indicator
13. Program button
6. Lower basket indicator
14. Program indicators
7. Child lock indicator
15. Display
8. Rinse indicator
Wiring diagram:
See section 3
Optional Components:
Aquastop (inlet hose)
Alternate wash valve
Turbidity sensor (only LP9 850)
Dry fan (only LP9 850)
Hydraulic diagram:
See section 2
Error indication:
Display
Service Test
Follow the next steps to launch the test service:
- Connect the appliance to the power supply.
- Keep pressed the Start / Pause button [11]. The door must be open.
- Press and release ON/OFF button [1]. All leds from control panel start to blink.
- Once the door is closed, service test will start.
You can advance to the next step of the test by pressing the Start / Pause button [11],
except during water loading.
