11
128-01-2305
128-0621-003

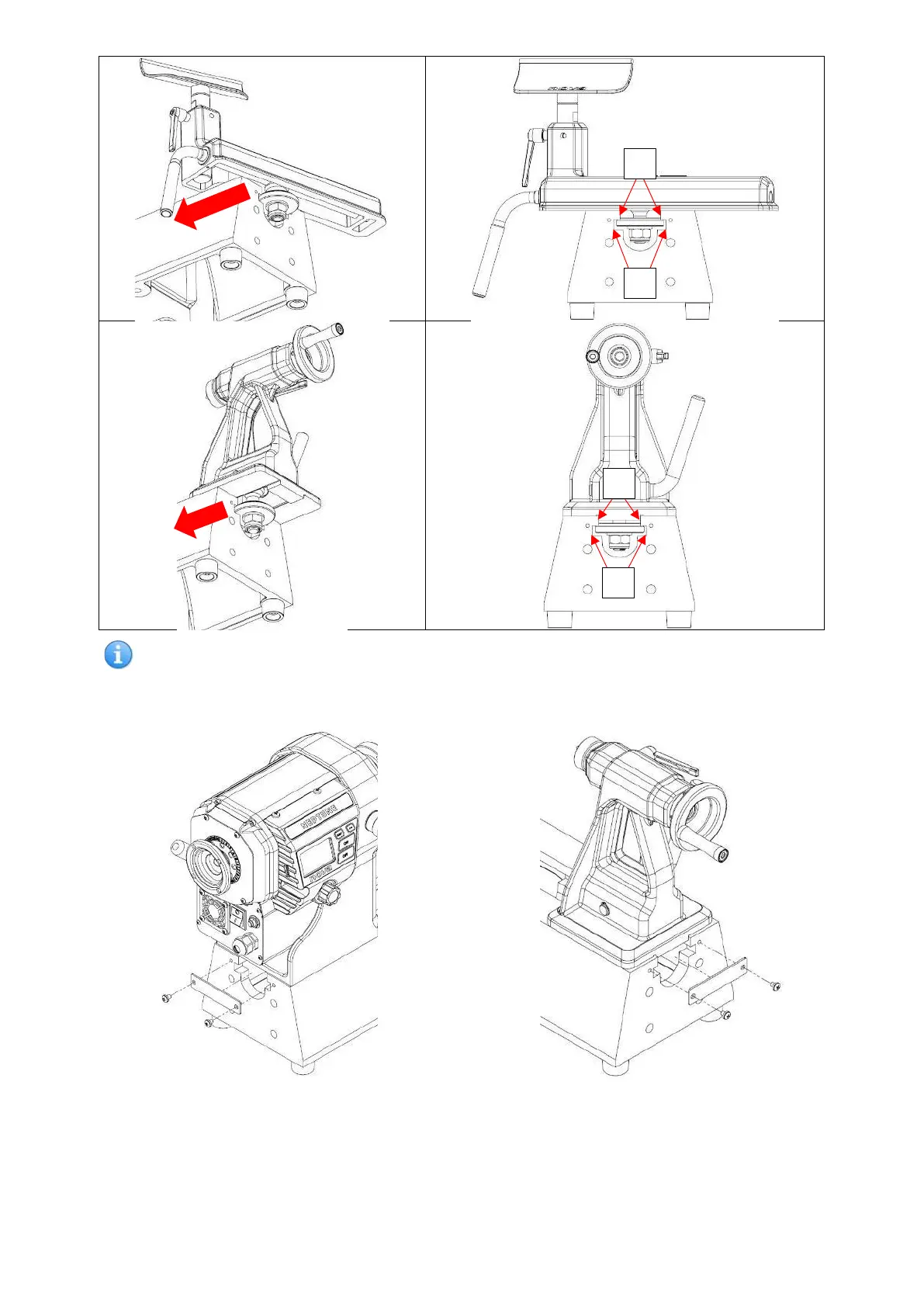

Note: Turn the lock handle to adjust the position of the lock plate if they cannot slide
onto the lathe bed section.
2. Replace stop plates on both ends of bed.
Screw end plate into bed to secure headstock onto bed
Screw end plate into bed to secure tailstock onto bed
B
A
B
A
