4.3 Positioning the Headstock on the Bed
The headstock uses a cam lock assembly for securing in place along the bed. To move the headstock:
1. To unlock the headstock, push the locking handle backwards or lock the headstock by pushing the handle
forwards.
2. When the headstock is unlocked, slide and swivel the headstock along the bed to the desired position.
3. Re-Lock the headstock firmly, ensure the headstock is secured before running the lathe.

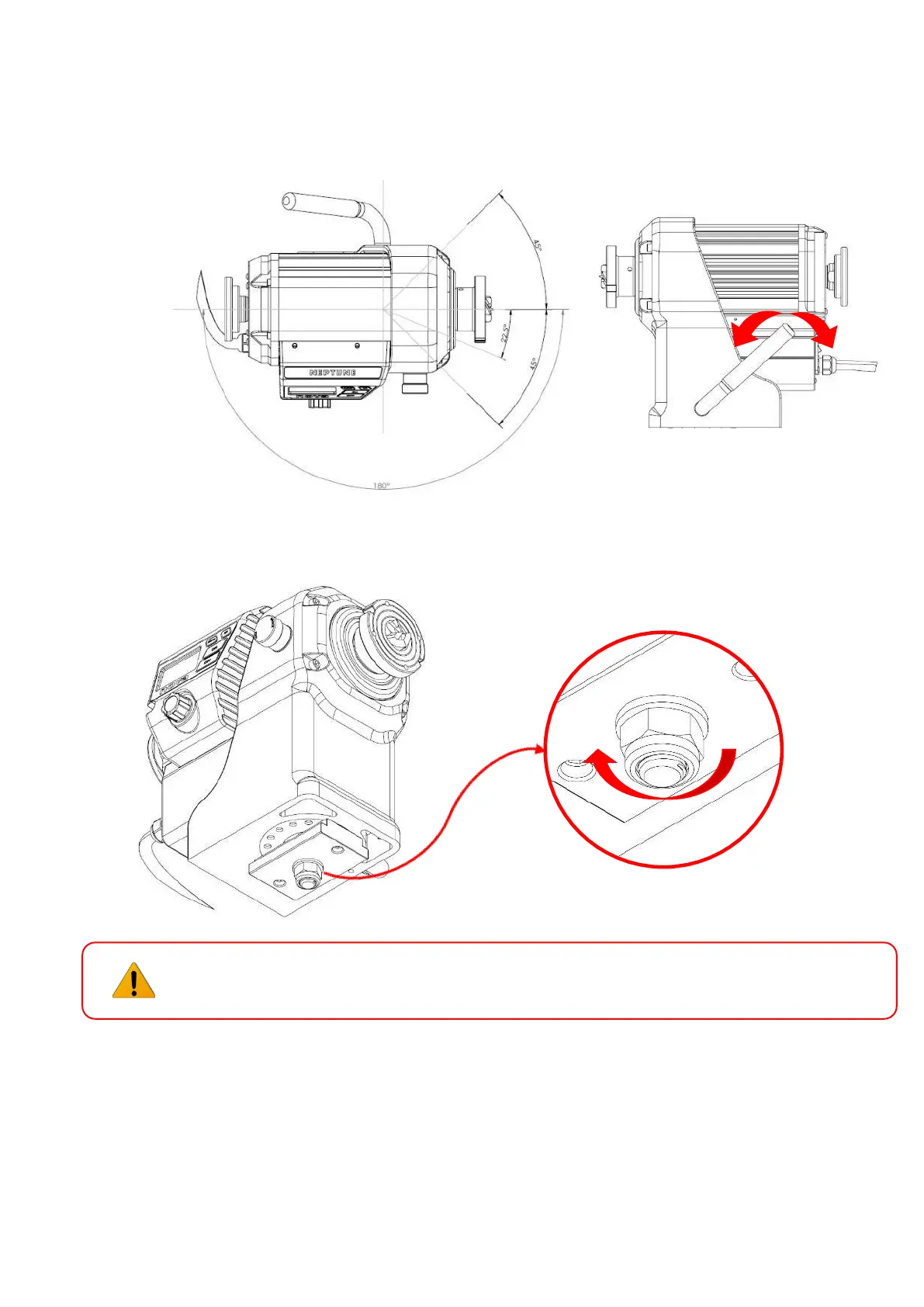

4. The locking force, orientation of the locking handle can be changed by adjusting the nut at the bottom of
the lock plate as illustrated.
WARNING! PINCH HAZARD – Remove hand from locking shaft when swivelling the
headstock.
