4.2.2 Assemble the Toolrest and Tailstock

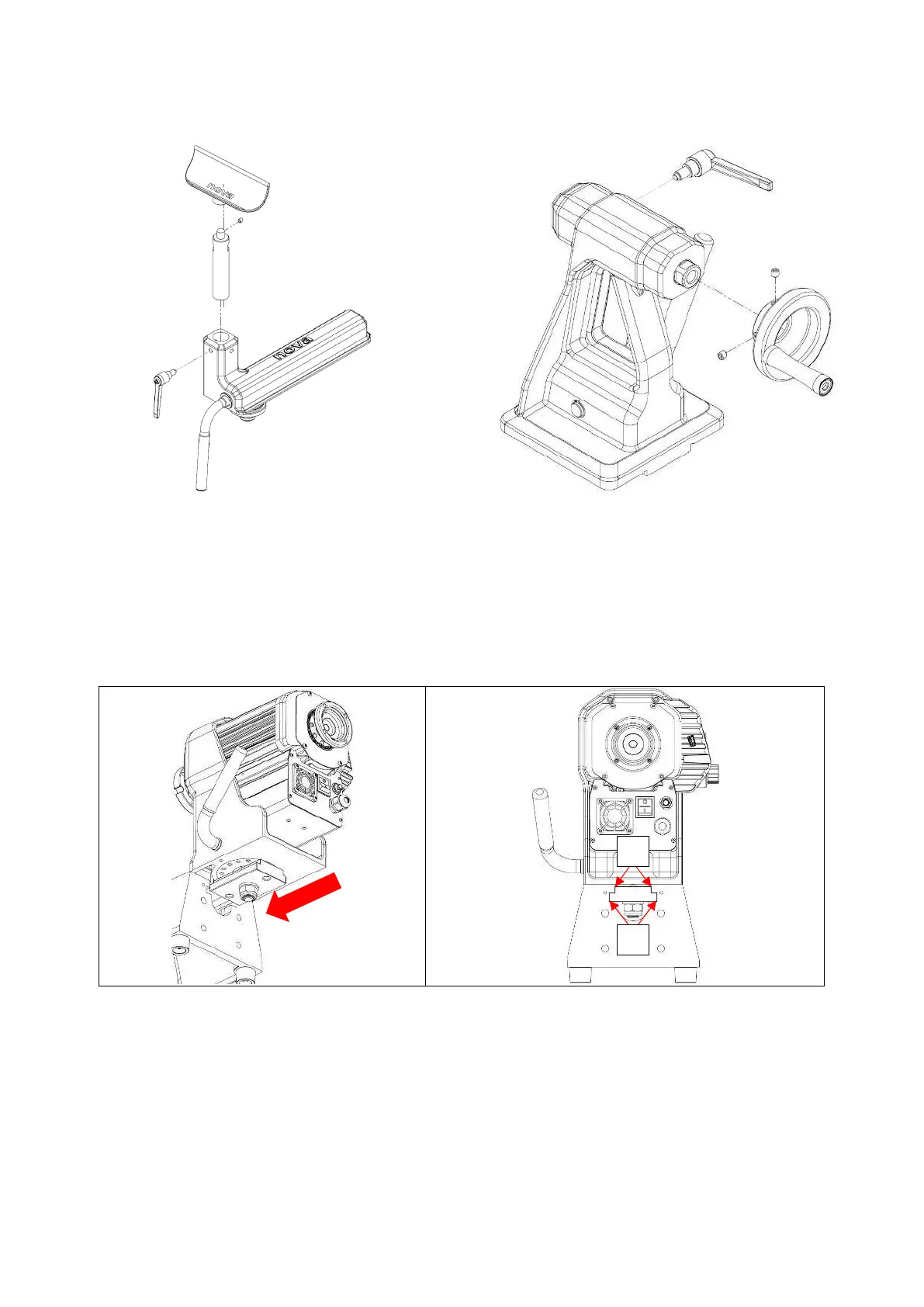

Assemble the Toolrest post
Assemble the tailstock
4.2.3 Mounting the Headstock, Toolrest and Tailstock onto the Bed
1. Slide headstock, Toolrest, and tailstock onto bed, ensuring lock plate (A) is correctly lined up with bed way
(B), as shown below:
A
B
