Technology Solutions
Instruction Manual
Tek-Flux 1400A
www.tek-trol.com
18

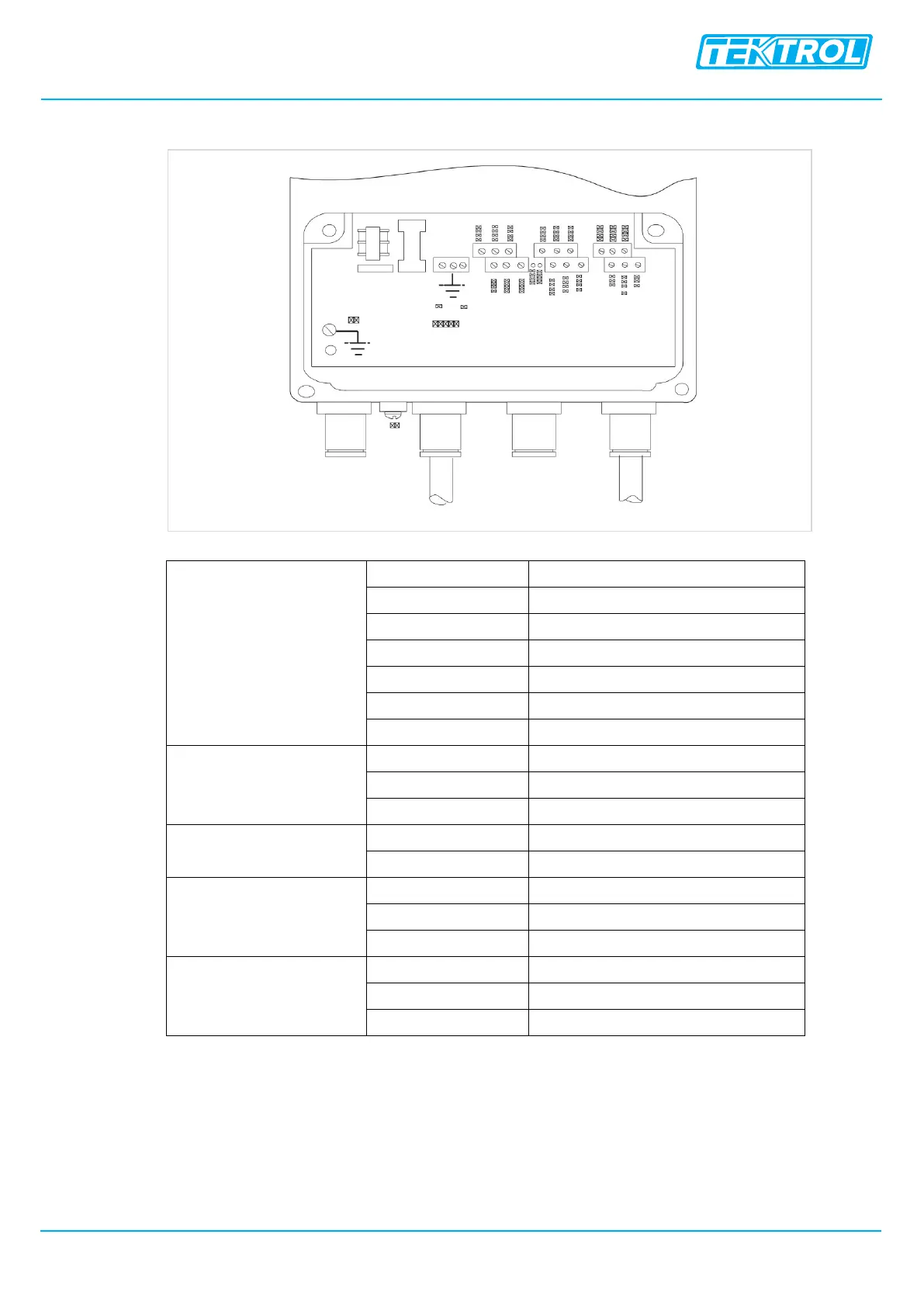

• Wiring for remote type transmitter
To the mounting sensor
SIG1
Signal1
SGND
Signal Ground
SIG2
Signal2
DS1
Shielded Exciting1
DS2
Shielded Exciting2
EXT+
Exciting Current+
EXT-
Exciting Current-
Analog Current Output
VDIN
Current Two lines 24V Spots
ICOUT
Analog Current Output
ICCOM
Analog Current Output Ground
Frequency (Pulse) Output
POUT
Flow Frequency (Pulse) Output
PCOM
Frequency (Pulse) Output Ground
Two Alarm Outputs
ALMH
Upper Limit Alarm Output
ALML
Low Limit Alarm Output
ALCOM
Alarm Output Ground
Communication Input
TRX+
Communication Input
TRX-
Communication Input
ALCOM
232 Communication Ground
